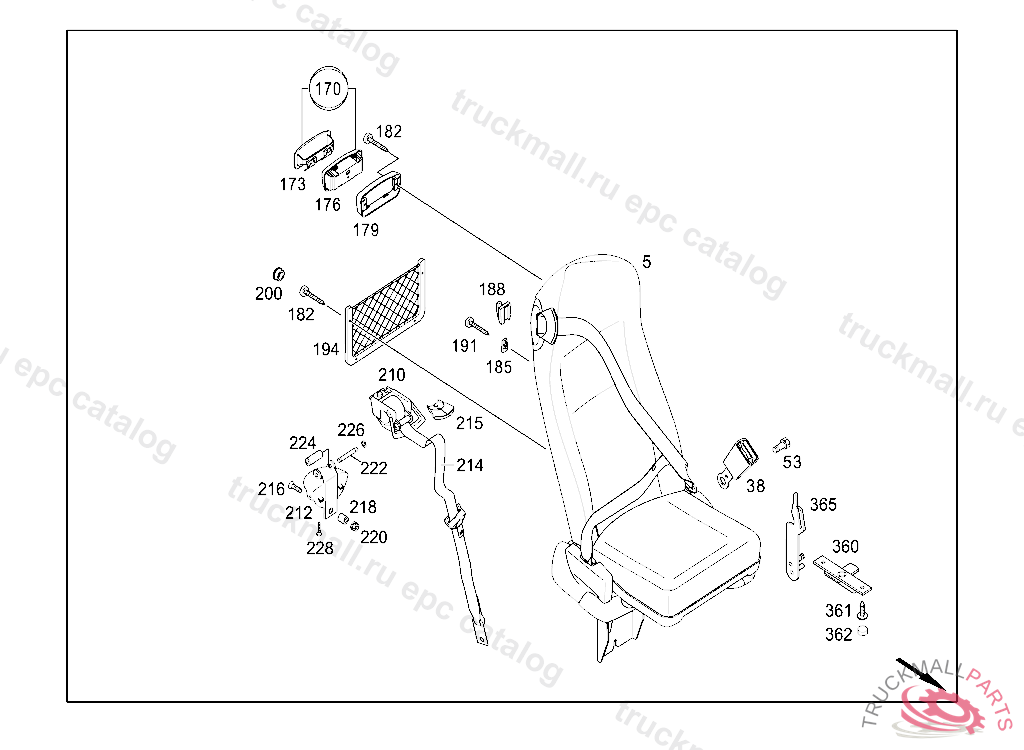

TRAVEGO L EURO 6 - 632.450 - 91 FRONT SEATS
Поз.
Артикул
Описание
5
FRONT SEAT CO-PILOT SEAT,GEAR SIDE
5
FRONT SEAT CO-PILOT SEAT,WALL SIDE
38
FASTENER
53
SCREWM 10 X 14
170
ASHTRAY
173
COVER
176
HOUSING
179
FRAME
182
SCREW2,9X17,5MM
185
BRACKET
188
CLOTHES-HOOK
191
TAPPING SCREW3,5X16MM
194
LUGGAGE NET
200
CAP
210
SIDE MEMBER
212
SUPPORT
214
SAFETY BELT RIGHT
214
SEAT BELT RIGHT
215
GUIDE RAIL
216
SCREW W HEXAGON SOCKETM 8 X 16
218
BUSHING
220
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
222
PIN
224
BUSHING
226
WASHER
228
TAPPING SCREW LIGHT SWITCH 4.8X32
360
LOCK
361
SHEET METAL SCREW. SCREWST25X 6 T20
362
LOCKING CAP
365
LEVER
