Поз.
Артикул
Описание

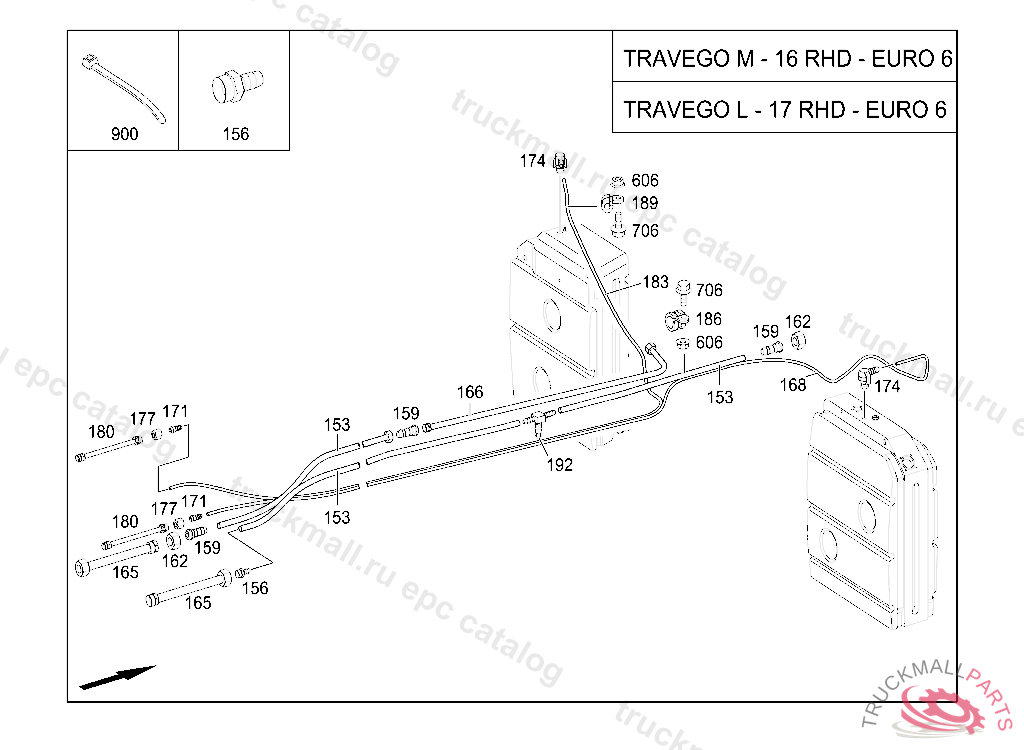

153
FUEL LINE15X1.5, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
156
CONNECTOR
159
FITTING FUEL LINES
162
NUT
165
FUEL LINE
166
FUEL LINE
168
FUEL LINE8X1, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
171
FITTING RETURN LINE
174
PLUG CONNECTION8X1, AS OF PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS)01.02.2010
177
NUTBL 8
180
FUEL LINE
183
FUEL LINE8X1, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
186
MOUNTING CLAMP SUCTION/DELIVERY/RETURN LINES 15/15 MM
189
CLAMP LINE MOUNTING 8/15
192
T-FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION 12 MM / 12 MM / 6 MM
606
NUT , Replaced By: N913023006001
706
SCREW BRACKET AND CLAMP M6X20
900
CABLE TIE , Replaced By: A0049971890
