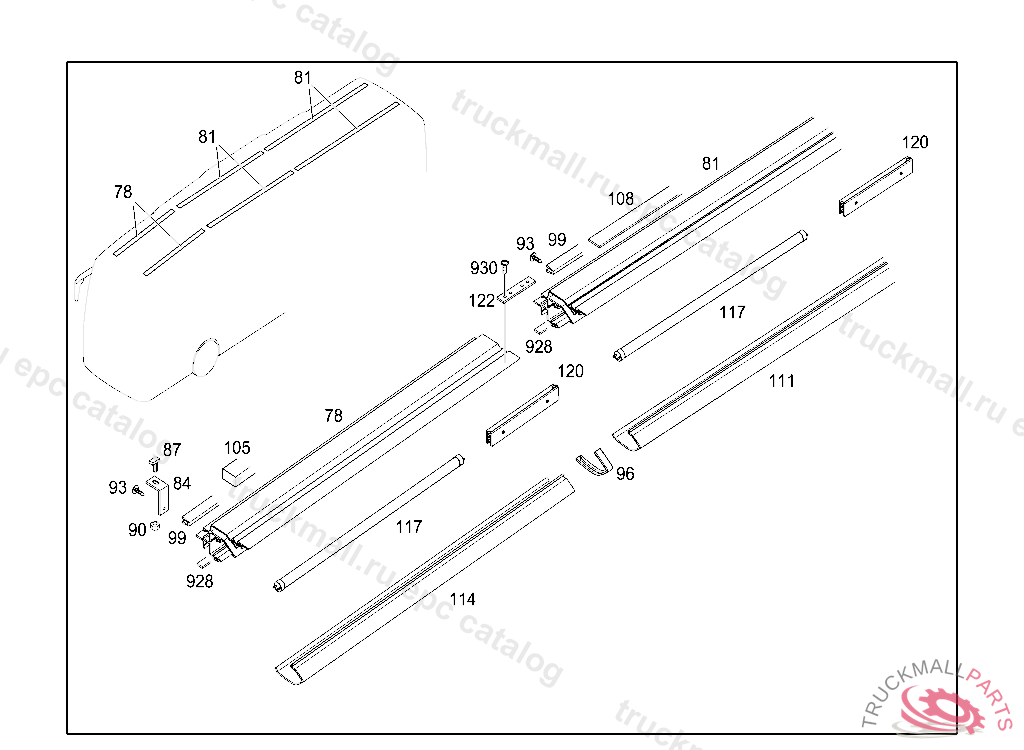

Поз.
Артикул
Описание
78
PANELLING FRONT RIGHT 1583,4MM
78
PANELLING FRONT LEFT 1583,4MM
81
HEADLINER REAR RIGHT 5815MM
81
HEADLINER REAR LEFT 5815MM
81
HEADLINER CENTRAL LEFT 4475MM
81
HEADLINER CENTRAL RIGHT 4475MM
84
ANGLE
87
SCREW F CRANKCASEM8X30
90
NUT HORN TO BRACKET M8
93
HEXALOBULAR BOLT SPLASH GUARD M6X16,V 207570
96
COVERING
99
RAIL
105
INSULATION FRONT
108
SEALING TAPE20X6MM/1500LG, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
111
COVER REAR RIGHT
111
COVER LEFT REAR
114
COVER FRONT LEFT
114
COVER FRONT RIGHT
117
FLUORESCENT TUBE YELLOW 28W,1149MM,WARM-WHITE
117
FLUORESCENT TUBE YELLOW 35W,1449MM,WARM-WHITE
120
SERIES REACTOR35W
120
SERIES REACTOR28W
122
PAD15X70MM
928
PLASTIC SECTION , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
928
SEALING STRIP , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
930
RIVET LOCKING LEVER TO BATTERY/APPARATUS SUPPORT
