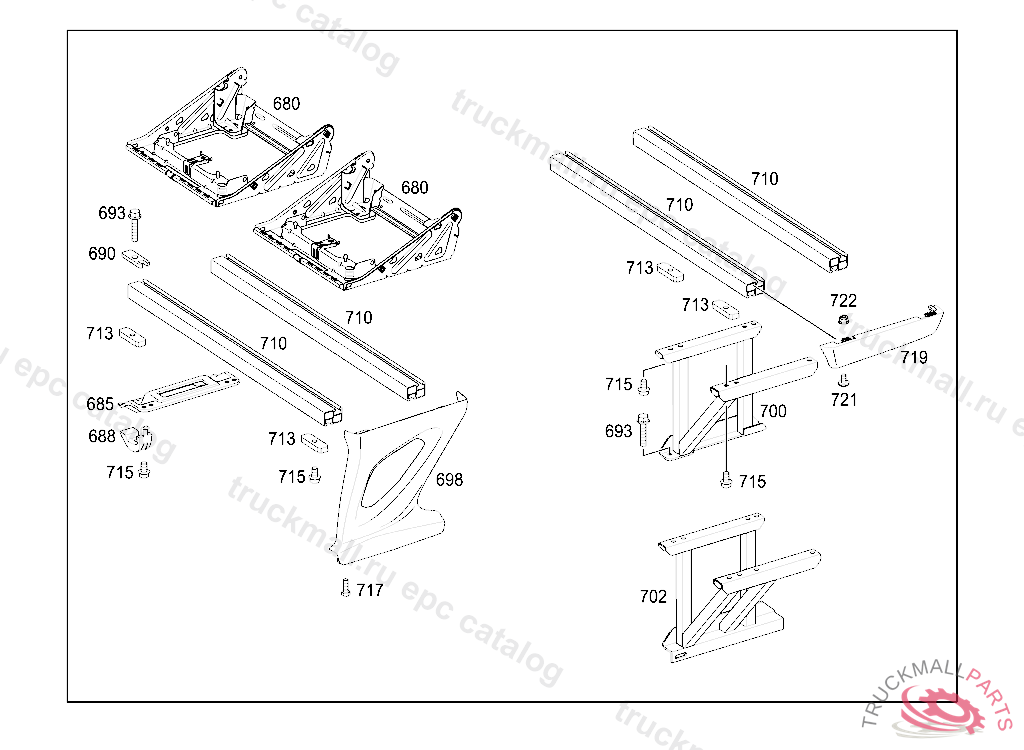

TRAVEGO L EURO 6 - 632.450 - 95 MULTIBLE OCCUPANCY SEAT
Поз.
Артикул
Описание
680
SEAT FRAME UPPER PART
685
CONSOLE
685
CONSOLE
685
CONSOLE LEFT
688
ATTACHMENT ANGLE BRACKET
688
ATTACHMENT ANGLE BRACKET
690
REINFORCEMENT PLATE
693
HEXAGON HEAD BOLT CONSOLE TO REAR CROSS MEMBER AND TO FRAME SIDE MEMBERS M 10X40
698
SEAT BASE RIGHT
698
SEAT BASE LEFT
698
SEAT BASE LEFT
698
SEAT BASE RIGHT
700
SEAT BASE SEAT FRAME,RIGHT AHEAD OF REAR
700
SEAT BASE SEAT FRAME,LEFT AHEAD OF REAR
702
SEAT BASE SEAT FRAME,LEFT AHEAD OF REAR 40MM
710
SUPPORTING TUBE
710
SUPPORTING TUBE
713
GUIDE PLATE
715
SCREWM 10 X 14
717
SCREW PIPE CLAMP
719
EDGE PROTECTION
719
EDGE PROTECTION LEFT
721
HEXALOBULAR BOLT ENGINE REAR MOUNTING, AT FRAME M8X12
721
SCREW FOR T-CHANNELM8X20
722
NUT HORN TO BRACKET M8
