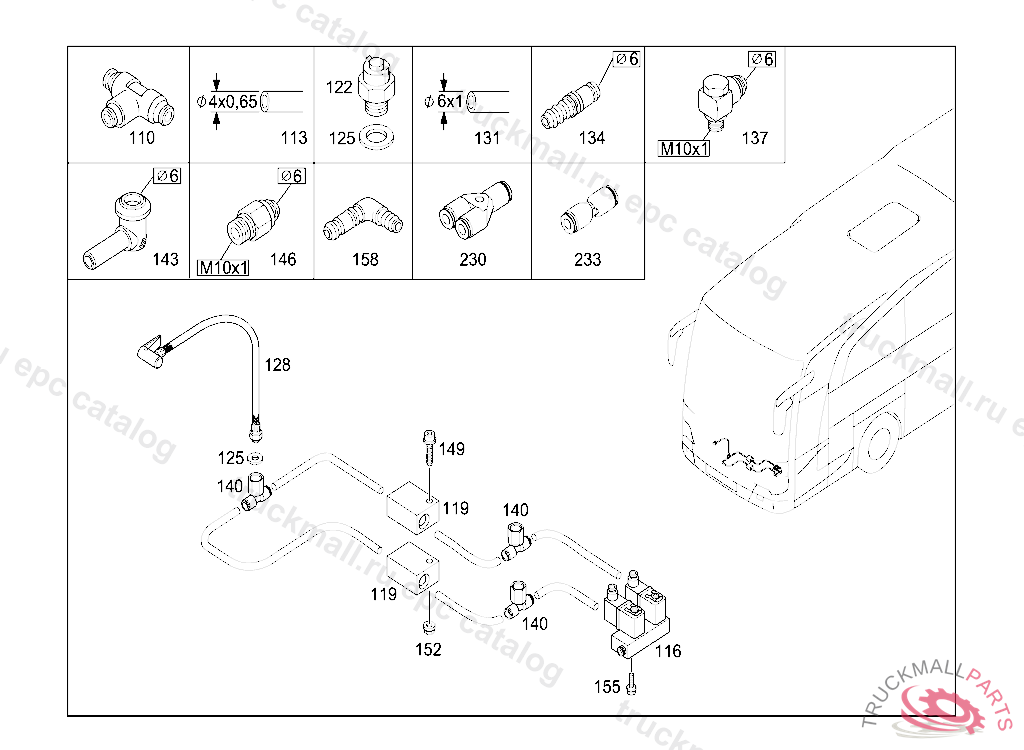

TRAVEGO L EURO 6 - 632.450 - 75 OUTSIDE FLAPS
Поз.
Артикул
Описание
110
T-FITTING
113
PLASTIC PIPE4X0,65MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
116
VALVE
119
VALVE SHUTTLE VALVE
122
SWITCH3 BAR
125
SEAL RING
128
LINE
131
PLASTIC PIPE RISING PIPE 4X6 MM
134
CONNECTION PIECE COMPRESSED-AIR-LINE PLUG-CONNECTION TO M16, 4MM, VOSS 232
137
FITTING
140
COUPLING
143
ELBOW FITTING
146
FITTINGM 10 X 1
149
SCREWM 4 X 50
152
NUT-AND-WASHER ASSEMBLY. NUTM4
155
HEXAGON HEAD BOLT
158
ELBOW FITTING CONNECTION OF COMPRESSED AIR LINES TO M 16 / 4 MM ,VOSS 232,KAN 33/00 AS OF PRODUCTION BREAKPOINT DATE 01.01.2004
230
PIPE BRANCHING Y-PIECE
233
QUICK CONNECTOR
