Mercedes N910105010002 - Болт м10х35

INTEGRO 633.001

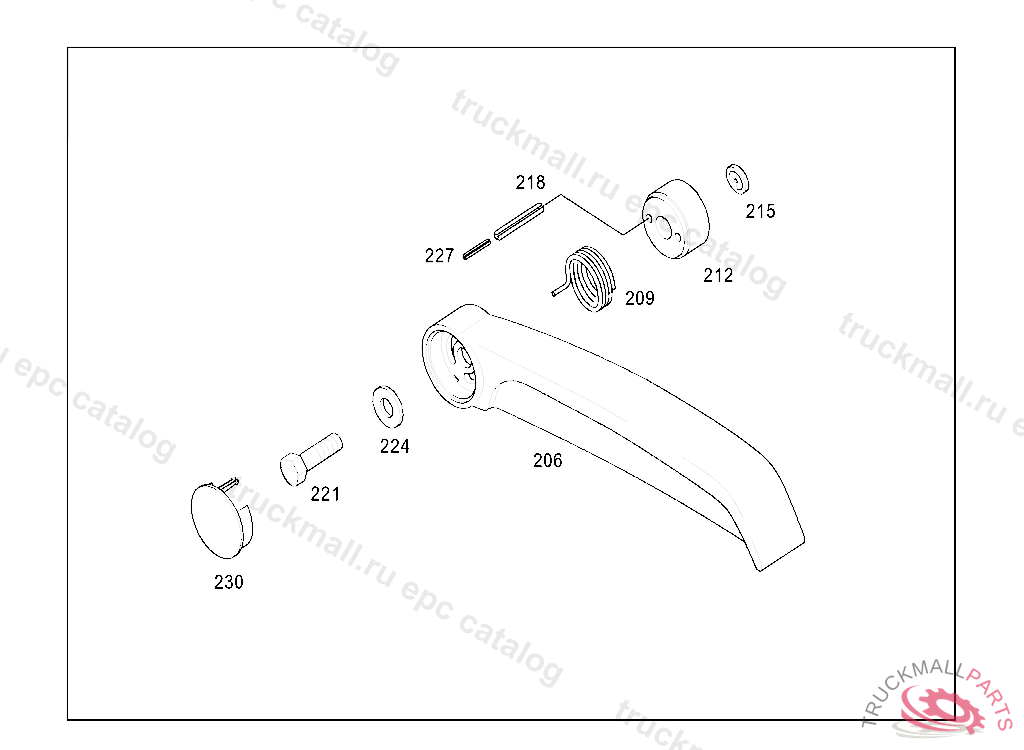

83 HEATING AND VENTILATION - 092 AIR CONDITIONER MAKE KONVEKTA IL. 1

Поз.
Артикул
Описание
206
A6299701201
ARMREST
209
A6299930420
SPRING ARMREST ON THE RIGHT
209
A6299930320
SPRING ARMREST ON THE LEFT
212
A6299730305
SPACER
215
N912010010000
LOCK PLATE. CIRCLIP SENSOR CABLE TO PROTECTIVE PLATE
218
N000000002868
ROLL PIN
221
N910105010002
HEXAGON HEAD BOLT. SCREW BRACKET TO TRANSMISSION M 10X50
224
N000000003386
WASHER P.T.O. TO TRANSMISSION
227
N001481003504
CLAMPING SLEEVE FOLLOWER TO SHIFTING SHAFT
230
A6299730228
CAP LEFT AND RIGHT, NO.7365I.......I.......I.......I.......I....... I
