Поз.
Артикул
Описание

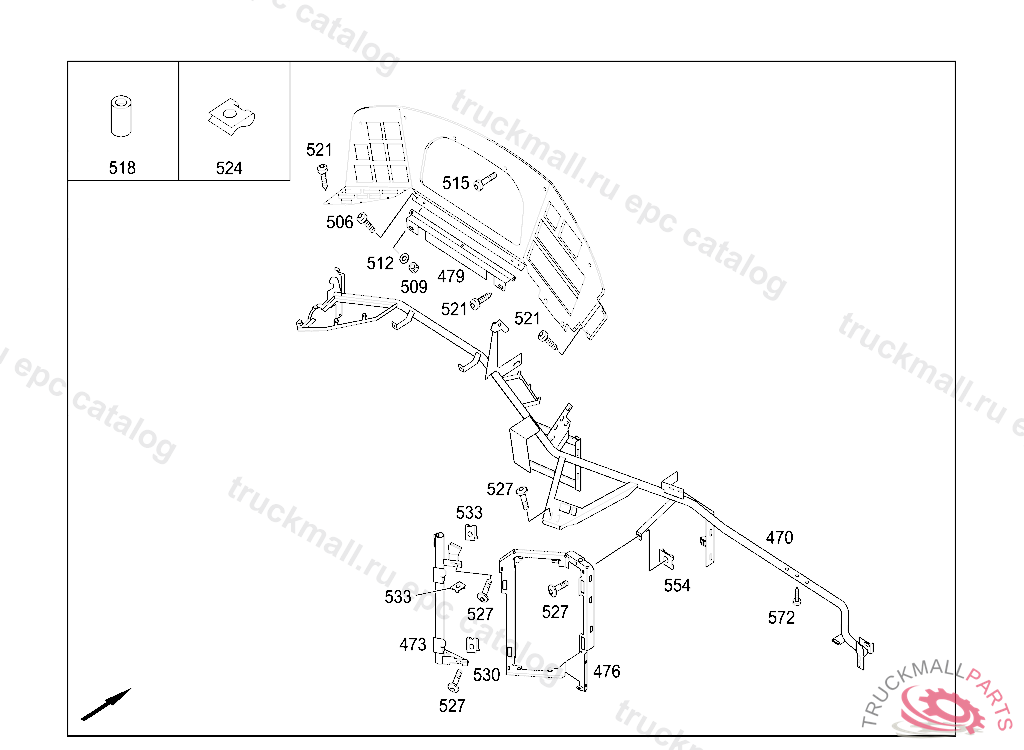

470
SUPPORT
473
BRACKET
476
CONSOLE
479
ANGLE
506
CAPSCREW W HEXAL. DRIVEM5X20
509
NUT , Replaced By: N304032005005
512
WASHER BRACKET TO BATTERY CASE BRACKET
515
HEXALOBULAR BOLT PLUG SOCKET TO REAR CROSS MEMBER
518
SPACER BUSH15X9X11LG.
521
TAPPING SCREW BRACKET MOUNTING 4.8X19
524
LOCK NUT CENTER REINFORCEMENT TO HOUSING CENTER CONSOLE 4.8/0.5-2.5 MM
524
CLOP NUT4,8MM/2,5-5,0MM
527
HEXALOBULAR BOLT BASIC MODULE AT SUPPORT M6X16,01.08.08
530
LOCK NUT. SPRING NUT MOUNTING PARTS
533
SPRING NUTM6
554
CAGE NUTM 6
572
TAPPING SCREW BRACKET TO PLATE 4.8X38
999
PANELLING LEFT
999
PANELLING RIGHT
999
TAPPING SCREW HANDLE TO PANELLING
999
TAPPING SCREW2.9X16
