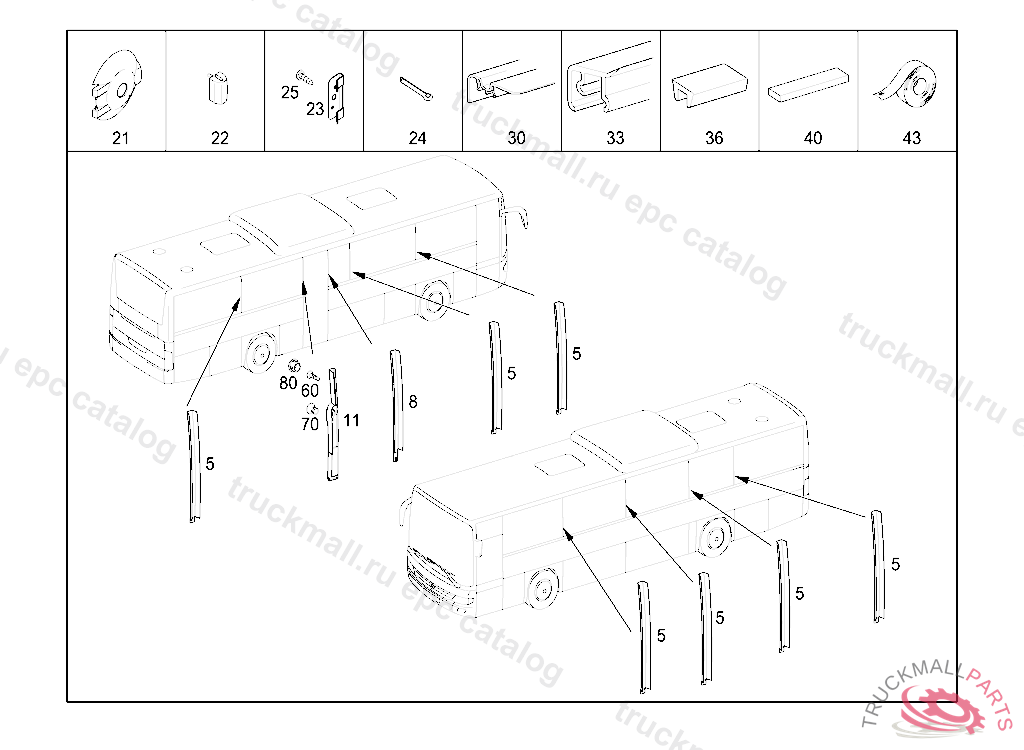

INTEGRO - 633.001 - 69 COVERING AND LINING
Поз.
Артикул
Описание
5
PANELLING WINDOW PILLAR
5
PANELLING WINDOW PILLAR
8
PANELLING WINDOW PILLAR
8
PANELLING WINDOW PILLAR
11
PANELLING WINDOW PILLAR
11
PANELLING WINDOW PILLAR
21
COVER
22
MOUNTING
23
SPRING
24
COTTER PIN ROD TO INTERMEDIATE LEVER
25
TAPPING SCREW BRACKET MOUNTING
30
COVERING FRONT AND REAR DOORS, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
33
COVERING WINDOW SILL,INSIDE, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
36
INSERT
40
MOUNTING STRIP80X20X6MM
43
ADHESIVE TAPE1,6X50MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
60
TAPPING SCREW3.5X19
70
HEXAL. SOCKET CSK. BOLTM6X10 TX30
80
LOCKING CAP
999
