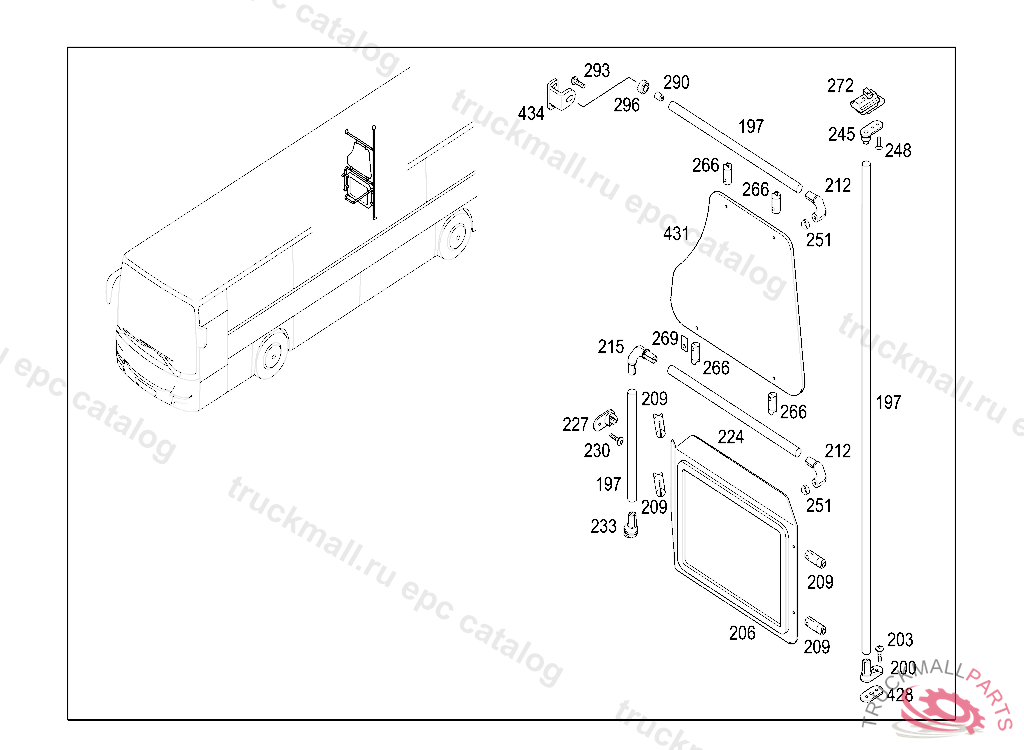

INTEGRO - 633.001 - 71 PARTITION PANEL
Поз.
Артикул
Описание
197
TUBE EVO GRAY 3,34X2, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY STATE COLOR NUMBER WHEN ORDERING
197
GRIP RAIL EVO GRAY 1,34X2, ORDER BY THE METER STATE COLOR NUMBER WHEN ORDERING TO BE ADAPTED DURING ASSEMBLY
197
GRAB RAIL34X2, ORDER BY THE METER STATE COLOR NUMBER WHEN ORDERING TO BE ADAPTED DURING ASSEMBLY
197
TUBERAL1023, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY STATE COLOR NUMBER WHEN ORDERING
200
CONNECTION
203
SCREWM8X40
206
PARTITION PANEL
206
PARTITION PANEL
206
PARTITION PANEL
206
PARTITION PANEL
209
CONNECTION
212
CONNECTIONGR90
215
CONNECTION
224
METAL SECTION35X2,5
227
CONNECTION
230
SCREW W SOCKET DRIVEM6X25 T30
233
CONNECTION
245
CONNECTION EVO GRAY 3
248
SCREWM8X16
248
SCREW
251
SPACER ELEMENT
251
CONNECTION
266
CONNECTION
269
PAD
272
CONNECTION
290
CONNECTION
293
SCREWM 8X22, T40
296
CONNECTION
428
PLATE
431
WASHER
434
BRACKET
999
SPACER TUBE
999
CLIP
