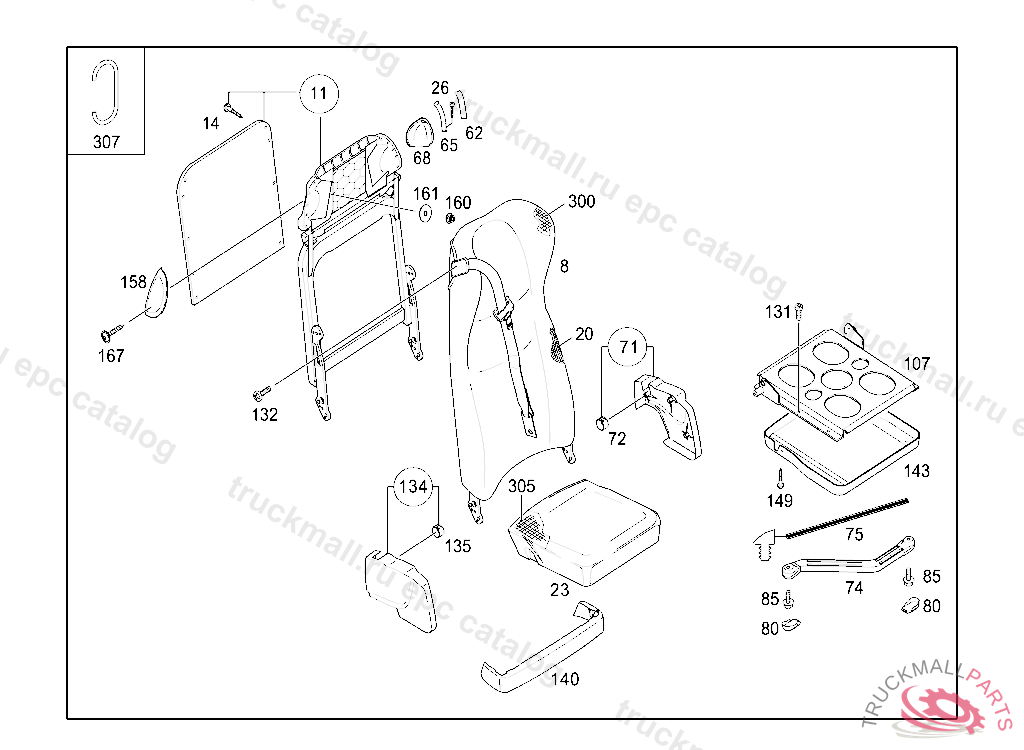

Поз.
Артикул
Описание
8
BACKREST
11
BACKREST FRAME
14
SCREW
20
PAD
23
SEAT ADAPTER
26
SCREW ASHTRAY MOUNTING
62
CAP LEFT,EVO GRAY
65
HANDLE LEFT
68
SHELL TYPE HANDLE LEFT
71
COVERING LEFT
72
SPRING
74
HANDLE
74
LEVER
75
INSERT , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
80
COVERING
85
SCREW BRACKET TO CAB REAR PANEL M 8X20
107
CUSHION FRAME
107
CUSHION FRAME , Replaced By: A6329100122
131
SCREW BRACKET AND CLAMP M6X20
131
SCREW BRACKET TO CAB REAR PANEL M 8X20
132
SCREW W SOCKET DRIVEM6X25 T30
134
COVERING RIGHT
134
COVERING RIGHT
135
SPRING
140
COVERING
140
COVERING
143
COVERING , TO BE ADAPTED DURING ASSEMBLY
143
COVERING , TO BE ADAPTED DURING ASSEMBLY
149
TAPPING SCREW3.5X16
158
COVERING RIGHT
167
TAPPING SCREW LIGHT SWITCH 4.8X32
300
BACKREST COVER FOR CLIMATE-CONTROLLED SEAT, DETERMINE COVER FABRIC VIA VEDOC "NFC 5117"
300
BACKREST COVER LEATHER TRIM
300
COVER BACKSEAT, COVER LIKE PASSENGER SEAT, DETERMINE COVER FABRIC VIA VEDOC "NFC 5117"
300
COVER BACKREST, COVER LIKE DRIVER SEAT (RECARO), DETERMINE COVER FABRIC VIA VEDOC "NFC 5117"
305
COVER SEAT CUSHION, COVER LIKE PASSENGER SEAT, DETERMINE COVER FABRIC VIA VEDOC "NFC 5117"
305
CUSHION COVER SEAT FOR CLIMATE-CONTROLLED SEAT, DETERMINE COVER FABRIC VIA VEDOC "NFC 5117"
305
COVER SEAT CUSHION, COVER LIKE DRIVER SEAT (RECARO), DETERMINE COVER FABRIC VIA VEDOC "NFC 5117"
307
CLIP
