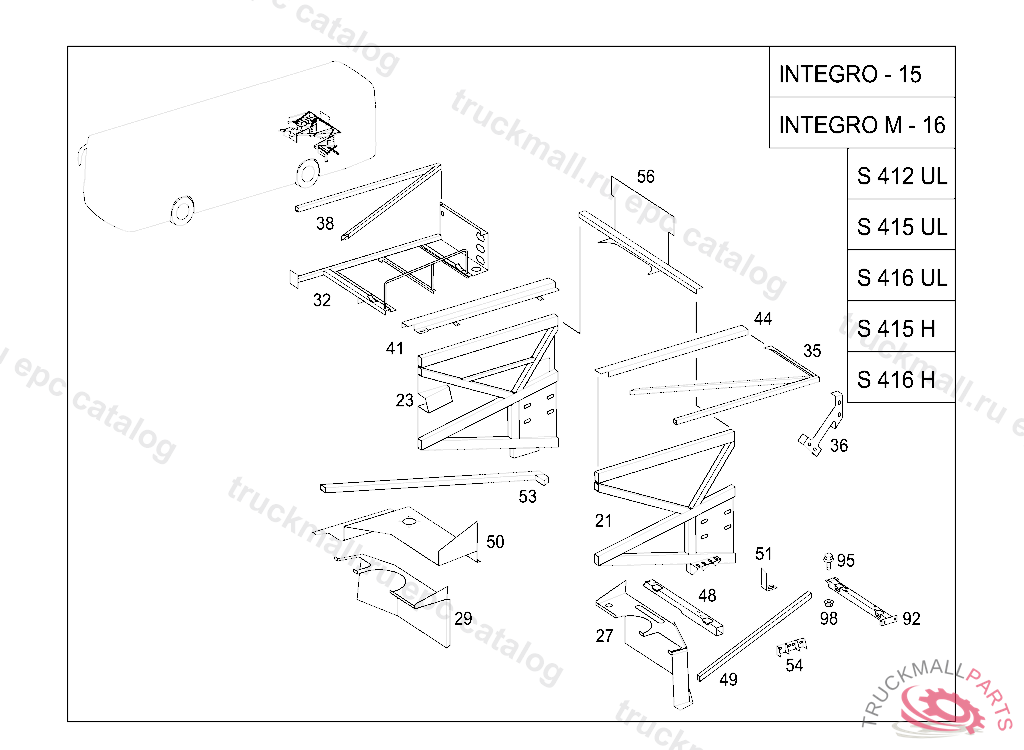

Поз.
Артикул
Описание
21
SUPPORT LEFT,102755103483
21
SIDE MEMBER LEFT,103641
23
SUPPORT RIGHT
27
COVERING LEFT,102755103483
27
COVERING LEFT,103484
27
COVER LEFT
27
COVERING LEFT
29
COVER RIGHT
29
COVERING RIGHT
32
SUPPORT
32
SUPPORT
35
SIDE MEMBER. SUPPORT LEFT
36
BRACKET ON THE LEFT BEHIND REAR AXLE
38
SIDE MEMBER
38
SIDE MEMBER
41
SIDE MEMBER RIGHT
44
SIDE MEMBER LEFT
48
CONSOLE , FROM IDENT NO. 103178 EXCEPT FOR 103192
49
DIAGONAL MEMBER ON THE LEFT BEHIND REAR AXLE, Replaced By: A6336131802
49
DIAGONAL MEMBER ON THE LEFT BEHIND REAR AXLE
50
CONSOLE
51
BRACKET
53
SUPPORT
54
CONSOLE ,102755
56
GUSSET PLATE
92
CONSOLE
95
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
98
NUT , Replaced By: N913023010002
