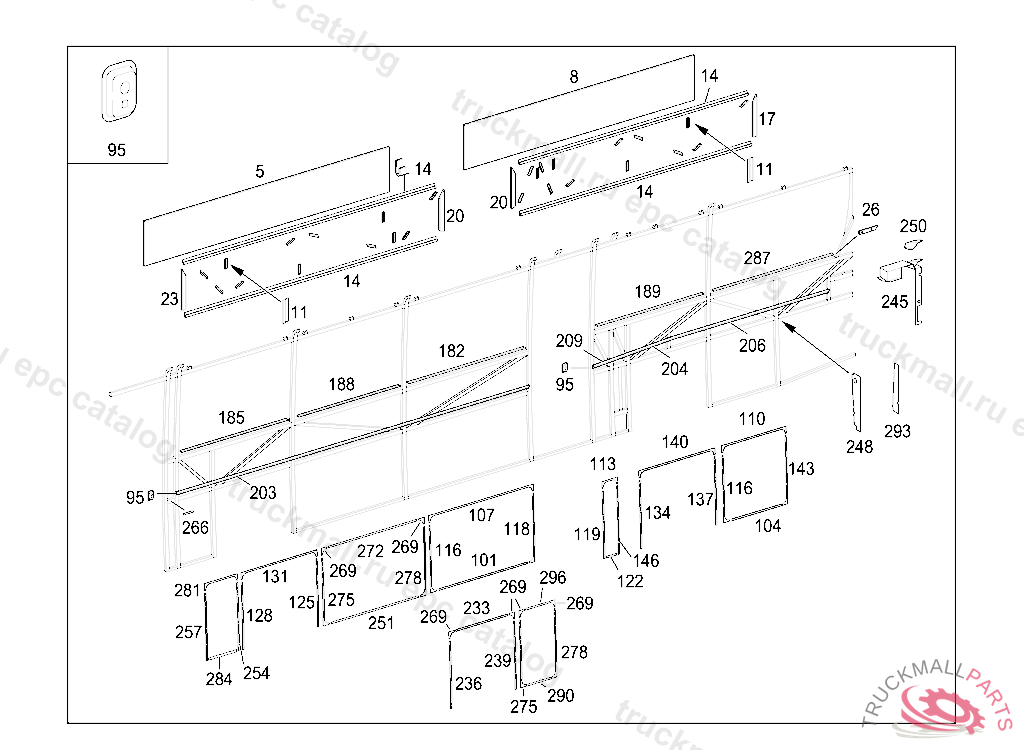

INTEGRO M - 633.002 - 63 SIDE PANELS
Поз.
Артикул
Описание
5
PANELLING5675MM
5
PANELLING SIDE PANEL,FRONT RIGHT 6155MM
8
PANELLING SIDE PANEL,REAR RIGHT 4445MM
11
BRACKET150LG
14
RAIL
17
PAD
20
PAD
23
PAD591MM
26
PAD
95
RECESS
101
ANGLE1564MM
101
ANGLE1474MM
104
ANGLE BOTTOM 1054LG
107
ANGLE1564MM
107
ANGLE2044MM
110
ANGLE TOP 1054MM
113
ANGLE280MM
116
ANGLE LATERAL 836LG
118
ANGLE LATERAL 835LG
119
ANGLE LATERAL 823LG
122
ANGLE BOTTOM 284LG
125
ANGLE LATERAL
128
ANGLE
131
ANGLE1268MM
134
ANGLE
137
ANGLE
140
ANGLE1260MM
143
ANGLE LATERAL 836LG
146
ANGLE LATERAL 823LG
182
BINDING RAIL1560MM
182
ANGLE2040MM
185
ANGLE
188
ANGLE1740MM
189
ANGLE1930LG
203
RAIL6010MM
203
RAIL5530MM
204
RAILLG1241, Replaced By: A6336322322
204
MOUNTING RAILLG1241
206
RAIL2540MM
209
RAILLG100, Replaced By: A6336322422
209
MOUNTING RAILLG100
233
ANGLE908MM
236
ANGLE
236
ANGLE
239
ANGLE
239
ANGLE
245
PANELLING
248
ANGLE
250
251
ANGLE
254
ANGLE LATERAL 823LG
254
ANGLE LATERAL 836LG
257
ANGLE LATERAL 836LG
257
ANGLE LATERAL 823LG
266
ANGLE78MM
269
REINFORCEMENT
272
ANGLE1598MM
275
ANGLE
278
ANGLE
281
ANGLE
281
ANGLE529MM
284
ANGLE BOTTOM 524LG
287
290
ANGLE
293
ANGLE
296
ATTACHMENT ANGLE BRACKET460MM
