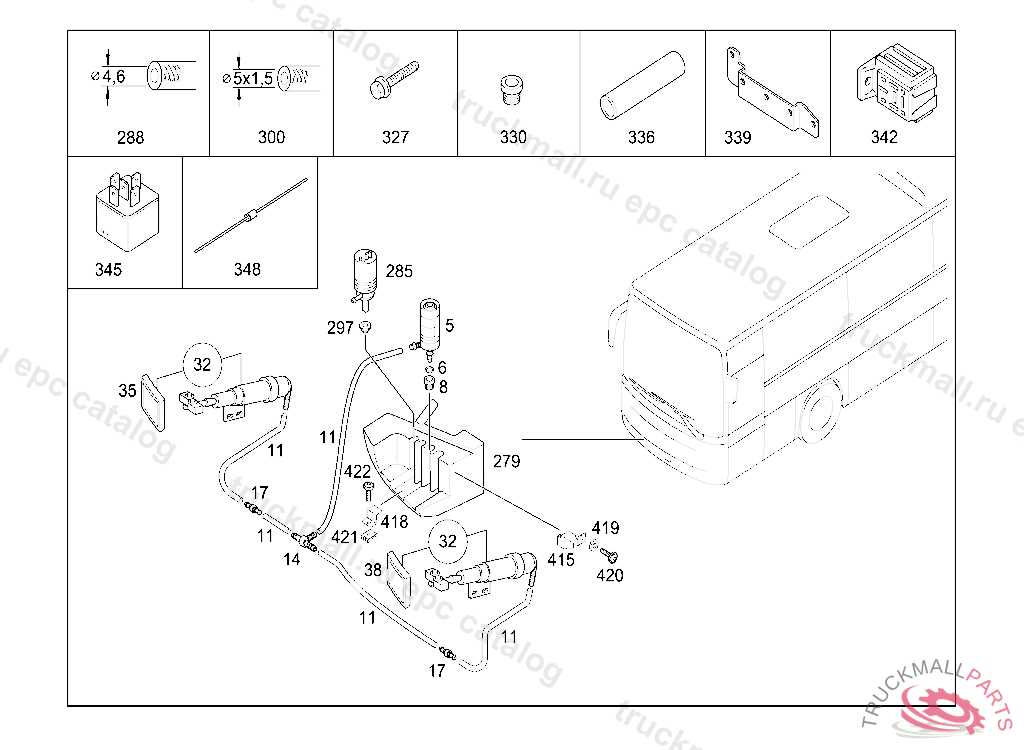

Поз.
Артикул
Описание
5
PUMP HEADLAMP WIPER/WASHER
8
GROMMET
11
HOSE ASSEMBLY. HOSE8X2, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
14
DISTRIBUTOR WASHER PUMP
17
VALVE , Replaced By: A0009970207
17
VALVE
32
WIPER SYSTEM HEADLAMP
35
CAP RIGHT
38
CAP LEFT
279
RESERVOIR22 L
285
CENTRIFUGAL PUMP , AS OF PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS)01.12.2008
285
PUMP PANE WASHER SYSTEM
288
HOSE FROM RIGHT NOZZLE TO CHECK VALVE 900 MM
297
SEAL PUMP TO RESERVOIR
300
HOSE PANE WASHER 5X1.5MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
327
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
330
GROMMET
330
GROMMET
336
INSULATING HOSE (ORDER BY THE METER)
339
BRACKET
342
PLUG-IN BASE 9-POLE
345
RELAY REARVIEW MIRROR HEATING 24 V / 20 A , 32 K 06
348
DIODE1 A / 1000 V
415
BRACKET WATER RESERVOIR
415
BRACKET WINDSHIELD WASHER RESERVOIR MOUNTING
418
BRACKET WATER RESERVOIR
418
BRACKET WINDSHIELD WASHER RESERVOIR MOUNTING
419
WASHER BRACKET TO CAB REAR PANEL
420
HEXALOBULAR BOLT. SCREW SUPPORT WITH HANDBRAKE VALVE ON SEAT FRAME M 8X16
421
SPRING-THREAD NUT PROTECTIVE PLATE
422
HEXALOBULAR BOLT AIR CLEANER TO BRACKET
