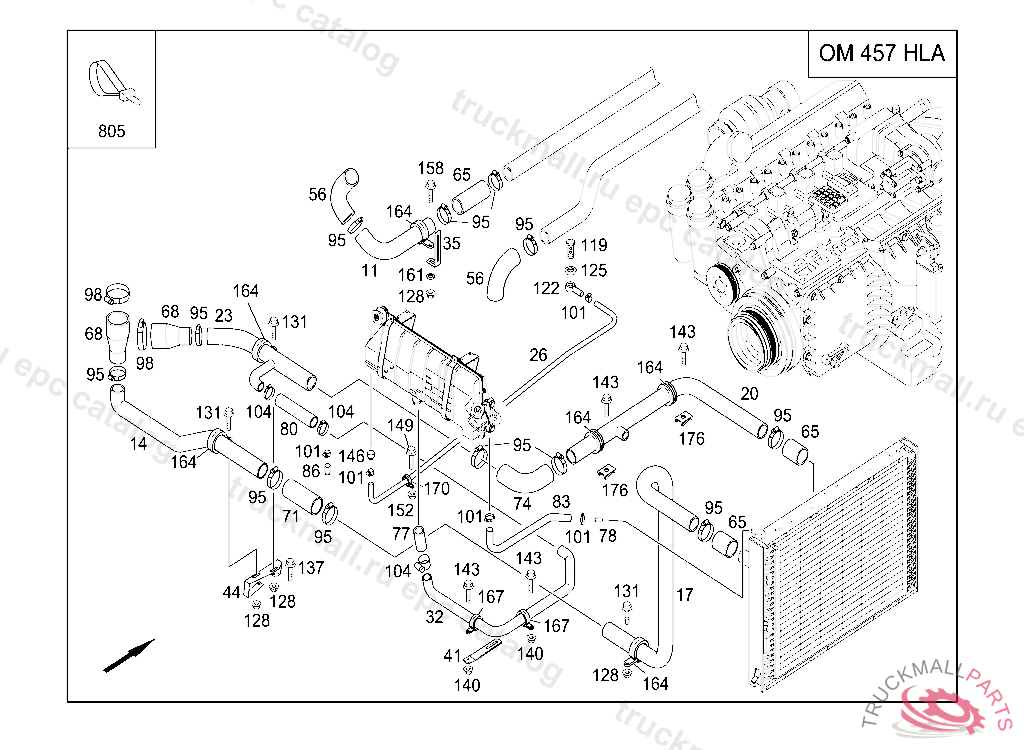

Поз.
Артикул
Описание
11
COOLING WATER PIPE RETURN LINE 60MM
14
COOLING WATER PIPE FEED LINE 60MM
17
COOLING WATER PIPE FEED LINE 60MM
20
LINE RETURN LINE 60MM
23
LINE RETURN LINE 60MM
26
HOSE12X21X850MM
26
RADIATOR HOSE. HOSE RUBBER 12X750MM, Replaced By: N000000004956
32
COOLING WATER PIPE
35
BRACKET
41
BRACKET
44
BRACKET
56
RADIATOR HOSE ARC REDUCED 90 DEGREES 65/60MM, Replaced By: A0015013982
56
MOLDED HOSE ARC REDUCED 90 DEGREES 65/60MM, Replaced By: A0025012082
56
COOLANT HOSE 90 DEGREES 60/60MM, Replaced By: A6285017782
56
MOLDED HOSE 90 DEGREES 60/60MM
65
HOSE COOLING WATER LINE TO COOLING WATER LINE
65
HOSE60 X 72 X 100 MM, TO BE ADAPTED DURING ASSEMBLY
65
HOSE RETURN, FROM RETARDER TO ENGINE
68
HOSE NARROWED STRAIGHT SURFACE 70/60MM
71
HOSE RETURN, FROM RETARDER TO ENGINE
71
HOSE RETURN, FROM RETARDER TO ENGINE, Replaced By: N000000005010
74
MOLDED HOSE 90-DEGREE ARC 60MM
77
HOSE ,D 209702
77
RADIATOR HOSE38X100MM, Replaced By: N000000004992
78
CONNECTOR
80
HOSE38X50X200MM
80
HOSE38X200MM, Replaced By: N000000004995
83
HOSE. RADIATOR HOSE12X21X620MM, Replaced By: N000000004953
83
HOSE12X21X620MM
86
GROMMET
95
CLAMP CONNECTION OF COOLING WATER LINES 55-75X13MM
98
CLAMP
101
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
104
CLAMP HOSE TO INTAKE PIPE 35-50X13MM
119
HOLLOW SCREW , Replaced By: N915036015201
119
HOLLOW SCREWA15
122
BANJO UNION DE-AERATION LINE TO THERMOSTAT
125
SEAL RING SOLENOID VALVE A 18X24
125
SEAL RING VALVE TO VALVE,K 025179
128
NUT , Replaced By: N913023010002
131
SCREWM 10X20
137
SCREW PICK-UP PLATE BRACKET ON LONGITUDINAL MEMBER M 14X25
137
SCREW. HEXAGON HEAD BOLT BRACKET MOUNTING M14X1.5X25,V 207570
140
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
143
SCREW , Replaced By: N910143008002
146
THROTTLE
149
SCREW BRACKET AND CLAMP M6X20
152
NUT , Replaced By: N913023006001
158
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M12X45
161
BASE
164
CLAMP60/25RSGU
164
CLAMP60/25MM, Replaced By: N000000006126
167
CLAMP , Replaced By: A3829950701
167
CLAMP LINE MOUNTING
170
CLAMP CLAMP ON TRANSVERSE SHAFT MOUNTING, LINKAGE
170
MOUNTING CLAMP MOUNTING USED FOR COMPRESSED AIR LINES RSGU 20/15
170
CLAMP PIPE ON FAN SHROUD
176
NUTM8
805
CABLE STRAP7.8X465
