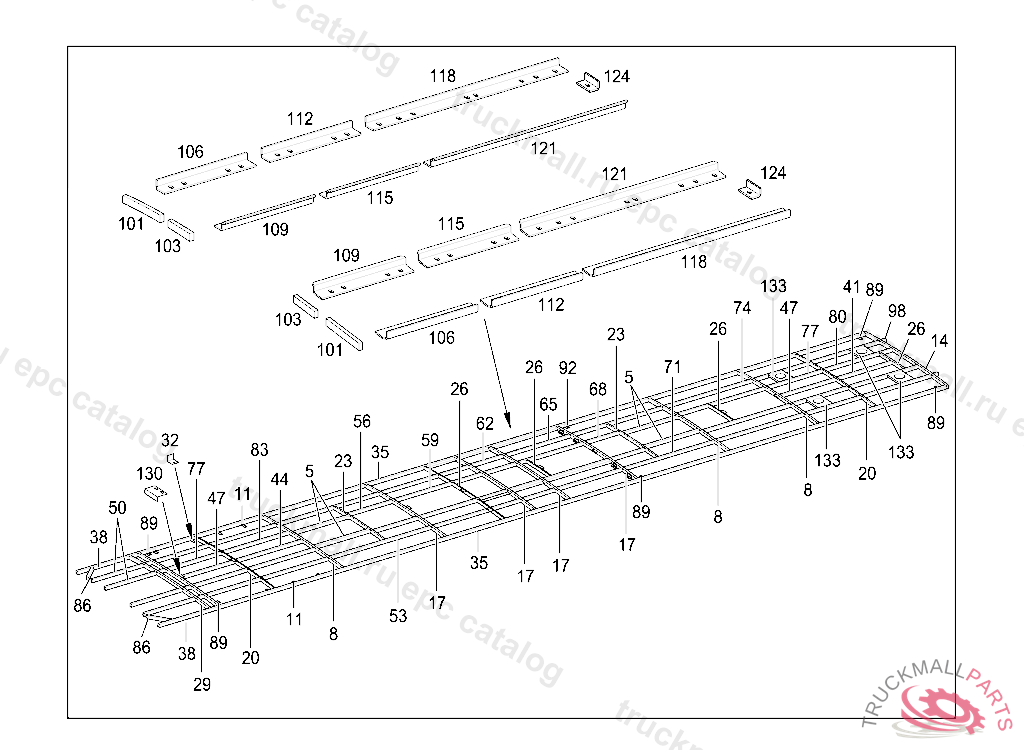

INTEGRO L - 633.004 - 65 ROOF
Поз.
Артикул
Описание
5
REINFORCEMENTL972MM
8
ROOF BOW
11
BRACKET SECONDARY SWITCHBOARD
14
ROOF BOW
17
ROOF BOW
20
ROOF BOW
23
ROOF BOW
26
ROOF BOW
29
ROOF BOW
32
ANGLE
32
ANGLE
35
ROOF RAILL11900 MM
38
ROOF RAIL
41
REINFORCEMENT
44
REINFORCEMENT
47
REINFORCEMENT
50
RAIL908MM
53
RAILL1760MM
56
RAIL758MM, Replaced By: A6276514638
56
RAIL
59
RAIL1575MM
62
RAILL550MM
62
RAIL550MM, Replaced By: A6296513138
65
RAIL1140MM, Replaced By: A6296515538
65
RAIL
68
RAIL593MM
71
RAILL1595MM
74
RAIL1540MM
77
RAIL980MM
80
RAIL1175MM
83
RAIL1215MM
86
REINFORCEMENT
89
BRACKET40X30MM
92
BRACKET40X40 M8
98
PLATE
101
ROOF BOW
103
ROOF BOW
106
RAIL OUTSIDE L536MM
109
RAIL INSIDE L536MM
112
RAIL OUTSIDE L550MM
115
RAIL INSIDE L550MM
118
RAIL OUTSIDE L1140MM
118
RAIL OUTSIDE L620MM
121
RAIL
121
RAIL INSIDE L1140MM
124
ANGLE
130
BRACKET FOR DOME LAMP
133
BRACKET FOR FAN FRAME
