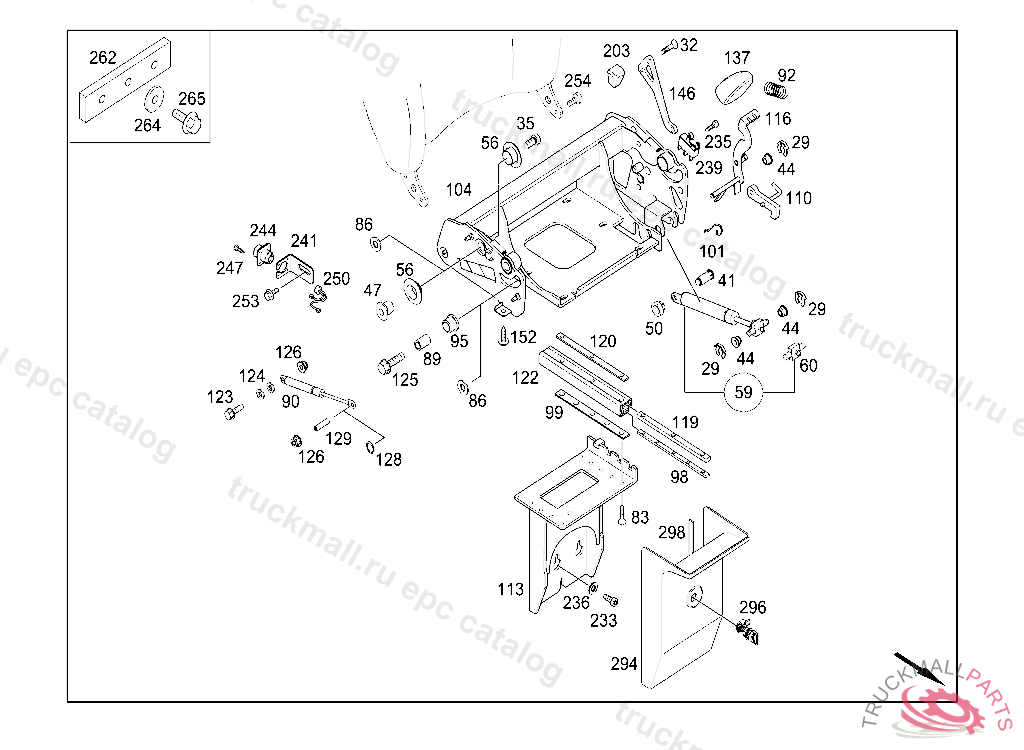

Поз.
Артикул
Описание
29
WASHER
32
SCREW
35
SCREWM8X16
41
PIN
44
BUSHING FRONT
47
PIN SHORT 165MM
50
BUSHING REAR
56
BUSHING INSIDE
56
BUSHING OUTSIDE
59
GAS SPRING. STAY DIA., 22MM
60
SUPPORT
83
SCREW W HEXAGON SOCKETM 8 X 16
86
WASHER PUMP TO CONSOLE
89
BUSH WITHOUT CHAMFER
90
GAS SPRING
92
SPRING TENSION SPRING
95
BUSHING
98
LEDGE150MM
99
UNDERLAYER
101
SPRING LEFT
104
SEAT FRAME
104
SEAT FRAMEWORK , Replaced By: A6329100304
110
DETENT
113
SUPPORT
116
LEVER
119
LEDGE
120
UNDERLAYER
122
RAIL
122
RUN
123
SCREW BRACKET AND CLAMP M6X20
124
WASHER COMPRESSED AIR LINE TO BRACKET
125
SCREW SHIFT LEVER TO BRACKET M8X30
125
HEXAGON HEAD BOLTM8X30
125
HEXAGON HEAD BOLT. SCREW STAY TO APPARATUS SUPPORT
126
NUT BRACKET TO FIRE WALL
128
WASHER COMPRESSED AIR LINE TO BRACKET
129
GRUB SCREW
137
HANDLE
146
LEVER
152
SHEET METAL SCREW BRACKET TO FIRE WALL
203
LOCKING CAP
233
SCREWM8X16
235
TAPPING SCREW3.5X16
236
WASHER PUMP TO CONSOLE
239
SWITCH
241
ANGLE
244
PLUG HOUSING
247
TAPPING SCREW MOUNTING PLATE 3.5X9.5
250
ELECTRIC CABLE , Replaced By: A6298200813
253
SCREW BRACKET TO CAB REAR PANEL M 8X20
254
SCREW
262
PLATE
264
WASHERM6
265
SCREWM 10X20
294
COVER
296
FASTENER
298
INSULATION2X12MM/L2000MM
