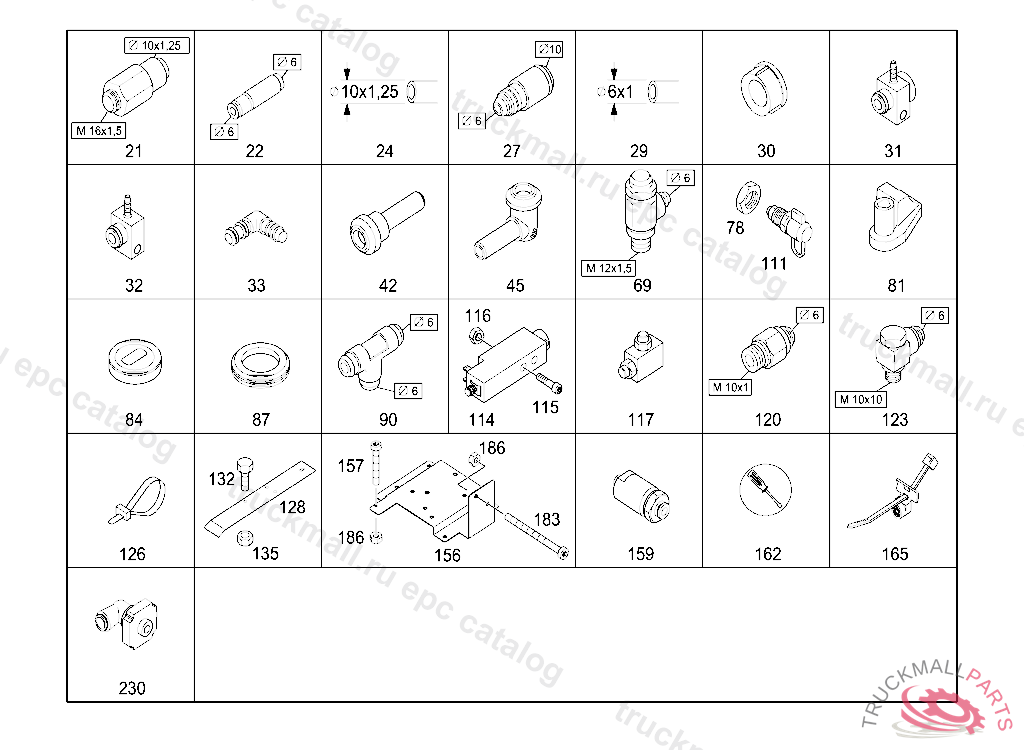

Поз.
Артикул
Описание
21
VALVE
22
VALVED6 MM
24
PLASTIC PIPE10X1.25, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
27
THREADED UNION
29
PLASTIC PIPE RISING PIPE 4X6 MM
30
PLUG
30
PLUG (DUST DISCHARGE VALVE)
31
CONNECTOR DISTRIBUTOR TO FRAME
32
CONNECTOR
33
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16, 4 MM, VOSS 232
42
PLUG
45
ELBOW FITTING
69
FITTING
78
NUTM16X1.5 RAUFOSS
81
RETAINING CLIP
84
GROMMET
87
GROMMET
90
T-FITTING
111
TEST CONNECTIONM16X1.5/M16X1.5
114
LOCKING VALVE
115
SCREWM4X30
116
NUT VALVE TO BRACKET
117
VALVE SHUTTLE VALVE
120
FITTING
123
FITTING
126
CABLE TIE , Replaced By: A0049971890
126
LOOM TIE LINE MOUNTING 280 MM
126
CABLE STRAP202X4.8MM
128
BRACKET
132
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
132
SCREW , Replaced By: N914146006102
135
NUT BRACKET TO FIRE WALL
156
CONSOLE , Replaced By: A6337600623
156
CONSOLE , EXHAUST STOCK OF OLD PART NUMBER FIRST
157
SCREW. HEXALOBULAR BOLT BRACKET TO REAR PANEL M4X20
157
SCREWM4X25
159
FILTER
162
ADHESIVE LABEL
165
CABLE TIE. BRACKET ELECTRIC CABLE TO ALTERNATOR 151 MM
183
SCREWM 4 X 50
183
SCREWM4X40
186
NUT BOOT TO AIR DUCT AND TO AIR CLEANER
186
NUT-AND-WASHER ASSEMBLY. NUTM4
230
ELBOW FITTING
