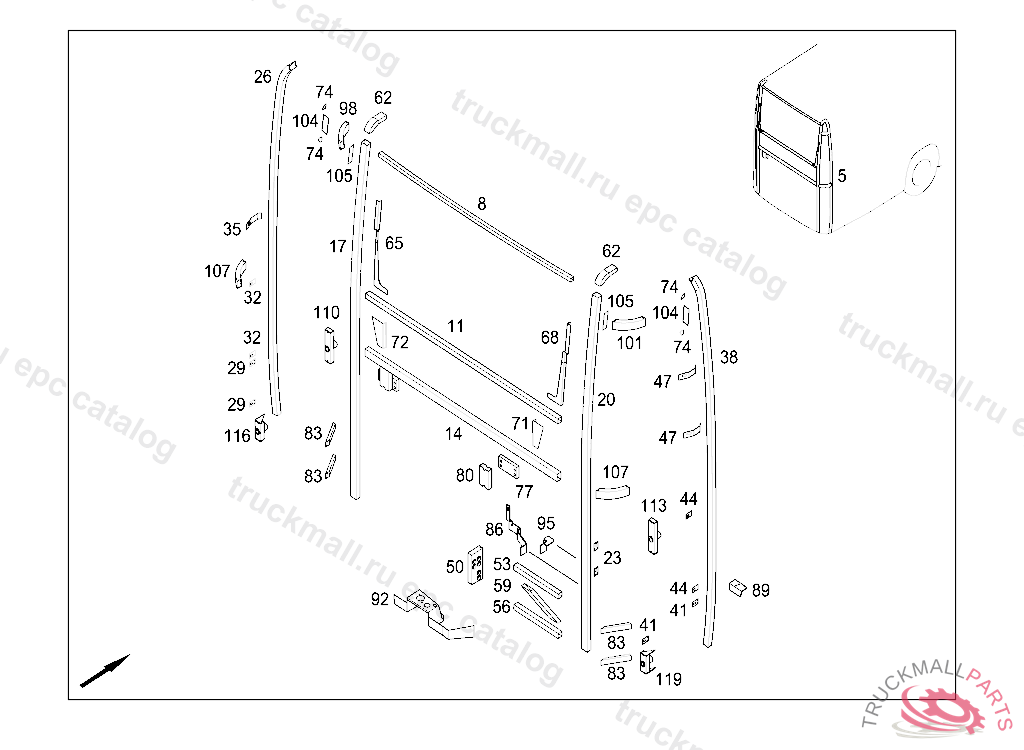

INTOURO M - 633.052 - 64 REAR PANEL
Поз.
Артикул
Описание
5
REAR PANEL
5
REAR PANEL COMPLETE
8
FRAME PART ROOF CROSS MEMBER
11
FRAME PART CENTRAL TOP
14
FRAME PART CENTRAL
17
PILLAR LEFT
20
PILLAR RIGHT
23
PLATE MOUNTING PLATE 60 X 40 MM
26
PILLAR LEFT
29
PLATE MOUNTING PLATE 60 X 40 MM
32
PLATE
35
BRACKET
38
PILLAR RIGHT
38
REINFORCEMENT50X125MM
41
PLATE MOUNTING PLATE 60 X 40 MM
44
PLATE
47
BRACKET
50
STAY RIGHT
53
GIRDER PART TOP
56
GIRDER PART BOTTOM
59
STRUT RIGHT 467LG
62
REST LEFT AND RIGHT
65
ANGLE LEFT
68
ANGLE RIGHT
71
RAIL
72
RAIL
74
REINFORCEMENT HECKBLENDE
77
PLATE
80
PILLAR115LG
83
STRUTL238 MM
86
BRACKET
89
BRACKET
92
CONSOLE
95
BRACKET224X190MM
98
STRUT LEFT
101
STRUT RIGHT
104
REINFORCEMENT50X125MM
105
REINFORCEMENT40X140MM
107
STRUT270LG
110
MOUNTING
113
MOUNTING
116
MOUNTING
119
MOUNTING
