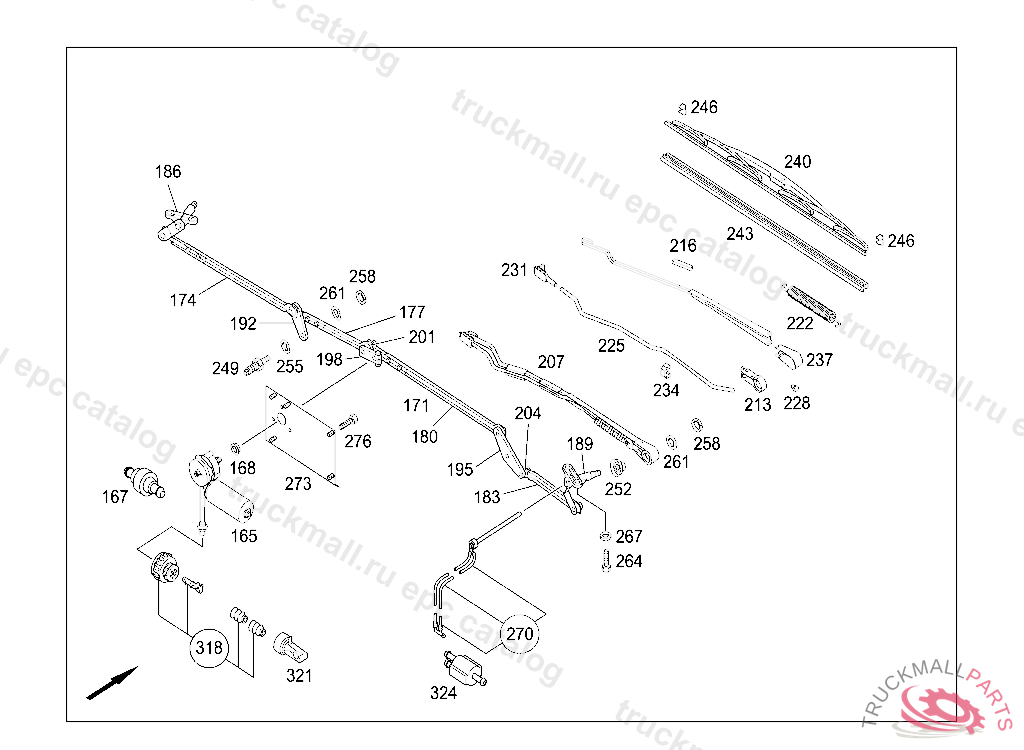

Поз.
Артикул
Описание
165
WIPER MOTOR120 NM
165
WIPER MOTOR SEE FOOTNOTE, BEFORE INSTALLING THE WIPER MOTOR, PERFORM MODIFICATION ACC. TO TI-NR 82.30U05494AOF 03.12.2008
167
VALVE
167
VALVE
168
GROMMET
171
LINKAGE
174
ROD ARTICULATED ROD
177
ROD ARTICULATED ROD
180
ROD ARTICULATED ROD
183
ROD ARTICULATED ROD
186
BEARING WIPER BEARING
189
BEARING WIPER BEARING
192
LEVER
195
LEVER
198
LEVER
201
BOOT
204
BOOT
207
WIPER ARM RIGHT
207
WIPER ARM LEFT
213
ATTACHMENT
216
CLIP
222
SPRING
225
HOSE
225
HOSE , TO BE ADAPTED DURING ASSEMBLY
228
ELBOW FITTING
228
PIPE SOCKET
231
NOZZLE WINDSHIELD WASHER LEFT AND RIGHT
231
NOZZLE RIGHT
231
NOZZLE LEFT
234
CLIP
234
CLAMP
237
CAP WIPER ARM
237
CAP
240
WIPER BLADE
243
WIPER RUBBER
246
CLIP
249
PIN
252
CAP
255
WASHERB 31 X 50
258
NUT
261
WASHER17X27
264
SCREW
267
WASHER
270
HOSE
273
BRACKET
276
SCREW SPEED SENSOR TO REAR AXLE
276
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
276
SCREW , Replaced By: N910143008000
318
PARTS KIT FUEL GAUGE SENDER UNIT, THIS CABLE HARNESS IS A COMPONENT OF FRAME MOUNTED CABLE HARNESS ASSEMBLY AND CAN BE MADE AVAILABLE AS A SPARE ATTENTION: WHEN PLACING ORDERS, PLEASE QUOTE VEHICLE IDENT NO. ONLY IF FRAME MOUNTED CABLE HARNESS IS REQUIRED AS AN ASSEMBLYK 171434
321
BOOT 180 DEGREE OUTLET WITH VARIABLE CLAMPING
324
PIPE SOCKET WITH CHECK VALVE
