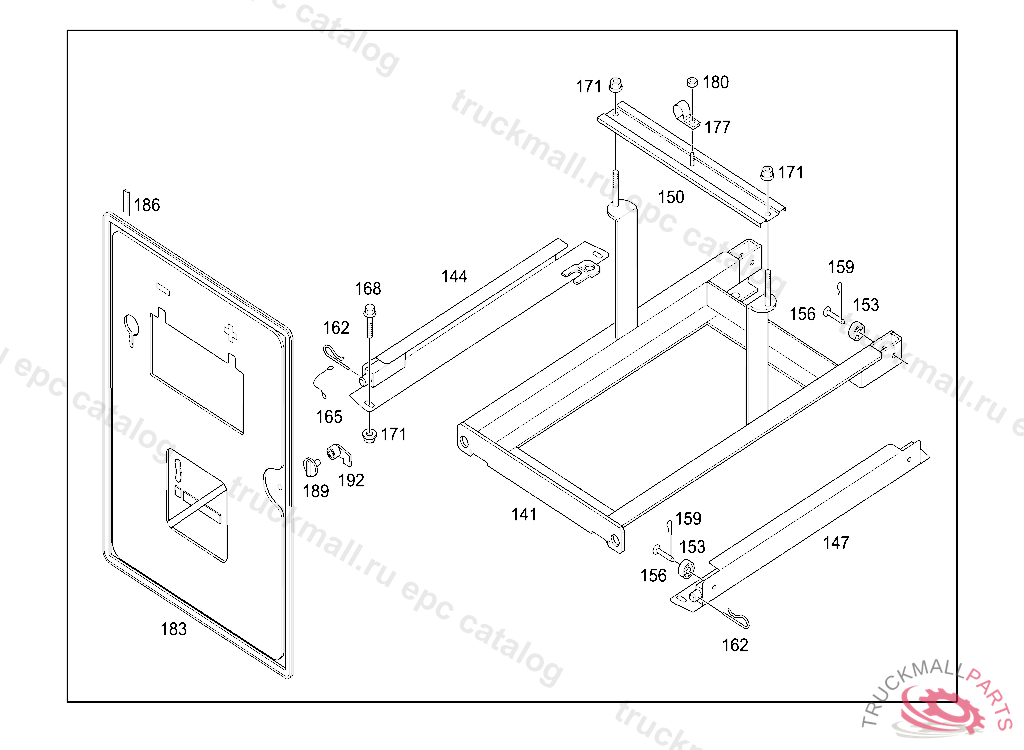

Поз.
Артикул
Описание
141
FRAME FRAME TO BATTERY CASE
144
RAIL LEFT
147
RAIL RIGHT
150
RAIL BATTERY MOUNTING
153
ROLLER
156
PIN11X32X28MM
159
COTTER PIN ,SB044945
162
SPRING RETAINING PIN. LOCK
165
CORD
168
SCREW BRACKET TO CAB REAR PANEL M 8X20
171
NUT HORN TO BRACKET M8
177
CLAMP
180
NUT BRACKET TO FIRE WALL
183
COVERING FOR BATTERY
183
COVERING FOR BATTERY
183
COVERING BATTERY COMPARTMENT
186
RUBBER SEAL , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
189
ROTARY CATCH
192
ROTARY CATCH
999
GROMMET HOSE LINE PROTECTION TO 000 546 16 30,71 30
999
GROMMET LINE MOUNTING 10.0 MM
999
SEALING TAPE BLACK 25 MM / 66 M
999
ADHESIVE TAPE RED 12MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
