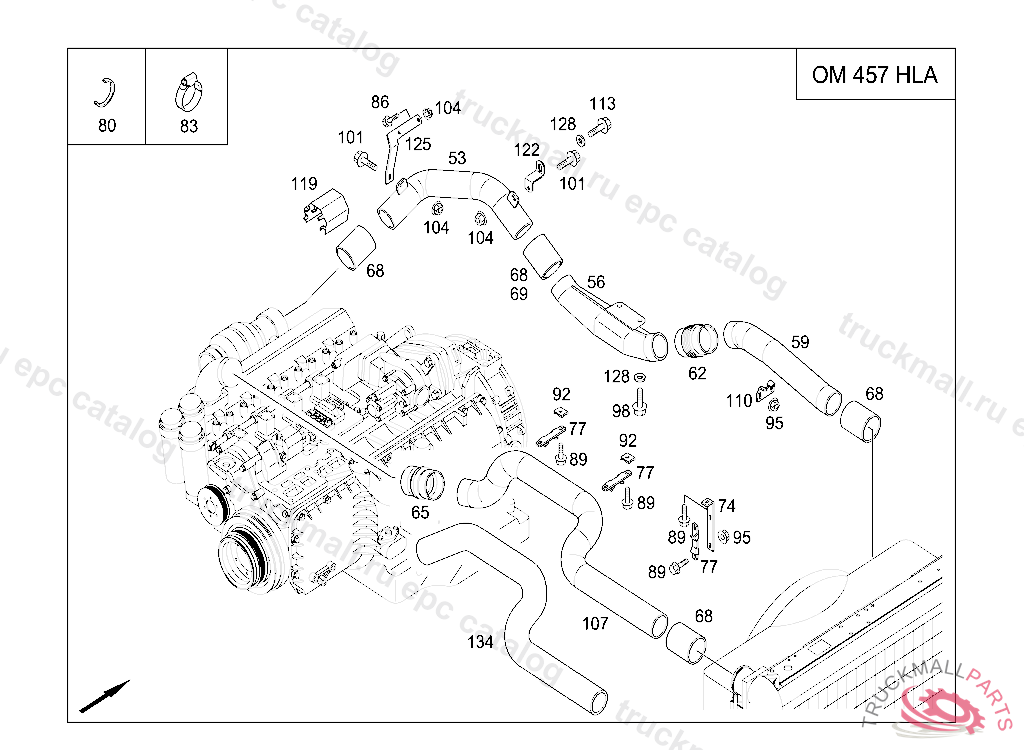

Поз.
Артикул
Описание
53
LINE
53
LINE
56
CHARGE AIR DUCT. HOSE
59
LINE
62
HOSE100X190MM
65
HOSE100X150MM
65
HOSE100X200MM
68
HOSE AIR INTAKE PIPE TO ENGINE
69
HOSE
74
BRACKET
77
BRACKET
80
SHIM
83
CLAMP FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE 100-120X13 MM
83
HOSE CLAMP
86
HEXAGON HEAD BOLT CONSOLE TO REAR CROSS MEMBER AND TO FRAME SIDE MEMBERS M 10X40
86
SCREW BRACKET TO SIDE MEMBER M10X35
89
SCREW , Replaced By: N910143008000
92
NUT
95
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
98
CAP BOLTM16X1.5X30
98
SCREW BRACKET TO FLYWHEEL HOUSING
101
HEXAGON HEAD BOLT RESONATOR TO TRANSMISSION CASE,K 138633
104
NUT , Replaced By: N913023010002
107
INTERMEDIATE PIPE
107
LINE
110
BRACKET
113
SCREW FRONT SPRINGS TO FRONT AXLE
113
HEXAGON HEAD BOLT HEAT SHIELD MOUNTING M16X1.5X30
119
RADIATOR COVERING
122
BRACKET
125
BRACKET
128
WASHER EXTENSION TO REAR AXLE CARRIER, A 20130123
134
CHARGE AIR PIPE
