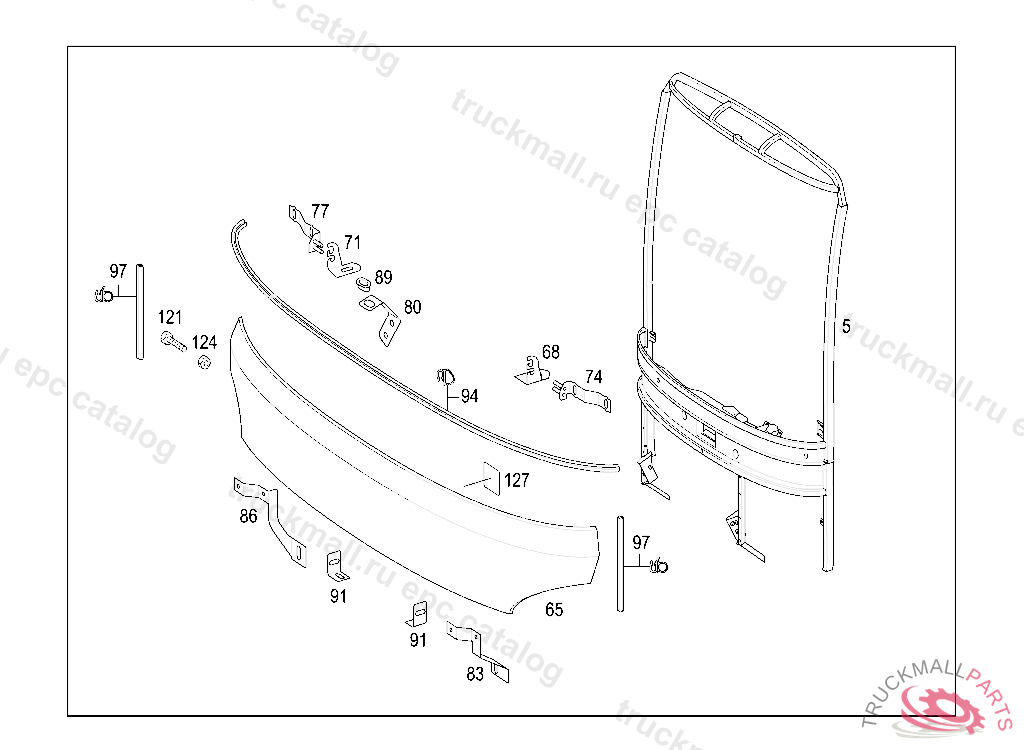

S 415 H - 633.121 - 62 COWL,FRONT PANEL
Поз.
Артикул
Описание
65
COVERING COWL
68
BRACKET LEFT
71
BRACKET RIGHT
74
CONSOLE LEFT
77
CONSOLE RIGHT
80
BRACKET CENTRAL
83
BRACKET LEFT
83
BRACKET LEFT, Replaced By: A6326254314
86
BRACKET RIGHT, Replaced By: A6326254414
86
BRACKET RIGHT
89
BUSHING8,3X20MM
91
BRACKET
94
RUBBER SECTION , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
97
RUBBER SECTION BLACK PVC, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
97
RUBBER SEAL , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
121
HEXAGON HEAD BOLT
121
SCREW BRACKET TO CAB REAR PANEL M 8X20
124
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
127
GUMMED LABEL
