Поз.
Артикул
Описание

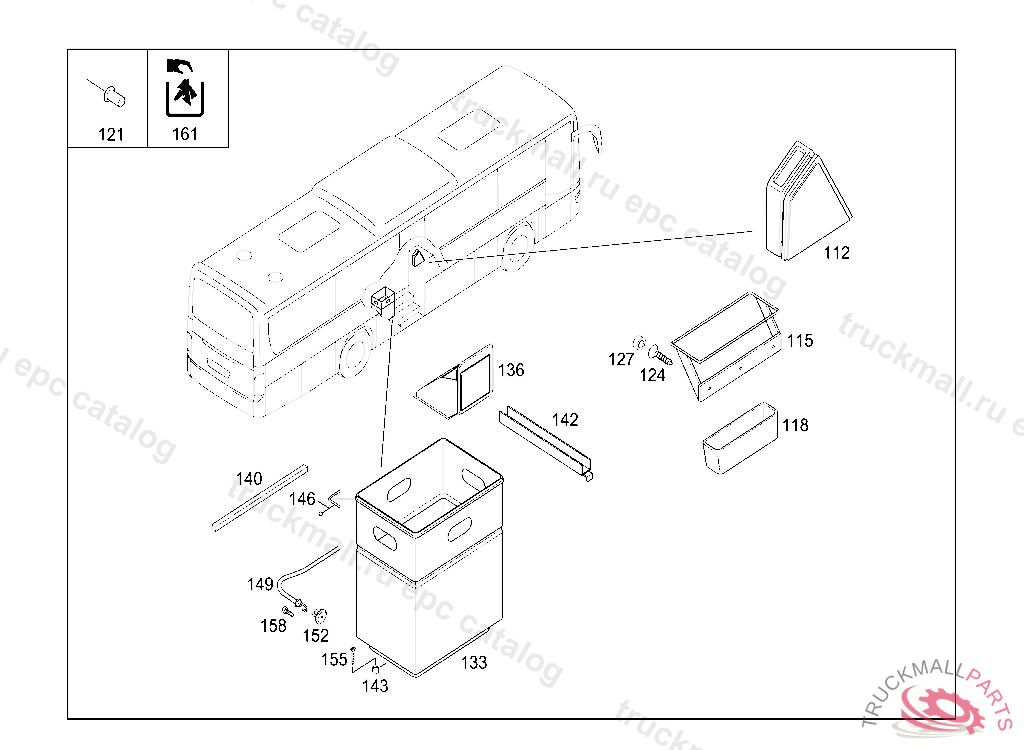

112
CONTAINER
115
FIXTURE
118
BOTTOM
121
RIVET4,0 X 10,2
124
SCREW, SPECIAL SHAPE3,5X13MM
127
LOCKING CAP
127
LOCKING CAP
133
CONTAINER90 LTR
136
FLAP LITTER-BIN
140
LEDGE
142
FIXTURE
143
RUBBER BUFFER
146
RUBBER STRIP , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
149
ELASTIC BAND
152
EYELG-800 MM
155
TAPPING SCREW BRACKET TO CAB FLOOR 3.5X9.5
158
TAPPING SCREW BRACKET MOUNTING 3.5X25
161
KEYHOLE COVER LITTER-BIN
161
KEYHOLE COVER LITTER-BIN
999
PLYWOOD8 MM ACAJOU, TO BE ADAPTED DURING ASSEMBLY
999
FABRICNADELFILZ, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
999
PLATE
999
ADHESIVE THREAD LOCK 50G
999
SPRING COTTER
999
MOUNTING STRIPHAKENBAND, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
999
MOUNTING STRIPFLAUSCHBAND, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
