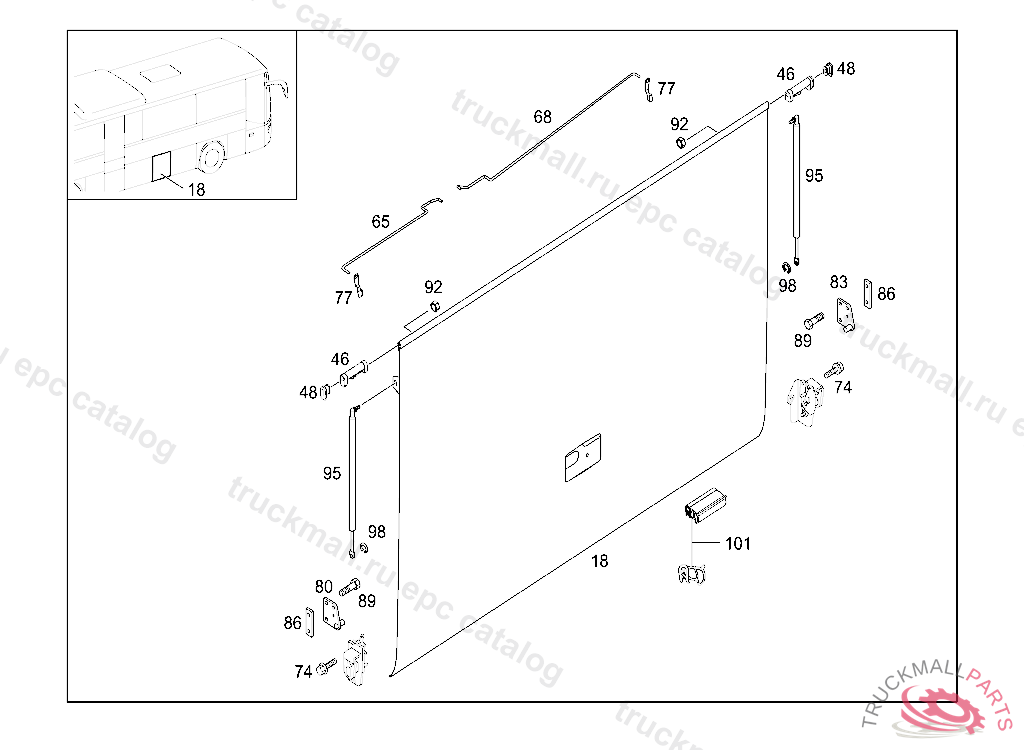

S 415 H - 633.121 - 75 OUTSIDE FLAPS
Поз.
Артикул
Описание
46
BUSHING
48
PROTECTIVE CAP
65
STRUTL646 MM
65
ROD. STRUTL437 MM
65
RODL822 MM
65
ROD LEFT L944,5MM
65
STRUTL372 MM
68
STRUTL707 MM
68
STRUTL423 MM
68
ROD. STRUTL498 MM
68
RODL883 MM
68
ROD RIGHT L997MM
74
HEXAGON HEAD BOLT
77
LOCK
80
STRIKER
83
STRIKER
86
PLATE
89
SCREW , Replaced By: N910143008000
92
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
95
SPRING PNEUMATIC SPRING 250N
95
GAS PRESSURE STRUT420N
95
SPRING PNEUMATIC SPRING 330N
98
LOCK RING
101
RUBBER SECTION , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
