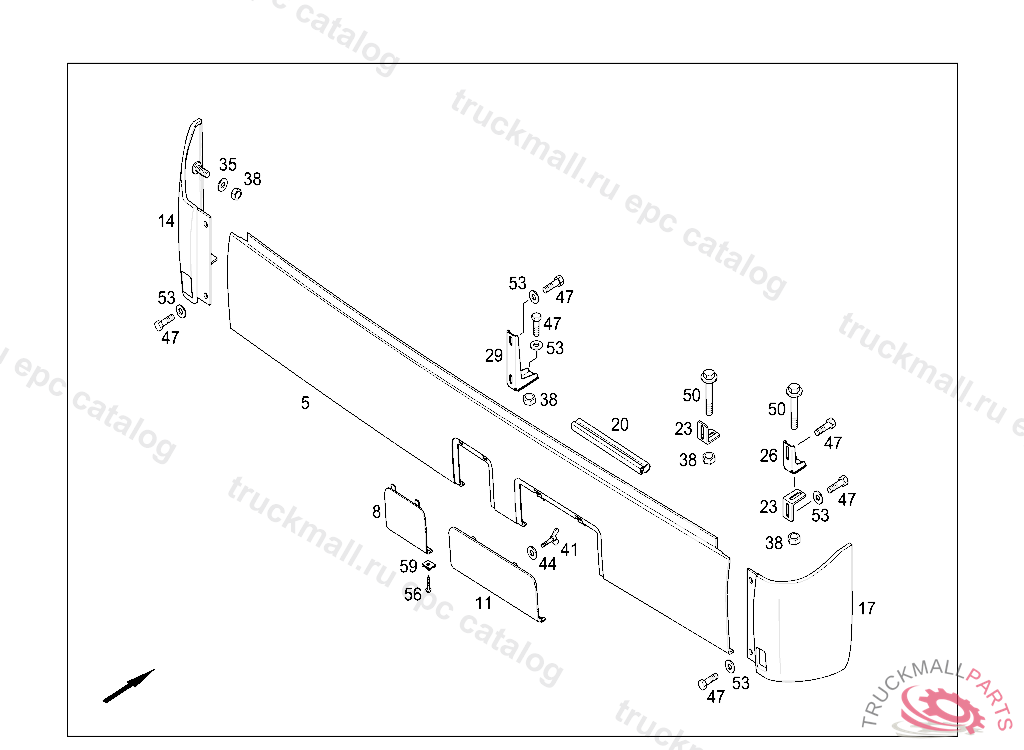

Поз.
Артикул
Описание
5
REAR BUMPER FACE BAR REAR,CENTRAL
8
BUMPER JOINT COVER TRAILER COUPLING
11
BUMPER JOINT COVER TOWING ATTACHMENT
14
BUMPERETTE REAR LEFT
17
BUMPERETTE REAR RIGHT
20
RUBBER SEAL , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
23
BRACKET
26
BRACKET
29
BRACKET
29
BRACKET REAR BUMPER CENTER PIECE L196 MM
35
WASHER BRACKET TO FUEL TANK SUPPORT
38
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
41
SCREWM6X16
41
SCREW CONDENSER TO CHARGE AIR INTERCOOLER M6 X 12
44
WASHER LINE MOUNTING
47
SCREW BRACKET TO CAB REAR PANEL M 8X20
50
SCREW VALVE TO BRACKET M 8X60
53
WASHER BRACKET TO CAB REAR PANEL
56
TAPPING SCREW. SHEET METAL SCREW BRACKET TO CAB
59
NUT
