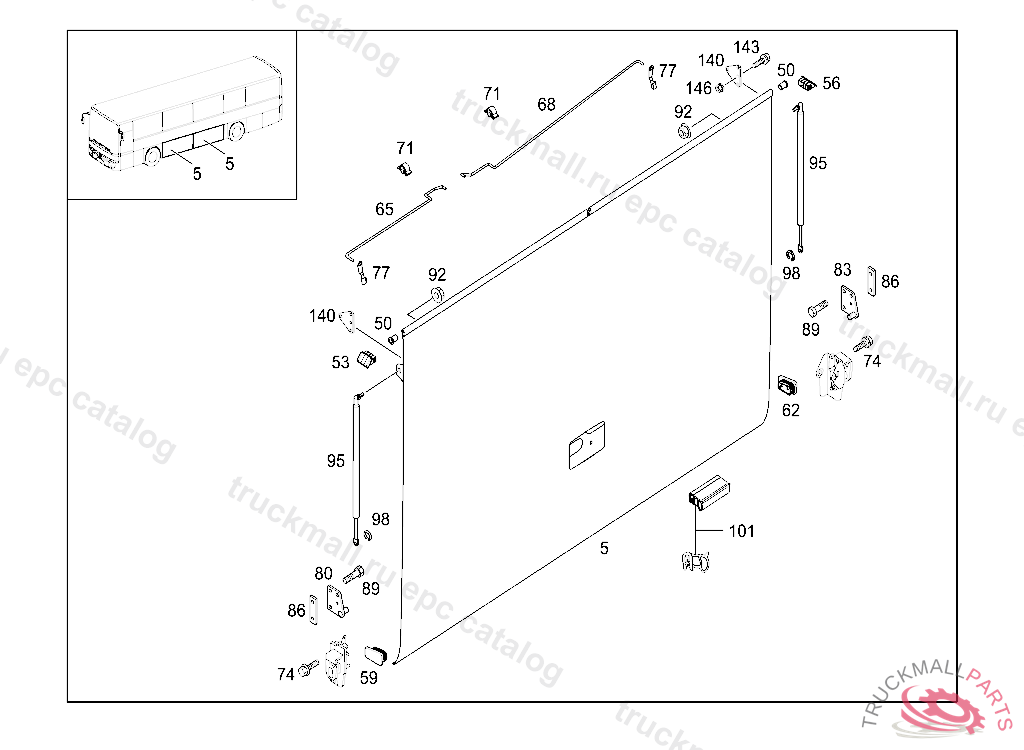

Поз.
Артикул
Описание
50
BUSHING
53
LOCKING CAP
56
LOCKING CAP
59
LOCKING CAP
62
LOCKING CAP
65
ROD. STRUTL437 MM
65
65
ROD LEFT L747MM
65
ROD LEFT L655MM
65
RODL822 MM
65
68
ROD RIGHT L707,5MM
68
RODL883 MM
68
68
RODL561MM
68
ROD RIGHT L496MM
68
ROD. STRUTL498 MM
74
HEXAGON HEAD BOLT
77
LOCK
80
STRIKER
83
STRIKER
86
PLATE
89
SCREW , Replaced By: N910143008000
92
NUT HINGE LEVER TO MOUNTING
92
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
95
SPRING PNEUMATIC SPRING 330N
95
SPRING PNEUMATIC SPRING 520 N
95
GAS SPRING630N
98
LOCK RING
101
RUBBER SECTION , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
101
RUBBER SECTION , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
140
BRACKET
143
SCREW , Replaced By: N914146006102
146
NUT , Replaced By: N913023006001
