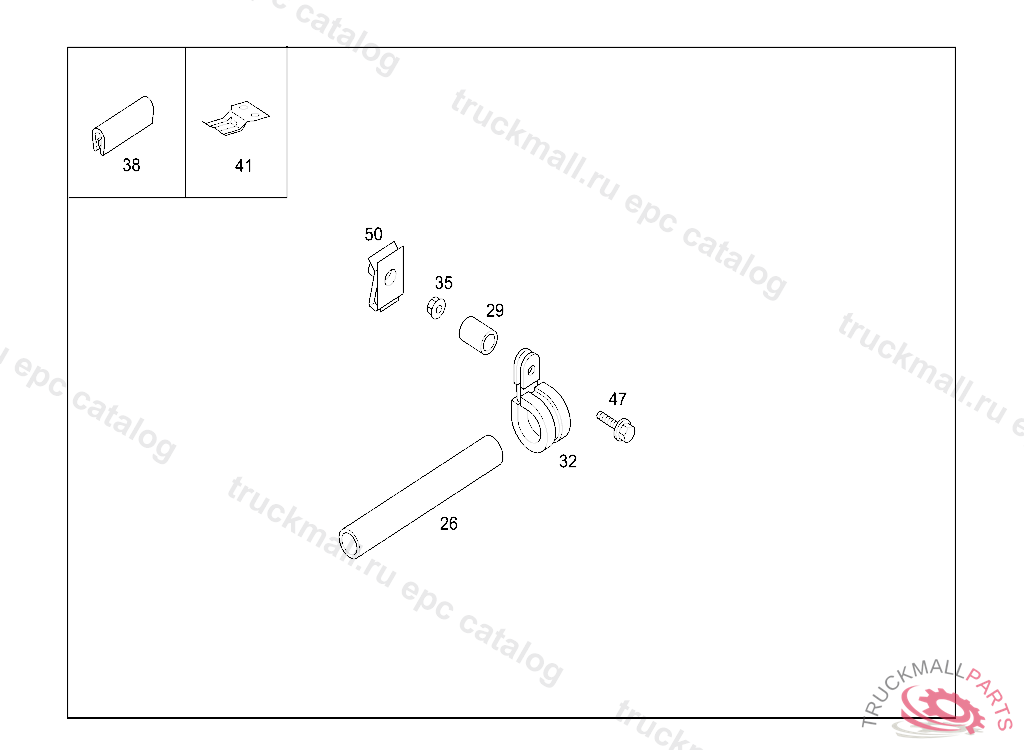

Поз.
Артикул
Описание
26
BRACKET RIGHT
26
BRACKET TRANSVERSE
29
SPACER SLEEVE
32
MOUNTING CLAMP SUCTION/DELIVERY/RETURN LINES 15/15 MM
32
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
32
CLAMP24/15
32
CLAMP
32
CLAMP SUCTION/DELIVERY/RETURN LINES 15/15 MM, Replaced By: A0019950642
32
CLAMP SUCTION/DELIVERY/RETURN LINES 12/15MM
35
NUT , Replaced By: N913023006001
38
EDGE GUARD SECTION , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
41
CONSOLE EXHAUST MUFFLER TO SUBSTRUCTURE
47
SCREW. HEXAGON HEAD BOLT BUZZER TO WINDOW LEVEL GIRDER M6X25
47
HEXALOBULAR BOLTM8X16
50
NUT FOR TAPPING SCREWM6
50
NUT , Replaced By: N913023006001
50
LOCK. NUT , Replaced By: A0039941745
50
SPRING-THREAD NUT PROTECTIVE PLATE
999
INSULATING TAPE110X5MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
999
ADHESIVE TAPE PAD FOR STRAP 50 MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
999
PAD ON FOLDING TOP CASE COVER
