Поз.
Артикул
Описание

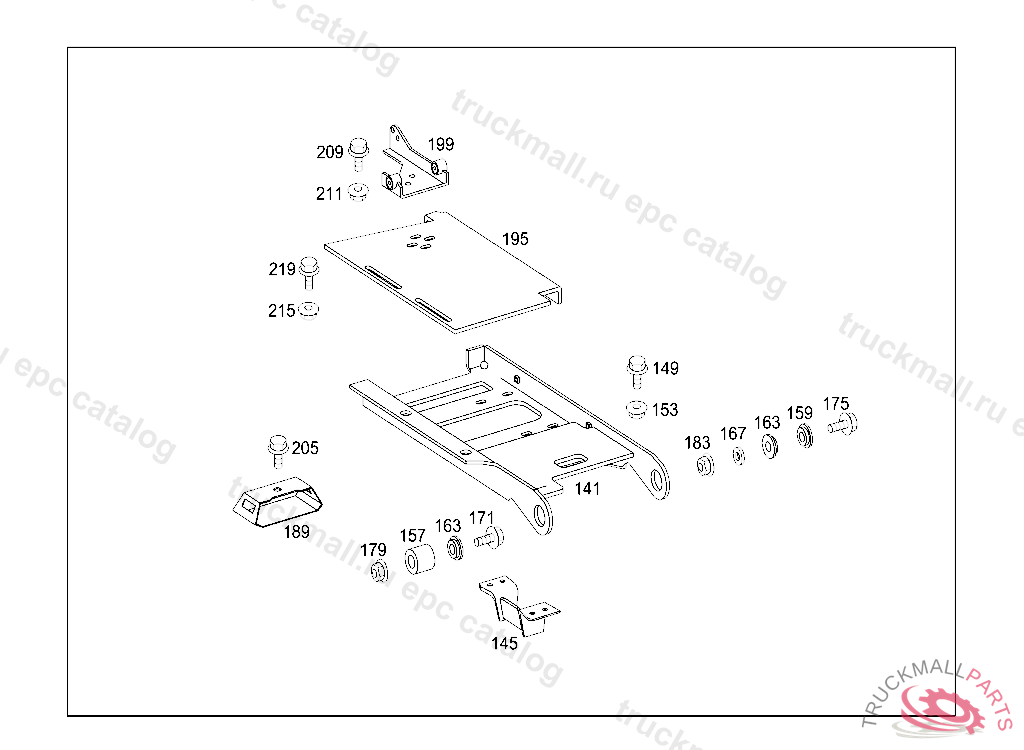

141
145
149
HEXAGON HEAD BOLT RESONATOR TO TRANSMISSION CASE,K 138633
153
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
157
BUSHING
159
BUSHING
163
BUSHING
163
167
THRUST WASHER
171
HEXAGON HEAD BOLT BEARING BRACKET TO SIDE MEMBER M 12X50
175
HEXAGON HEAD BOLT SHACKLE TO TORSION BAR AND TO CONSOLE M16X1.5X60
179
NUT BRACKET TO SIDE MEMBER M12X1.5
183
NUT FIFTH WHEEL COUPLING TO MOUNTING PLATE M16X1.5
189
SHIELDING
195
195
199
CONSOLE ALTERNATOR
205
HEXAGON HEAD BOLT. SCREWM18X1.5X30
209
HEXAGON HEAD BOLT BRACKET TO SIDE MEMBER M12X1.5X40
211
NUT BRACKET TO SIDE MEMBER M12X1.5
215
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
219
HEXAGON HEAD BOLT RESONATOR TO TRANSMISSION CASE,K 138633
219
HEXAGON HEAD BOLT MOUNTING,GAS CYLINDERS M10X110
219
SCREW BRACKET TO SIDE MEMBER M10X35
