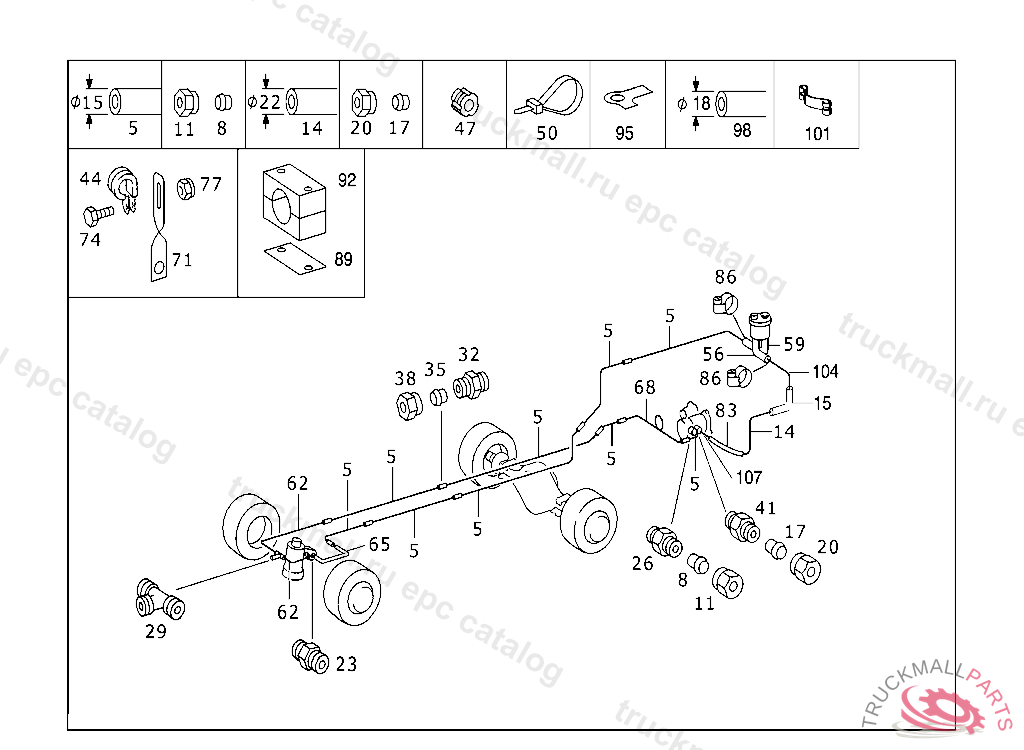

Поз.
Артикул
Описание
5
LINE15X1.5, ELIMINATED - NO LONGER REQUIRED
8
GLAND LINE CONNECTION
11
UNION NUT LINE CONNECTION
11
NUT LINE CONNECTIONS AL 15
14
LINE (SUCTION LINE),FROM HOSE TO OIL PUMP
14
HOSE RETURN, FROM STEERING TO OIL TANK, ORDER BY THE METER
15
LINE22 X 1,5
17
GLAND , Replaced By: A0019901267
17
GLANDBL22
20
UNION NUTAL22
20
NUT LINE CONNECTION
20
UNION NUT LINE CONNECTION, Replaced By: N000000006243
23
SCREW-IN FITTING , Replaced By: N003901015005
26
SCREW-IN FITTING , Replaced By: N003901015005
29
FITTING
32
CONNECTION FITTING ENGINE AIR COMPRESSOR,CONNECTION: "15"
32
FITTING TWO-WAY VALVE,CONNECTION: "12",4 691316
35
GLAND (DELIVERY AND SUCTION LINE) BL15
38
NUT LINE CONNECTIONS AL 15
38
NUTAL15, Replaced By: N915017015100
38
UNION NUT LINE CONNECTION
41
SCREW-IN FITTING SUCTION LINE TO OIL PUMP
41
FITTING POWER STEERING PUMP
44
CLAMP ADDITIONAL WORK ON FRAME MOUNTED CABLE HARNESS
44
CLAMP LINE MOUNTING
44
CLAMP DELIVERY AND SUCTION LINES TO FRAME
44
MOUNTING CLAMP MOUNTING USED FOR COMPRESSED AIR LINES RSGU 20/15
44
CLAMP CLAMP ON TRANSVERSE SHAFT MOUNTING, LINKAGE
44
CLAMP PIPE ON FAN SHROUD
44
CLAMP BRAKE HOSE BRACKET
47
BRACKET LINE MOUNTING
50
CABLE TIE310X5MM
50
LOOM TIE
56
HOSE
59
HOSE 90-DEGREE ARC NW15
62
EXPANSION HOSE FROM POWER STEERING PUMP AT ENGINE TO CUT-IN VALVE
62
LINE. HOSE
62
LINE
65
HOSE LOW PRESSURE
68
EXPANSION HOSE FROM POWER STEERING PUMP AT ENGINE TO CUT-IN VALVE
68
HOSE , Replaced By: A0269972582
71
BRACKET HOSE ATTACHMENT
71
BRACKET LINE MOUNTING
74
SCREW. HEXAGON HEAD BOLT BUZZER TO WINDOW LEVEL GIRDER M6X25
77
HEXAGON NUT ELECTRIC CABLE TO ALTERNATOR TERMINAL B-
77
NUT , Replaced By: N913023006001
83
HOSE , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
86
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
86
CLAMP HOSE BETWEEN PIPE ELBOWS 120-140X13MM
86
CLAMP CONNECTING HOSE
89
PLATE30MM
92
RUBBER MOUNTING LINE MOUNTING 30 MM
95
LOCK
98
HOSE BREATHER LINE D18, ORDER BY THE METER
101
LOOM TIE
104
107
999
FITTING
999
