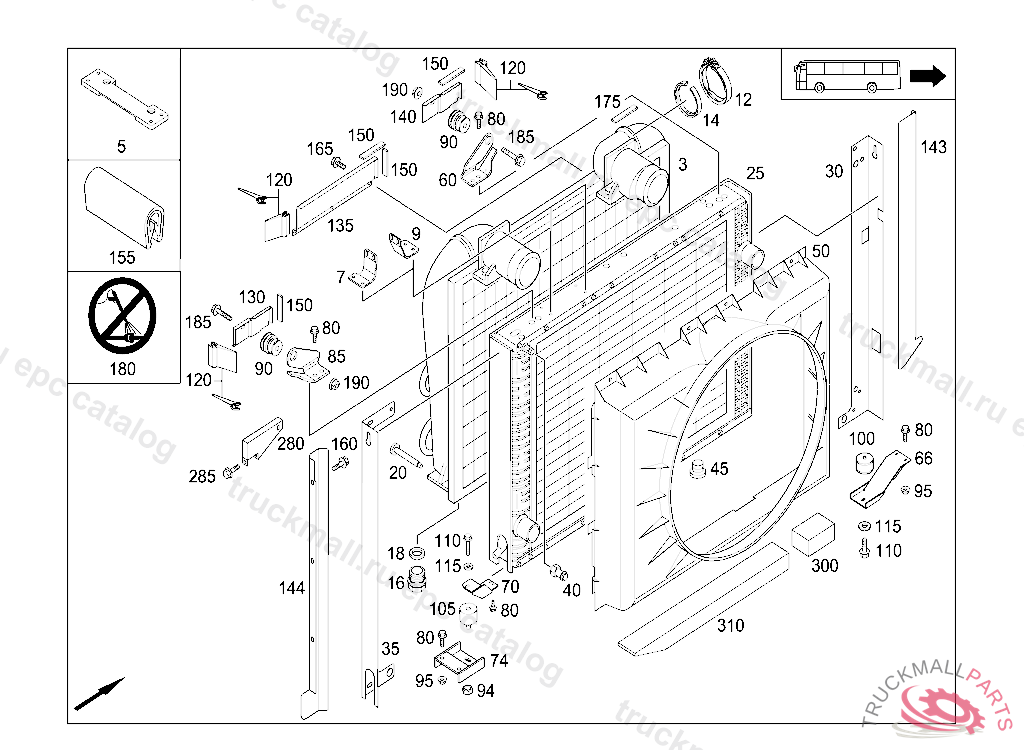

Поз.
Артикул
Описание
3
CHARGE AIR COOLER, AIR AIR-COOLED
3
RADIATOR CHARGE AIR COOLER, AIR-COOLED, UNTIL PRODUCTION BREAKPOINT DATE 02.04.06
3
RADIATOR CHARGE AIR COOLER, AIR-COOLED, Replaced By: A0025011101
5
BRACKET
7
BRACKET
9
BRACKET
12
HOSE CLAMP
14
SEAL RING
16
SCREW PLUG
18
SEAL RINGTO 001 431 72 14
20
FIT BOLT
25
COOLANT RADIATOR AIR-COOLED
25
RADIATOR, AIR-COOLED AIR-COOLED, Replaced By: A0025012201
30
COVER PLATE
35
COVER PLATE
40
SCREW BLEEDER SCREW
45
SCREW DRAIN PLUG
50
FAN SHROUD
50
FAN SHROUD , Replaced By: A0005052255
60
BRACKET TOP,REAR
66
BRACKET RADIATOR MOUNTING,BOTTOM
70
BRACKET
74
BRACKET RADIATOR MOUNTING,BOTTOM
80
SCREWM 10X20
80
HEXAGON HEAD BOLT RESONATOR TO TRANSMISSION CASE,K 138633
85
BRACKET TOP FRONT
90
DAMPER ELEMENT RADIATOR MOUNTING,TOP
94
HEX. NUT M 12 DIN 934-5 S. NUT , Replaced By: N000934012021
95
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
100
RUBBER BUFFER
105
RUBBER MOUNTM12X70X45
110
SCREW BRACKET TO LEFT SIDE MEMBER
115
WASHER BATTERY CASE TO SIDE MEMBER
120
RUBBER PROFILE BLACK, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
130
RADIATOR SHUTTER TOP FRONT
135
RADIATOR SHUTTER TOP CENTER
135
RADIATOR SHUTTER TOP CENTER
140
RADIATOR SHUTTER TOP,REAR
143
RADIATOR SHUTTER , AS OF PRODUCTION BREAKPOINT DATE 16.09.04
143
RADIATOR SHUTTER , UNTIL PRODUCTION BREAKPOINT DATE 15.09.04
144
RADIATOR SHUTTER
150
MOSS TYPE RUBBER SELF-ADHESIVE ON ONE SIDE 3X22MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
155
EDGE GUARD SECTION , ORDER BY THE METER
160
SCREW , Replaced By: N910143008000
165
HEXAGON HEAD BOLT
175
RUBBER STRIP120X60X30MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
180
PLATE HIGH PRESSURE CLEANER
185
HEXAGON HEAD BOLT. SCREW VIBRATION ABSORBER TO BRACKET M 10X65
280
BRACKET
285
HEXAGON HEAD BOLT. SCREW CLUTCH SLAVE CYLINDER TO BELL HOUSING
300
RUBBER STRIP236X70X60MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
310
RUBBER STRIP1030X70X50MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
