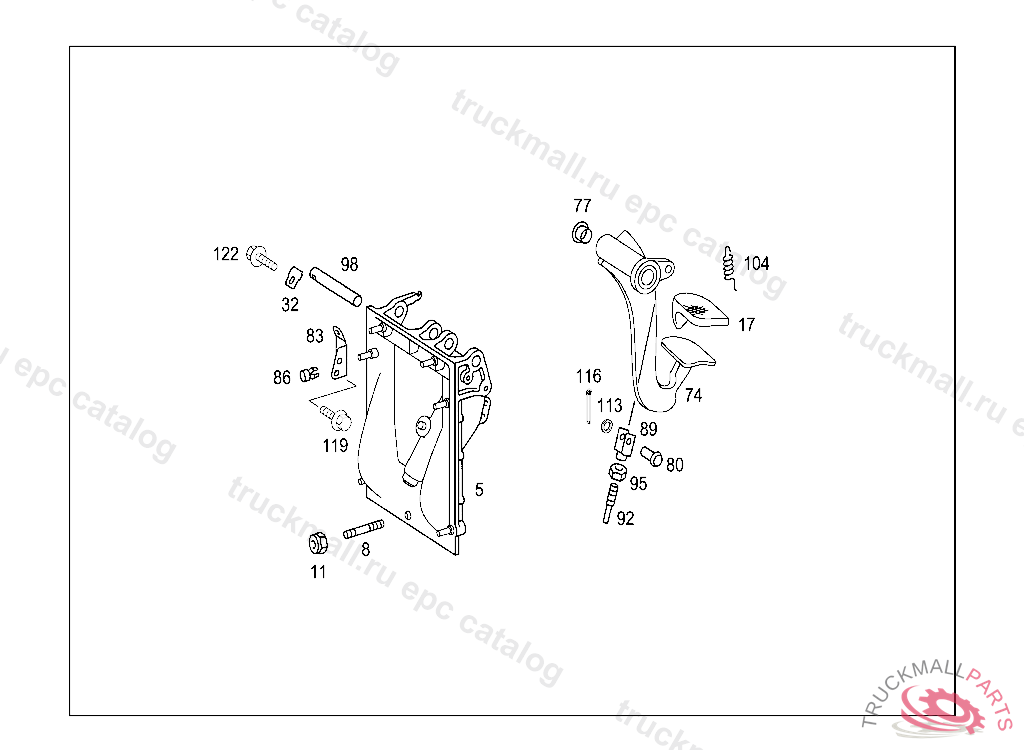

Поз.
Артикул
Описание
5
BEARING BRACKET (PEDAL BEARING BRACKET)
8
STUD
11
NUT HORN TO BRACKET M8
17
PAD BRAKE
32
LOCK CLUTCH AND BRAKE PEDAL PINS TO BEARING BRACKETS
74
PEDAL BRAKE
77
BUSHING , Replaced By: A1242920050
80
PIN ROD TO BRAKE PEDAL
83
STOP BRAKE PEDAL
86
STOP BRAKE PEDAL
89
YOKE OPERATING ROD
92
ROD TWO-CIRCUIT-BRAKE-VALVE CONTROL
95
NUT
98
PIN BRAKE PEDAL TO BEARING BRACKET
104
SPRING BRAKE PEDAL RELEASE SPRING
113
WASHER PULL ROD TO SHIFT LEVER
116
COTTER PIN LEVER TO ROD
116
COTTER PIN LEVER TO ROD, Replaced By: N000094002060
119
HEXAGON HEAD BOLT
122
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
122
SCREW , Replaced By: N914146006102
