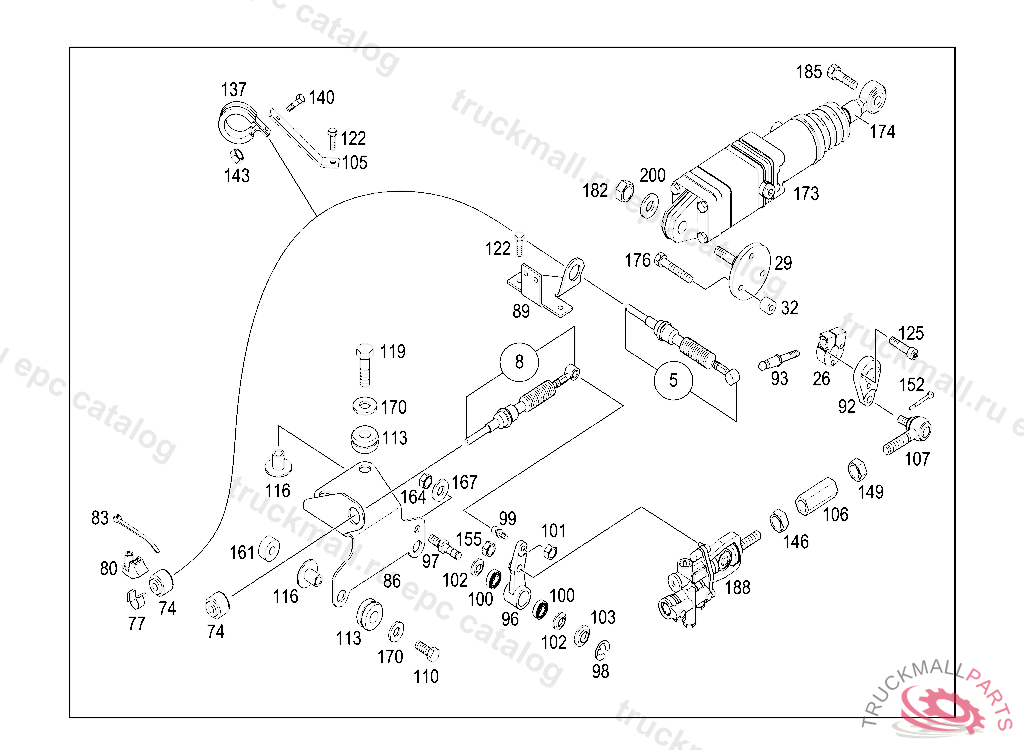

Поз.
Артикул
Описание
5
CABLE12430MM,OM502LA/GO210
5
CABLE CONTROL CABLE 10230MM
5
CABLE , Replaced By: A0002604551
5
CABLE SELECTION CABLE, Replaced By: A0002603051
8
CABLE SELECTION CABLE, Replaced By: A0002603051
8
CABLE CONTROL CABLE 10230MM
8
CABLEL13100,OM502LA/GO210
26
CLAMPING PIECE50X53MM
29
BRACKET
32
SPACER WASHER
74
RUBBER SEGMENT
77
CLIP
80
RETAINING CLIP
83
CABLE TIE LINE MOUNTING 375X8.4MM
86
BRACKET. CONSOLE AT TRANSMISSION
86
BRACKET. CONSOLE AT TRANSMISSION, Replaced By: A6292681536
89
BRACKET
92
SHIFT LEVER
93
BALL PINL95MM
96
LEVER
96
LEVER
97
PINL60MM
97
PIN
98
LOCK PLATE CONTROL SHAFT TO CAB
99
BALL STUD. BALL PIVOT PULL ROD TO BRACKET
100
BALL BEARING
100
BALL BEARING
100
BALL BEARING. GROOVED BALL BEARING INTERMEDIATE LEVER, NOT USED
101
NUT HORN TO BRACKET M8
102
SEAL RING
103
SPACER RING
105
BRACKETL148MM
106
THREADED SLEEVEL70MM
107
JOINT
110
SCREW. HEXAGON HEAD BOLT , Replaced By: N910143008005
113
GROMMET AT BRACKET
116
BUSHING
119
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M8X35
122
SCREW BRACKET TO CAB REAR PANEL M 8X20
125
SCREW STEERING SHAFT BEARING TO CAB M 8X30,5 191030
137
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
140
SCREW BRACKET AND CLAMP M6X20
143
NUT
146
HEXAGON NUT
146
NUT JOINT TO BRACKET
149
HEXAGON NUT L.H. THREAD M14
152
COTTER PIN
155
NUT REINFORCEMENT TO BRACKET
161
SPACER WASHER AT CONSOLE
164
NUT BRACKET TO SIDE MEMBER M12X1.5
167
WASHER
170
WASHER BRACKET TO CAB REAR PANEL
173
SHIFTING CYLINDER
173
SHIFTING CYLINDER , Replaced By: A0012607163, +002A0009973834
174
JOINT
176
HEXAGON HEAD BOLT CONSOLE TO REAR CROSS MEMBER AND TO FRAME SIDE MEMBERS M 10X40
176
SCREWM10X50MM
182
HEXAGON NUT BRACKET TO SIDE MEMBER M14 X 1,5
182
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
182
NUT SUPPORT TO FRAME
182
NUT STEERING SUPPORT TO FRAME
185
HEXAGON HEAD BOLT. SCREW BRACKET TO CONSOLE
185
HEXAGON HEAD BOLT SUPPORT TO FRAME M14X1.5X45
185
HEXAGON HEAD BOLT CONNECTION TO AXLE, NUTS SHAFT-SIDE M14X1,5X50MM
188
VALVE. CONTROL VALVE
200
WASHER STRAP TO BRACKET
