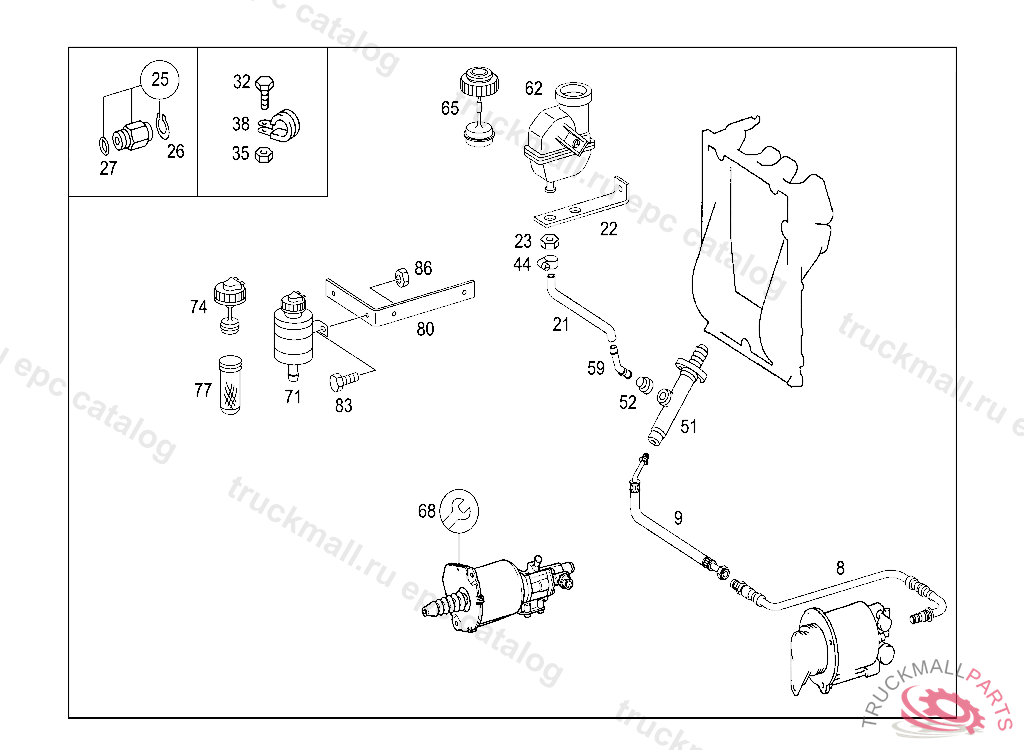

Поз.
Артикул
Описание
8
HOSE LINE
9
HOSE PIPE LINE TO CLUCH MASTER CYLINDER
21
BRAKE HOSE FROM FLUID RESERVOIR TO CYLINDER 2100 MM, ORDER BY THE METER ONLY ON INSTALLATION OF DIAPHRAGM CYLINDER OF MAKE "WESTINGHOUSE"
21
HOSE , Replaced By: A3929977682
22
BRACKET
23
NUT BRACKET TO SIDE MEMBER
25
FITTING PARTS KIT
26
LOCK CLUTCH HOSE
26
LOCK , Replaced By: A0009945448
27
SEAL RINGTO 000 553 03 05,000 553 18 05,
32
SCREW BRACKET AND CLAMP M6X20
32
HEXAGON HEAD BOLT. SCREW RELAY TO APPARATUS PLATE M 5X20
35
HEXAGON NUT ELECTRIC CABLE TO ALTERNATOR TERMINAL B-
35
HEXAGON NUT. NUT ELECTRIC CABLE TO ALTERNATOR
35
HEXALOBULAR BOLT. SCREW CLAMP ON BRACKET M 6X35
35
SCREW. HEXAGON HEAD BOLT BATTERY AND ENGINE CABLE HARNESSES TO BRACKET M6X35
35
NUT , Replaced By: N913023006001
38
CLAMP LINE MOUNTING 10/15, Replaced By: N000000007511
38
CLAMP SUCTION/DELIVERY/RETURN LINES 15/15 MM, Replaced By: A0019950642
38
CLAMP , Replaced By: N916016010211
38
CLAMP LINE MOUNTING
38
MOUNTING CLAMP SUCTION/DELIVERY/RETURN LINES 15/15 MM
38
CLAMP10/15
38
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
44
CLAMP LINE CONNECTION
44
CLAMP10-16X9MM
44
HOSE CLAMP. CLAMP COMPRESSED AIR HOSE TO COMPRESSED AIR LINE
51
MASTER CYLINDER CLUTCH M14X1MM
52
PLUG
59
INTERMEDIATE PIECE , Replaced By: A0002950036
62
RESERVOIR , UNTIL PRODUCTION BREAKPOINT DATE 09.04.03
65
FILLER CAP , UNTIL PRODUCTION BREAKPOINT DATE 09.04.03
68
CLUTCH BOOSTER REPAIR KIT WABCO
68
REPAIR KIT BELL HOUSING AND CLUTCH ACTUATION WABCO, Replaced By: A0002501062
68
REPAIR KIT. CLUTCH BOOSTER , Replaced By: A0002500262
71
EXPANSION TANK. RESERVOIR RESERVOIR
71
RESERVOIR WITH WARNING DEVICE,4 314610
74
FILLER CAPTO 001 431 38 02,000 431 58 02
77
STRAINERTO 001 431 38 02
80
BRACKET
83
SCREW BRACKET TO CAB REAR PANEL M 8X20
86
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
