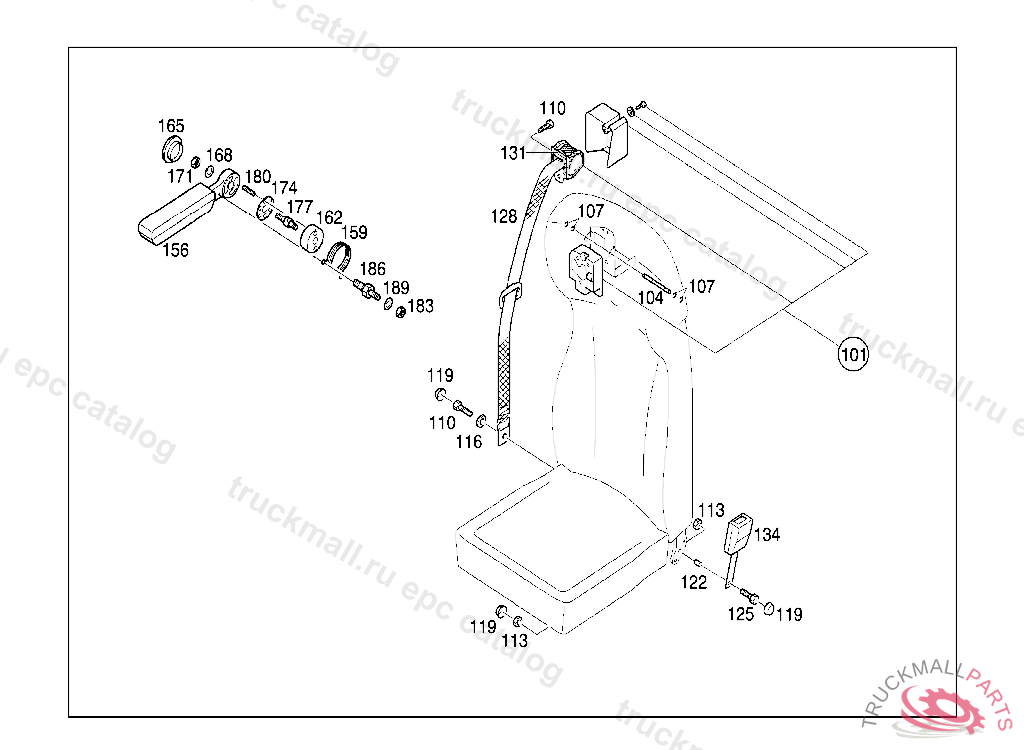

TOURO REISEBUS AUF IBC - 634.203 - 91 FRONT SEATS
Поз.
Артикул
Описание
101
SAFETY BELT PARTS KIT
104
SHAFT
107
LOCKING WASHER. LOCK PLATE CLUTCH PEDAL RESET
110
SCREW SAFETY BELT TO REAR SEAT
113
NUT
116
TOOTHED WASHER STOP LIGHT SWITCH TO PEDAL BEARING BRACKET
119
CAP
122
TUBE
125
SCREW
128
SAFETY BELT
131
ROLLER
134
FASTENER
156
PAD RIGHT
156
PAD LEFT
159
SPRING LEFT
159
SPRING RIGHT
162
MOUNTING PART
165
LOCKING CAP
168
UNDERLAYER
171
NUT
174
UNDERLAYER
177
PIN
180
ROLL PIN8X35
183
NUTM 5
186
PIN THREADED
189
TOOTHED WASHER BALANCING PLATES TO FAN AND TO PULLEY
999
TAPPING SCREW4.2X19
999
TAPPING SCREW SWITCH TO BRACKET MBN 10169-ST3.5X16-C
999
FASTENER BUTTON
