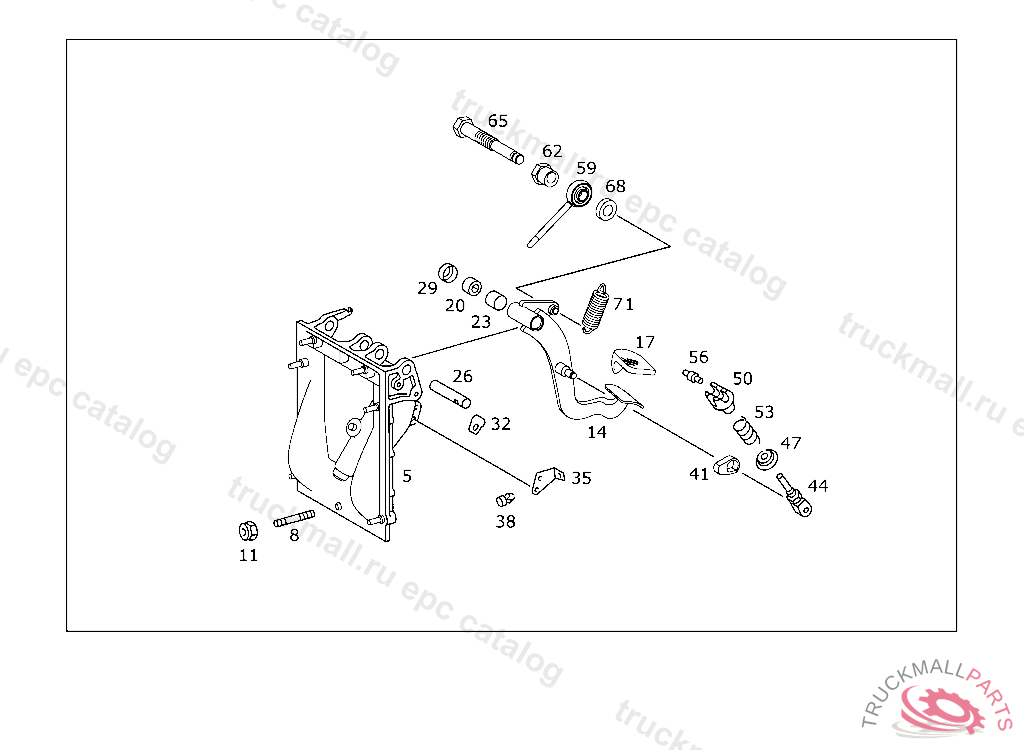

Поз.
Артикул
Описание
5
BEARING BRACKET (PEDAL BEARING BRACKET)
8
STUD
11
NUT HORN TO BRACKET M8
14
PEDAL CLUTCH,D 561822
17
PAD BRAKE
20
NEEDLE BEARING CLUTCH PEDAL
20
NEEDLE BEARING
20
NEEDLE BEARING CLUTCH PEDAL
23
SPACER TUBE CLUTCH PEDAL
26
PIN CLUTCH PEDAL TO BEARING BRACKET
29
WASHER CLUTCH PEDAL TO BEARING BRACKET
32
LOCK CLUTCH AND BRAKE PEDAL PINS TO BEARING BRACKETS
35
STOP CLUTCH PEDAL
38
STOP BRAKE PEDAL
41
STOP CLUTCH PEDAL RESET,5 219889
44
ROD CLUTCH PEDAL RESET
47
SPRING RETAINER CLUTCH PEDAL RESET
50
SPRING RETAINER CLUTCH PEDAL RESET
53
SPRING CLUTCH PEDAL RESET
56
PIN CLUTCH PEDAL RESET
59
ROD CLUTCH MASTER CYLINDER TO CLUTCH PEDAL,D 561822
59
ROD CLUTCH MASTER CYLINDER TO CLUTCH PEDAL,D 561822
62
BUSHING ROD TO CLUTCH PEDAL
65
PIN ROD TO CLUTCH PEDAL
68
SPACER RING ROD TO CLUTCH PEDAL
71
SPRING PEDAL RETURN SPRING
