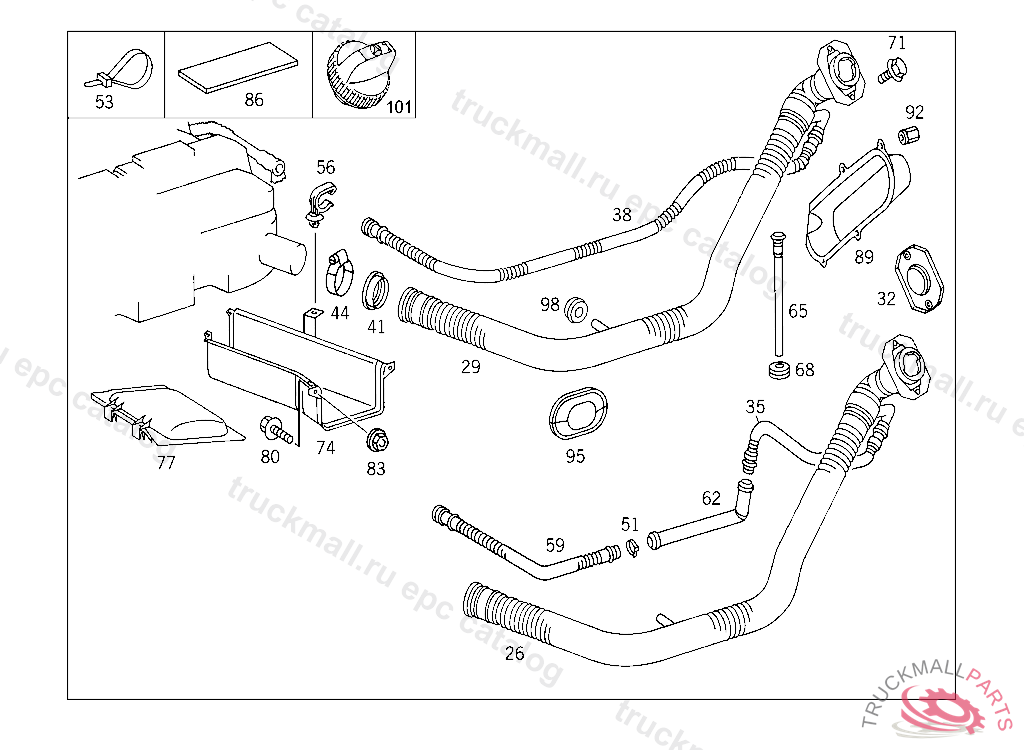

Поз.
Артикул
Описание
26
26
FILLER NECK WITH LOAD COMPARTMENT SLIDING DOOR, LH
29
29
FILLER NECK WITH LOAD COMPARTMENT SLIDING DOOR, LH
32
GASKET
35
HOSETO 638 470 00 20, 01 20
38
HOSETO 638 470 08 20, 09 20
41
BUSHING FILLER NECK TO FUEL TANK
44
LOOM TIE. CLAMP HOSE FASTENING
44
LOOM TIE , Replaced By: A0069972690
51
LOOM TIE. CLAMP , Replaced By: A0069971890
51
LOOM TIE , A 358832 EXCEPT FOR A 331465 - A 358832 WITH CODE 057
51
HOSE CLAMP HOSE ATTACHMENT
53
LOOM TIE LINE MOUNTING 280 MM
56
CLIP
59
BREATHER PIPE WITH LOAD COMPARTMENT SLIDING DOOR, LH
62
LINE WITH LOAD COMPARTMENT SLIDING DOOR, LH
65
HOSE TANK FILLER NECK DRAIN PIPE
65
HOSE , Replaced By: A2106390194
65
HOSE , Replaced By: A2106390194
68
GROMMET ,D 314239
71
SCREW. HEXAGON HEAD BOLT RELAY TO BRACKET M5X16
74
COVERING , Replaced By: A6384700147
74
COVERING FLAME PROTECTOR FILLING PIPE
77
PROTECTIVE PLATE FLAME PROTECTOR FILLING PIPE
80
SCREW BRACKET MOUNTING M6X10
83
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
86
BASE BLOCK
86
BASE BLOCK , Replaced By: A6384030419
89
END PIECE
92
FASTENER BUTTON
95
GROMMET FILLER NECK TO SIDE PANEL
98
GROMMET MAIN CABLE HARNESS THRU WINDOW SILL 36X25 MM
101
FUEL FILLER CAP , Replaced By: A9014700005
