OM 327 327.916

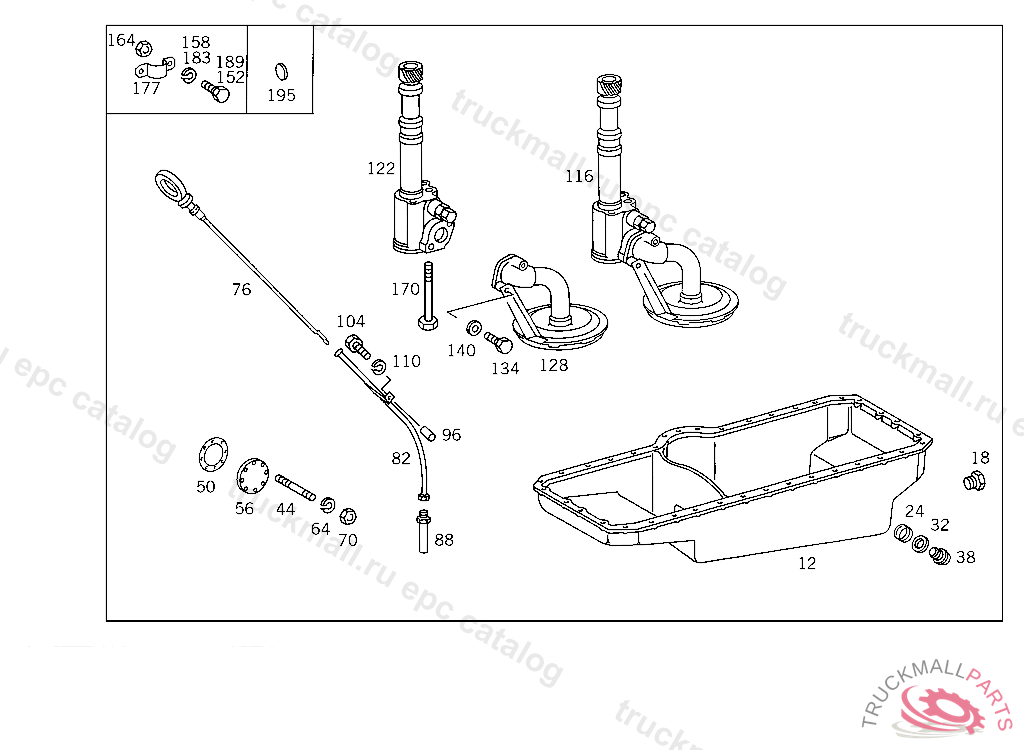

01 ENGINE HOUSING - 001 OIL PAN,OIL DIPSTICK,AND OIL PUMP

Поз.
Артикул
Описание
12
A3600102713
OIL PAN
12
A3600101213
OIL PAN
12
A3270100313
OIL PAN
12
A3600100513
OIL PAN
12
A3270102113
OIL PAN
18
N007604018109
SCREW PLUG
24
N900421008004
THREADED INSERT
24
N900421026000
THREADED INSERT REPAIR SIZE, TO BE ADAPTED DURING ASSEMBLY
32
N007603026104
SEAL RING AIR COMPRESSOR,CONNECTION: "10"
38
A4039970032
SCREW PLUG
44
N000939008012
STUD BOLT
50
A8460140580
GASKET COVER TO OIL PAN
56
A8460141905
COVER OIL PAN
64
N912004008102
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
70
N304032008006
NUT
70
N000934008010
NUT , Replaced By: N304032008006
76
A3600101272
OIL DIPSTICK
76
A3600102072
OIL DIPSTICK
76
A3600101372
OIL DIPSTICK
82
A3600100066
GUIDE TUBE
82
A3270100466
GUIDE TUBE
88
A3520184216
GUIDE TUBE
96
A3270180053
SPACER TUBE GUIDE TUBE TO CYLINDER CRANKCASE
104
N304017010027
HEXAGON HEAD BOLT BRACKET TO TRANSMISSION
110
N912004010102
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
116
A0271800101
OIL PUMP
122
A3271801401
OIL PUMP , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A3271800601
128
A3271800552
SUCTION PIPE
128
A0271800052
SUCTION PIPE
134
N304017008024
SCREW BRACKET TO EXHAUST PIPE BRACKET
134
N000933008177
SCREW , Replaced By: N304017008024
140
N000125008400
WASHER , 034 UP TO CHASSIS A 004589
152
N304017008016
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
152
N000933008212
SCREW , Replaced By: N304017008016
158
N912004008102
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
164
N304032008006
NUT
164
N000934008010
NUT , Replaced By: N304032008006
170
N000931008208
SCREW , Replaced By: N304014008021
170
N000931008249
SCREW BRACKET TO ALTERNATOR
170
N304014008021
HEXAGON HEAD BOLT. SCREW EXHAUST PIPE TO MUFFLER
177
A0261860045
CLAMP SUCTION PIPE TO BRACKET
183
N912004008102
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
189
N304017008021
SCREW PIPE CLAMP
189
N000933008147
SCREW , Replaced By: N304017008021
195
N000443013001
EXPANSION PLUG
999
A0270100072
OIL DIPSTICK
999
A0270102672
OIL DIPSTICK , Replaced By: A3600102072
999
A0271800001
OIL PUMP , UNTIL PRODUCTION STOP OM 327, Replaced By: A3271801401, +001A3601800752
999
A0271800040
BRACKET
999
A0271800252
SUCTION PIPE
999
A3270100166
GUIDE TUBE , Replaced By: A3600100066
999
A3270100572
OIL DIPSTICK , Replaced By: A3600101372
999
A3270101272
OIL DIPSTICK , Replaced By: A3600102172
999
A3271800601
OIL PUMP , Replaced By: A3271801601
999
A3271801152
SUCTION PIPE
999
A3271801301
OIL PUMP , Replaced By: A3271801401, +001A3601800852
999
A3271801601
OIL PUMP , Replaced By: A3271801401, +001A3601800252, +001A3601860080, +002N000931008086
999
A3271860084
SHIM SUCTION PIPE TO OIL PAN
999
A3469970030
SCREW PLUG , Replaced By: A4039970230
999
A3520100666
GUIDE TUBE , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE 036669, Replaced By: A3520102566
999
A3520102566
GUIDE TUBE , Replaced By: A3520184216
999
A3600100172
OIL DIPSTICK , Replaced By: A3600101272
999
A3600100213
OIL PAN , Replaced By: A3600100313, +001N007603018101, +001N007604018101
999
A3600100313
OIL PAN , Replaced By: A3600102713, +001A3600100140, +001A4030103166, +001A3600102872
999
A3600101113
OIL PAN , Replaced By: A3270100313
999
A3600102172
OIL DIPSTICK
999
A4039970230
SCREW PLUG
999
N007604018100
SCREW PLUG , Replaced By: N007604018101
