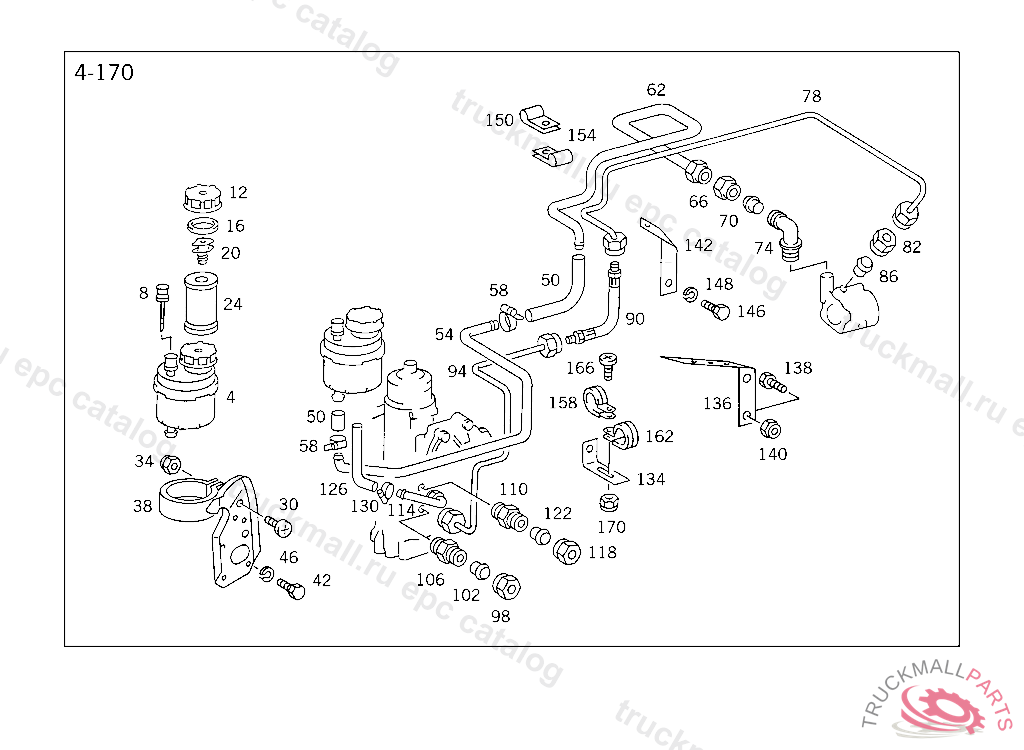

Поз.
Артикул
Описание
4
TANK OIL
8
OIL DIPSTICK
8
OIL DIPSTICK , Replaced By: A0004660867
12
FILLER CAP
16
SEAL RING
20
BRACKET
24
FILTER
30
SCREW OIL TANK TO BRACKET
34
NUT OIL TANK TO BRACKET
34
NUT , Replaced By: N913002006009
38
BRACKET OIL TANK
38
BRACKET OIL TANK
42
HEXAGON HEAD BOLT RUBBER MOUNTING TO SIDE MEMBER AND TO SUPPORT M10X20
42
SCREW , Replaced By: N304017010028
46
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
50
HOSE RETURN, FROM STEERING TO OIL TANK, ORDER BY THE METER
50
HOSE , Replaced By: A3859971582
54
LINE FROM OIL TANK TO POWER STEERING PUMP AT ENGINE
54
LINE , Replaced By: A0004291601
58
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
58
CLAMP , Replaced By: N000000000667
62
LINE FROM OIL TANK TO POWER STEERING PUMP AT ENGINE
62
LINE (SUCTION LINE),FROM OIL TANK TO PUMP,5 536570
66
UNION NUT LINE CONNECTION, Replaced By: N000000006243
70
SEAL CONE LINE CONNECTION
70
GLAND , Replaced By: A0019901267
74
FITTING SUCTION LINE TO OIL PUMP
78
LINE FROM PUMP TO HIGH PRESSURE HOSE
78
LINE FROM PUMP TO HIGH PRESSURE HOSE,5 536570
82
UNION NUT LINE CONNECTION, Replaced By: N000000006239
86
SEAL CONE LINE CONNECTION
86
GLAND , Replaced By: A0019901967
90
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
90
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
90
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
90
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
90
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
90
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
90
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
90
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
90
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
94
LINE (DELIVERY LINE) FROM HIGH PRESSURE HOSE TO FITTING
94
LINE , Replaced By: A0005516156
98
UNION NUT LINE CONNECTION, Replaced By: N000000006239
102
SEAL CONE LINE CONNECTION
102
GLAND , Replaced By: A0019901967
106
SCREW-IN FITTING DELIVERY LINE TO PUMP
110
SCREW-IN FITTING RETURN, FROM STEERING TO OIL TANK
114
LINE FROM STEERING TO OIL TANK
118
UNION NUT LINE CONNECTION
122
GLAND LINE CONNECTION
126
HOSE , NOT USED
126
HOSE , Replaced By: A3859971682
126
HOSE , Replaced By: A6999974082
130
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
130
CLAMP HOSE TO FITTING AND TO OIL TANK
134
BRACKET COMPRESSED AIR LINE TO FOUR-CIRCUIT PROTECTIVE VALVE,5 720506
142
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
142
BRACKET DELIVERY AND SUCTION LINES TO STEERING
146
SCREW END PIECE TO EXHAUST PIPE M 10X25
146
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
148
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
150
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
150
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
154
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
158
CLAMP DELIVERY AND SUCTION LINES TO FRAME
158
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
162
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
166
SCREW CLAMP MOUNTING M 6X16
166
SCREW , Replaced By: N000000001146
166
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
170
NUT PUMP TO BRACKET
170
NUT , Replaced By: N913004006001
999
PROTECTIVE CAP
999
BRACKET DELIVERY AND SUCTION LINES TO FRAME
999
BRACKET FUEL LINES TO TRANSMISSION
999
BRACKET AT FRAME
999
SCREW , Replaced By: N304017010002
999
SCREW BRACKET TO SIDE MEMBER
999
NUT STRAP TO BRACKET
999
NUT , Replaced By: N910113010000
