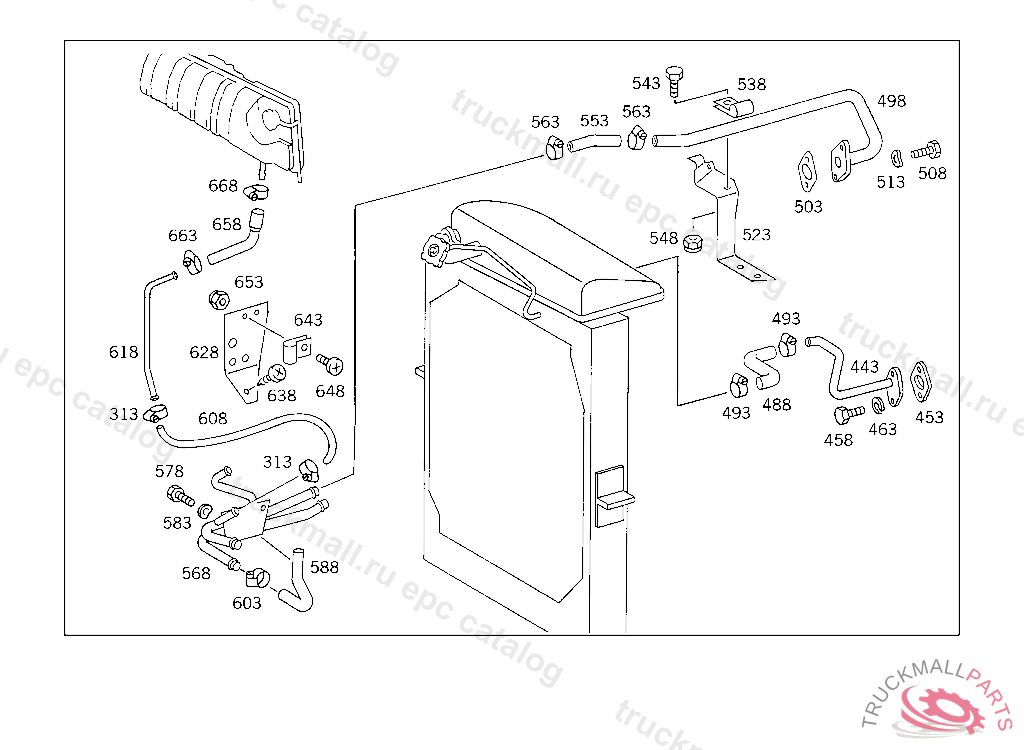

Поз.
Артикул
Описание
313
SCREW CLAMP MOUNTING M 6X16
313
SCREW , Replaced By: N000000001146
453
GASKET. SEAL DE-AERATION PIPE TO ENGINE
458
SCREW END PIECE TO EXHAUST PIPE M 10X25
463
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
488
HOSE BETWEEN DE-AERATION LINE AND EXPANSION TANK
493
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
493
CLAMP , Replaced By: N000000000667
498
LINE (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR,5 301948
498
LINE , NOT USED
498
LINE , NOT USED
503
GASKET HEATING PIPE TO ENGINE
508
SCREW PIPE CLAMP
508
SCREW , Replaced By: N304017008021
513
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
513
SPRING WASHER , Replaced By: N000137008212
538
CLAMP FEED LINE TO THERMOSTAT
538
CLAMP FEED LINE TO THERMOSTAT
538
CLAMP FEED LINE TO THERMOSTAT
543
SCREW COVER PLATE TO BRACKET
543
SCREW COVER PLATE TO BRACKET
543
SCREW COVER PLATE TO BRACKET
548
NUT PUMP TO BRACKET
548
NUT PUMP TO BRACKET
548
NUT PUMP TO BRACKET
548
NUT , Replaced By: N913004006001
553
HOSE FROM BUBBLE SEPARATOR TO HEATING PIPE 18X27 MM, ORDER BY THE METER
563
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
563
CLAMP , Replaced By: N000000000667
578
SCREW PUMP TO BRACKET
578
SCREW , Replaced By: N304017006016
603
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
603
CLAMP , Replaced By: N000000000667
608
HOSE DE-AERATION LINE, LENGTH AVAILABLE: 1000 MM
608
HOSE DE-AERATION LINE, LENGTH AVAILABLE: 1000 MM
608
HOSE DE-AERATION LINE, LENGTH AVAILABLE: 1000 MM
638
SHEET METAL SCREW COVER PLATE TO CAB REAR PANEL
643
CLAMP ,K 147121, Replaced By: N000000000319
643
CLAMP , Replaced By: N916016008200
643
CLAMP , Replaced By: A3604300143
648
SCREW CLAMP MOUNTING M 6X16
648
SCREW , Replaced By: N000000001146
653
NUT PUMP TO BRACKET
653
NUT , Replaced By: N913004006001
658
HOSE (DE-AERATION LINE) FROM RADIATOR TO EXPANSION TANK
658
HOSE , Replaced By: A6205012882
663
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
663
CLAMP , Replaced By: N916017011001
668
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
668
CLAMP , Replaced By: N000000000667
999
HOSE , Replaced By: A0020945482
999
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
