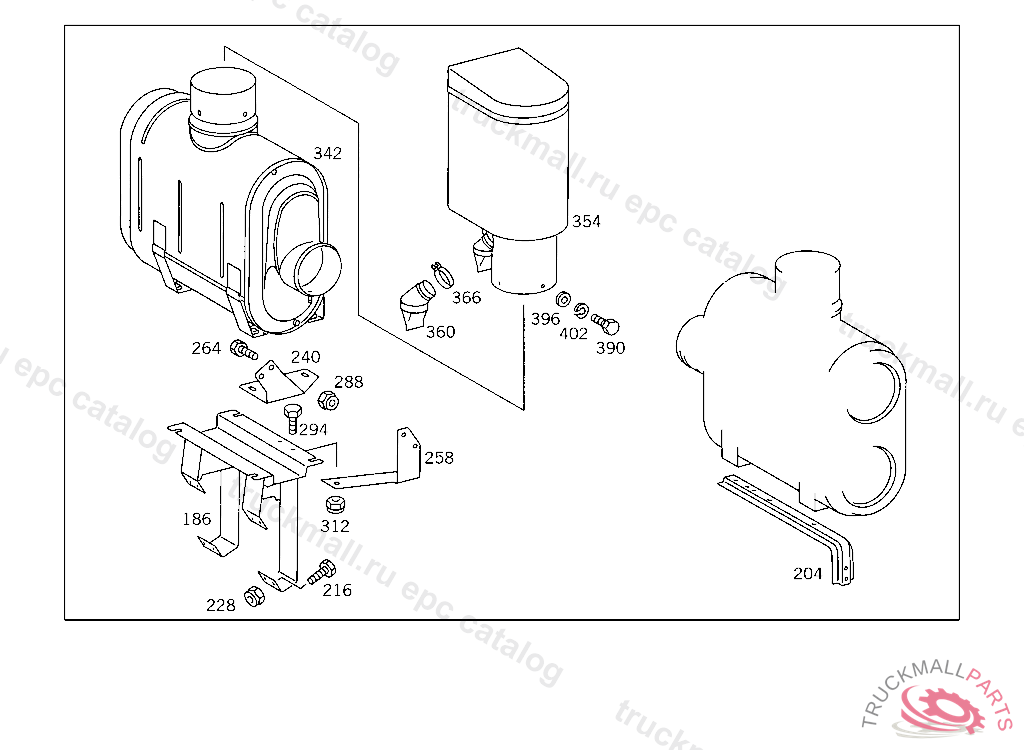

Поз.
Артикул
Описание
186
SUPPORT AIR CLEANER,RIGHT
204
SUPPORT AIR CLEANER
216
SCREW BRACKET TO SIDE MEMBER
216
SCREW , Replaced By: N304017008040
228
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
228
NUT , Replaced By: N913004008001
228
NUT PUMP TO BRACKET
228
NUT , Replaced By: N913004006001
240
BRACKET SUPPORT TO CONSOLE
258
REINFORCEMENT SUPPORT TO CONSOLE
264
HEXAGON HEAD BOLT. SCREW ENGINE MOUNTING TO SUPPORT,ON CLUTCH END M 14X30
264
SCREW , Replaced By: N308676014003
288
NUT STEERING SUPPORT TO FRAME
288
NUT STEERING SUPPORT TO FRAME
288
NUT STEERING SUPPORT TO FRAME
288
NUT , Replaced By: N910113014000
294
SCREW SUPPORT TO CROSS MEMBER M 10X28
312
NUT STRAP TO BRACKET
312
NUT , Replaced By: N910113010000
342
AIR CLEANER (TANDEM AIR CLEANER)
342
AIR CLEANERMANN +HUMMEL
354
AIR CLEANER CYCLONE
354
AIR CLEANER , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 715413, Replaced By: A4420900001
360
VALVE CYCLONE
366
CLAMP CYCLONE
390
SCREW EXHAUST PIPE TO BRACKET
390
SCREW PIPE CLAMP
390
SCREW , Replaced By: N304017008021
390
SCREW EXHAUST PIPE TO BRACKET
390
SCREW , Replaced By: A4609900601
396
WASHER EXHAUST MUFFLER TO STRAP
396
WASHER , Replaced By: N000125008443
402
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
999
RUBBER BUFFER SUPPORT TO BRACKET
999
RUBBER BUFFER SUPPORT TO STAY
999
BRACKET AIR CLEANER
999
SCREW BUFFER AND MOUNTING TO RAIL M 8X18
999
SCREW END PIECE TO EXHAUST PIPE M 10X25
999
SCREW , Replaced By: N308676012012
999
SCREW BRACKET TO CAB CONSOLE,K 035197
999
WASHER , Replaced By: N009021010209
999
WASHER BRACKET TO COVERING
999
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
999
NUT SUPPORT TO SIDE MEMBER
999
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
