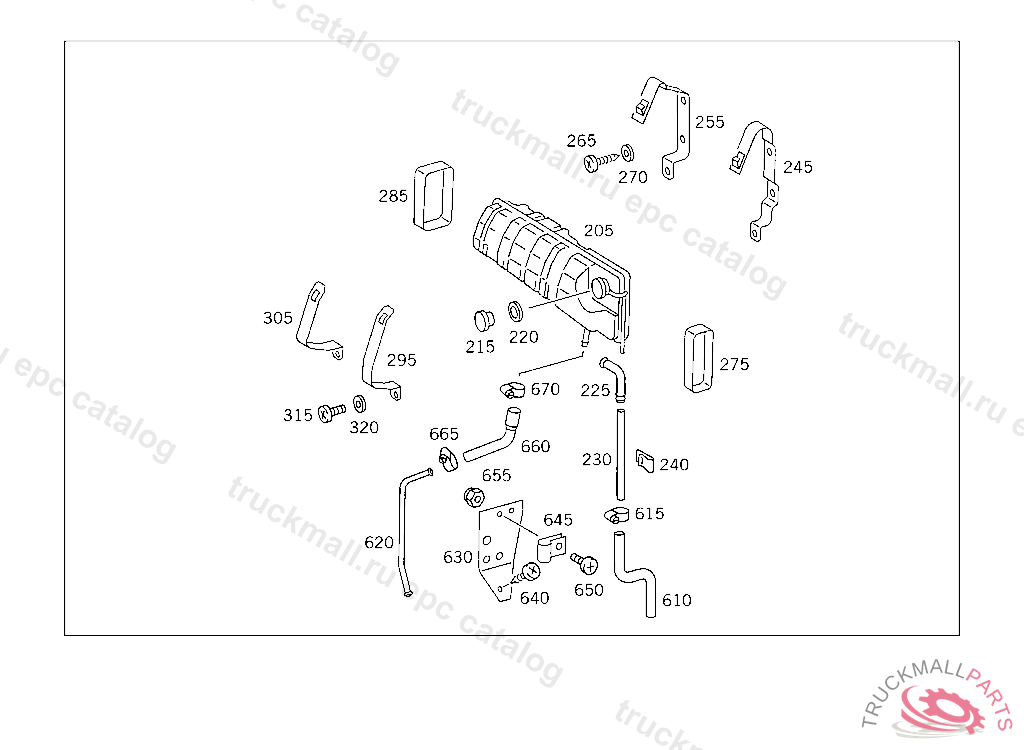

Поз.
Артикул
Описание
205
TANK (EXPANSION TANK)
215
RADIATOR CAP
220
GASKET O.D., 37 MM
225
DRAIN PIPE EXPANSION TANK
230
HOSE OVERFLOW
240
CLIP CABLE HARNESS TO ROOF RAIL
245
BRACKET EXPANSION TANK
255
BRACKET EXPANSION TANK
265
SHEET METAL SCREW COVER PLATE TO CAB REAR PANEL
270
WASHER COMPRESSED AIR LINE TO BRACKET
270
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
275
SHIM EXPANSION TANK TO BRACKET
285
SHIM EXPANSION TANK TO BRACKET
295
STRAP EXPANSION TANK TO BRACKET
305
STRAP EXPANSION TANK TO BRACKET
315
SCREW CLAMP MOUNTING M 6X16
315
SCREW , Replaced By: N000000001146
320
WASHER COMPRESSED AIR LINE TO BRACKET
320
WASHER , Replaced By: N009021006208
610
HOSE DE-AERATION LINE, LENGTH AVAILABLE: 1000 MM
610
HOSE DE-AERATION LINE, LENGTH AVAILABLE: 1000 MM
610
HOSE DE-AERATION LINE, LENGTH AVAILABLE: 1000 MM
615
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
615
CLAMP , Replaced By: N916017011001
620
BREATHER PIPE (DE-AERATION LINE) FROM RADIATOR TO EXPANSION TANK
630
BRACKET DE-AERATION LINE TO CAB
640
SHEET METAL SCREW COVER PLATE TO CAB REAR PANEL
645
CLAMP IDLING ADJUSTMENT WIRE CABLE,K 147121
645
CLAMP ,K 147121, Replaced By: N000000000319
645
CLAMP , Replaced By: N916016008200
645
CLAMP , Replaced By: A3604300143
650
SCREW CLAMP MOUNTING M 6X16
650
SCREW , Replaced By: N000000001146
655
NUT PUMP TO BRACKET
655
NUT , Replaced By: N913004006001
660
HOSE (DE-AERATION LINE) FROM RADIATOR TO EXPANSION TANK
665
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
665
CLAMP , Replaced By: N916017011001
670
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
670
CLAMP , Replaced By: N000000000667
999
SCREW PLUG , Replaced By: N007604014101
999
CONNECTOR , Replaced By: A6205010323
999
HOSE , Replaced By: A6205012882
999
HOSE , Replaced By: A6555011282
