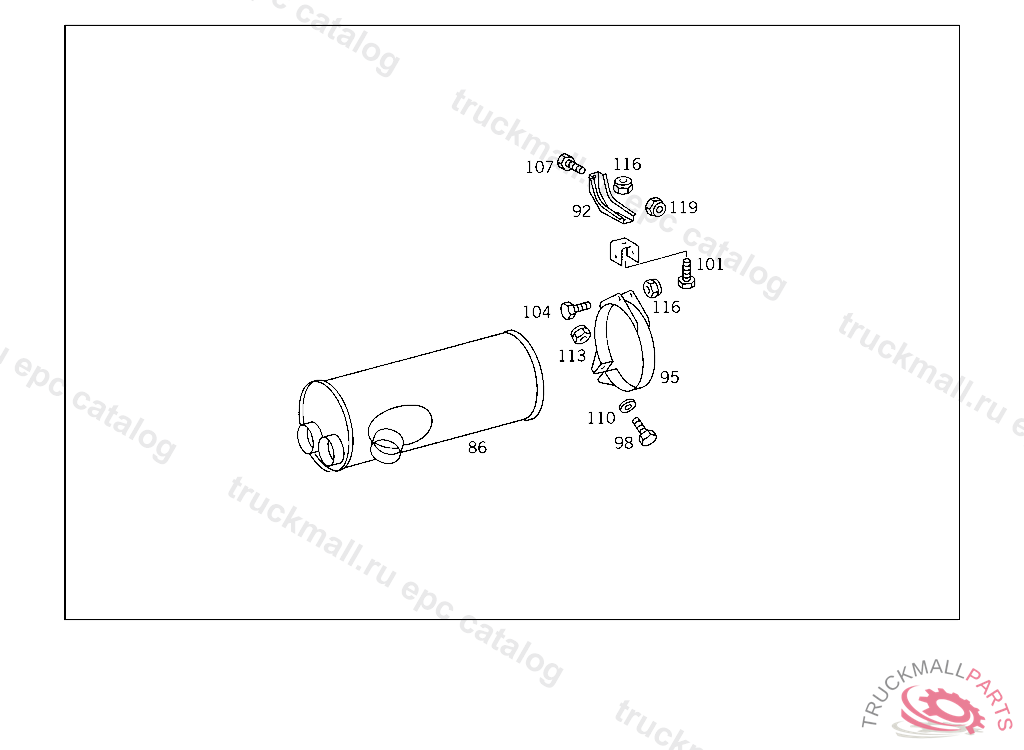

Поз.
Артикул
Описание
86
EXHAUST MUFFLER
92
CONSOLE REAR EXHAUST MUFFLER 132 MM
95
STRAP EXHAUST MUFFLER TO BRACKET
98
SCREW EXHAUST MUFFLER TO STRAP
101
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
104
SCREW STRAP TO BRACKET
107
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
107
SCREW , Replaced By: N308676012026
110
WASHER , Replaced By: N000125008443
110
WASHER EXHAUST MUFFLER TO STRAP
113
NUT , Replaced By: N913004008001
113
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
116
NUT STRAP TO BRACKET
116
NUT , Replaced By: N910113010000
119
NUT SUPPORT TO SIDE MEMBER
