Поз.
Артикул
Описание
11

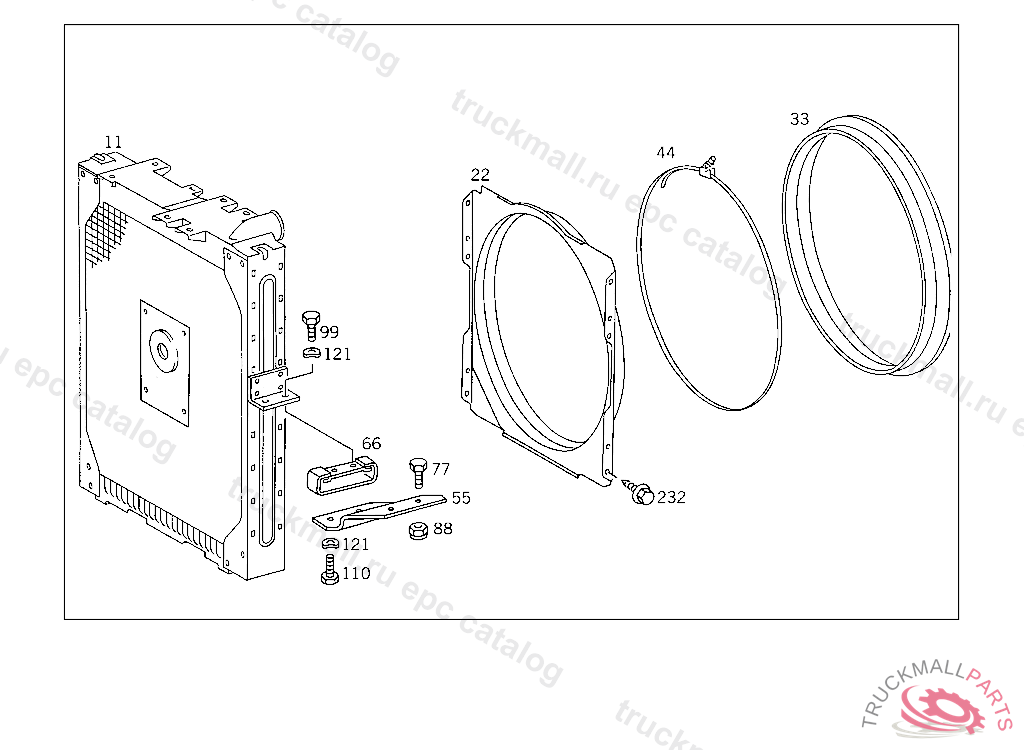

RADIATOR WATER BEHR
22
FAN SHROUD RADIATOR
22
FAN SHROUD
33
BOOT FAN SHROUD TO FAN RING
44
CLAMP FAN SHROUD TO FAN RING
55
SUPPORT RADIATOR,LEFT,K 096749
55
SUPPORT RADIATOR,LEFT,K 096750
66
RUBBER MOUNTING RADIATOR
77
SCREW CONSOLE TO SIDE MEMBER
88
NUT SUPPORT TO SIDE MEMBER
99
SCREW , Replaced By: N304017010043
99
SCREW BRACKET TO CONSOLE
110
SCREW , Replaced By: N304017010028
110
HEXAGON HEAD BOLT RUBBER MOUNTING TO SIDE MEMBER AND TO SUPPORT M10X20
121
SPRING WASHER STEERING COLUMN BRACKET TO CAB
232
SCREW DE-AERATION LINE TO RADIATOR
232
SCREW , Replaced By: A6739900032
999
BREATHER PIPE FROM ENGINE TO EXPANSION TANK
999
SUPPORT RADIATOR,LEFT,K 096750
999
SUPPORT RADIATOR,RIGHT,K 096750
999
BREATHER PIPE ENGINE BREATHING
999
LINE ,5 566229
999
HOSE ,5 566229
