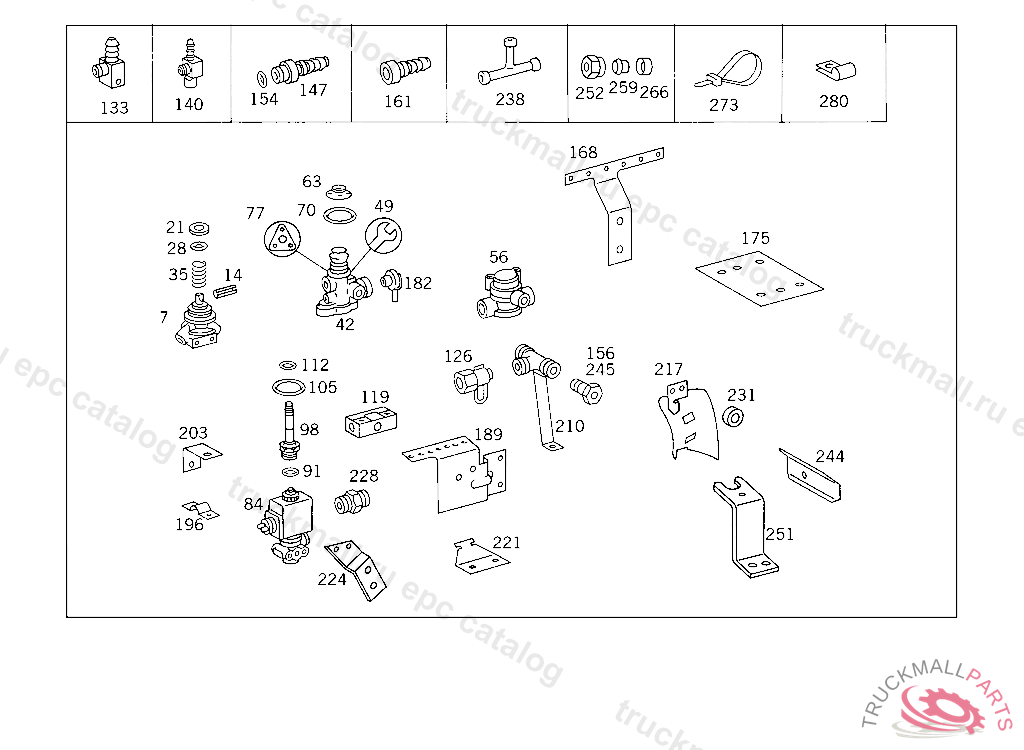

Поз.
Артикул
Описание
7
VALVE LONGITUDINAL DIFFERENTIAL LOCK CONTROL WABCO
7
VALVE LONGITUDINAL DIFFERENTIAL LOCK CONTROL BOSCH
14
CLAMPING SLEEVE TOP WABCO
21
SEAL RING TOP WABCO
28
SEAL RING INSIDE WABCO
35
SPRING INSIDE WABCO
42
VALVE 3/2-WAY, EXHAUST BRAKE CONTROL WABCO
42
VALVE 3/2-WAY, EXHAUST BRAKE CONTROL BOSCH
49
REPAIR KIT 3/2-WAY VALVE BOSCH
49
REPAIR KIT 3/2-WAY VALVE WABCO
56
VALVE (3/2-WAY SOLENOID VALVE)
56
VALVE (3/2-WAY SOLENOID VALVE) KNORR
56
VALVE (REDUCTION VALVE)
56
VALVE (3/2-WAY SOLENOID VALVE) WABCO
56
VALVE (3/2-WAY SOLENOID VALVE) EKS
56
VALVE , Replaced By: A0049975736
63
PROTECTIVE CAPWABCO
70
SEAL RINGWABCO
77
GASKET KITKNORR
84
VALVE (3/2-WAY SOLENOID VALVE) WABCO
91
SEAL RINGWABCO
98
VALVE PARTWABCO
105
SEAL RINGWABCO
112
SEAL RINGWABCO
119
VALVE SHUTTLE VALVE, REPAIR IMPOSSIBLE
126
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
133
CONNECTOR DISTRIBUTOR TO FRAME
133
CONNECTOR HOSE WIDTH, 9 MM,TO M22
133
CONNECTOR DISTRIBUTOR TO FRAME
133
CONNECTOR DISTRIBUTOR TO FRAME
133
CONNECTOR , Replaced By: A0019903978
140
CONNECTOR DISTRIBUTOR TO CAB
140
CONNECTOR DISTRIBUTOR TO CAB
140
CONNECTOR DISTRIBUTOR TO CAB
140
CONNECTOR DISTRIBUTOR TO CAB
140
CONNECTOR DISTRIBUTOR TO CAB
140
CONNECTOR DISTRIBUTOR TO CAB
147
CONNECTOR DISTRIBUTOR TO CAB
154
SEAL RING
156
ADAPTER FITTING LINE CONNECTION TO ENGINE
161
CONNECTOR HOSE WIDTH, / I.D., 6 MM
168
BRACKET CONNECTOR TO FRAME
175
BRACKET CONNECTOR TO FRAME
175
BRACKET 3/2-WAY SOLENOID VALVE
175
BRACKET , Replaced By: A6504312840
182
BREATHER , Replaced By: A3933280065
182
PIPE SOCKET COMPRESSED AIR PIPING TO 3/2-WAY VALVE
189
BRACKET 3/2-WAY SOLENOID VALVE
189
BRACKET 3/2-WAY SOLENOID VALVE
189
BRACKET 3/2-WAY SOLENOID VALVE
196
CLAMP 3/2-WAY SOLENOID VALVE
203
ANGLE LINE MOUNTING
210
BRACKET COMPRESSED AIR LINE TO INTAKE MANIFOLD, LEFT FRONT
217
BRACKET COMPRESSED AIR LINE TO ENGINE BEARING BRACKET
217
BRACKET COMPRESSED AIR LINE TO ENGINE BEARING BRACKET
217
BRACKET COMPRESSED AIR LINE TO ENGINE BEARING BRACKET
217
BRACKET , Replaced By: A6154200086
221
BRACKET COMPRESSED AIR LINE TO ENGINE BEARING BRACKET
224
BRACKET CONNECTOR TO FRAME
224
BRACKET 3/2-WAY SOLENOID VALVE
224
BRACKET , Replaced By: A6504312840
228
FITTING FROM 3/2-WAY VALVE TO PRESSURE CONTROL VALVE
231
WASHER BRACKET TO LEFT SIDE MEMBER
238
T-FITTING EXHAUST BRAKE LINE CONNECTION
238
ELBOW FITTING. T-FITTING LINE CONNECTION TO ENGINE TO M16
244
COVERING EXHAUST PIPE
245
ADAPTER FITTING LINE CONNECTION TO ENGINE
251
BRACKET HEAT SHIELD MOUNTING
252
UNION NUT LINE CONNECTION
259
GLAND LINE CONNECTION
266
SLEEVE LINE CONNECTION
273
LOOM TIE LINE MOUNTING 280 MM
273
LOOM TIE LINE MOUNTING
280
CLAMP LINE MOUNTING
280
CLAMP LINE MOUNTING
999
T-FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
999
T-FITTING LINE CONNECTION
999
REPAIR KIT 3/2-WAY SOLENOID VALVE
999
LOOM TIE BRAKE LINE MOUNTING
999
BRACKET SHUTTLE VALVE
999
PROTECTIVE PLATE HEAT SHIELD, PLASTIC LINES,K 012509K 142857
999
PROTECTIVE PLATE HEAT SHIELD, PLASTIC LINES,K 122858 TO BE ADAPTED DURING ASSEMBLY
999
BRACKET SHUTTLE VALVE,K 016929
999
BRACKET ,K 012509K 142857
999
BRACKET AT BELL HOUSING, TO BE ADAPTED DURING ASSEMBLY
999
BREATHER PIPE PARKING BRAKE VALVE,CONNECTION: "30", Replaced By: A6554310273
999
BREATHER PIPE PARKING BRAKE VALVE,CONNECTION: "30"
999
BRACKET RELAY VALVE,5 559704
999
NUT LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
