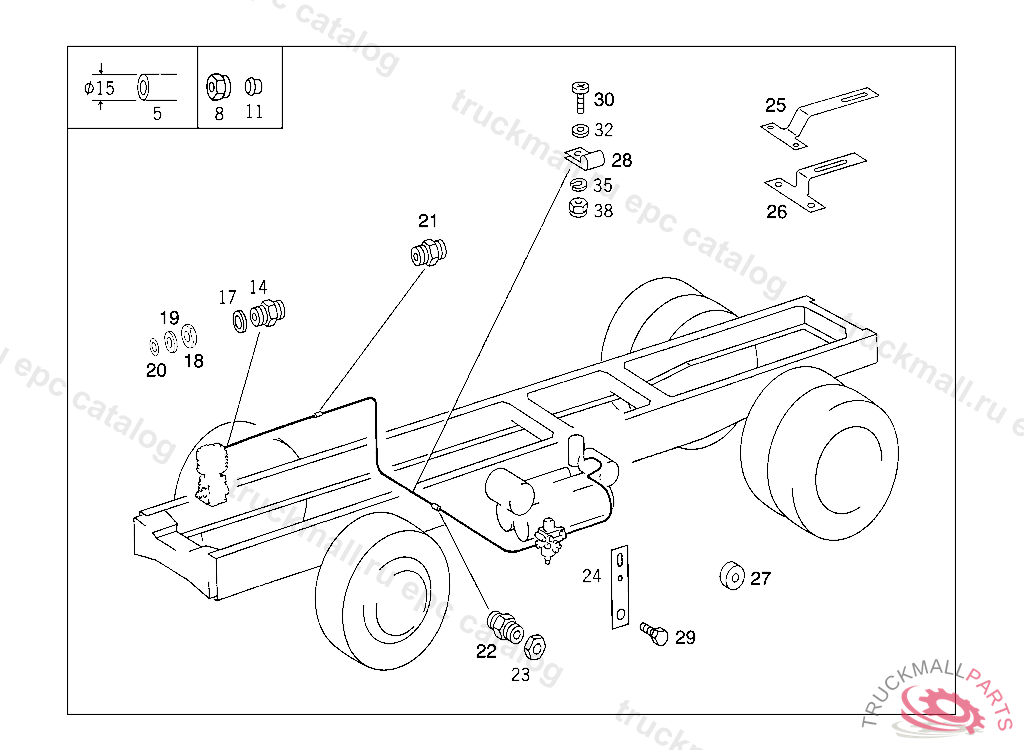

Поз.
Артикул
Описание
5
LINE AIR COMPRESSOR,PRESSURE REGULATOR, DEHYDRATOR 15X1.5 MM, LENGTH AVAILABLE: 3000 MM
8
UNION NUT LINE CONNECTION
11
GLAND LINE CONNECTION
14
FITTING ENGINE AIR COMPRESSOR,CONNECTION: "20"
17
SEAL RING AIR COMPRESSOR,CONNECTION: "10"
21
CONNECTION FITTING ENGINE AIR COMPRESSOR,CONNECTION: "15"
22
BULKHEAD FITTING THROUGH SIDE MEMBER
23
NUT CHECK VALVE TO AIR RESERVOIR
28
CLAMP DELIVERY AND SUCTION LINES TO STEERING
28
CLAMP , Replaced By: A6739950001
30
SCREW , Replaced By: N000000001146
30
SCREW CLAMP TO BRACKET M 6X14
30
SCREW CLAMP MOUNTING M 6X16
32
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
32
WASHER COMPRESSED AIR LINE TO BRACKET
35
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
38
NUT , Replaced By: N913004006001
38
NUT PUMP TO BRACKET
