Поз.
Артикул
Описание

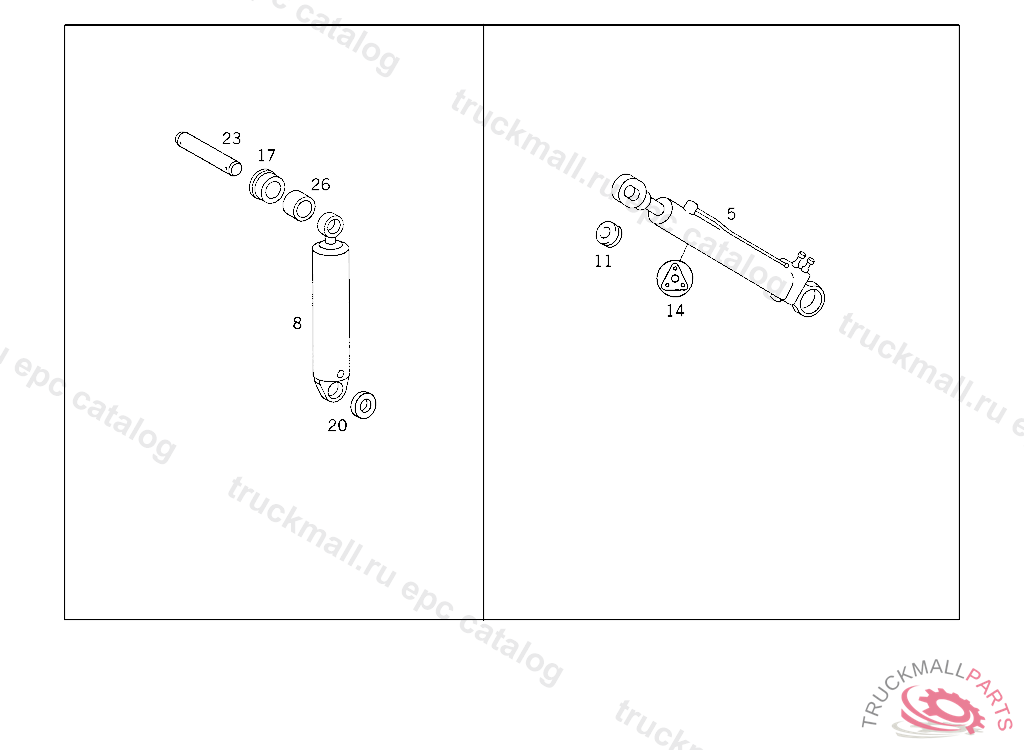

5
CYLINDER HYDRAULIC SYSTEM USED FOR CAB TILTING POWER PACKER
8
CYLINDER HYDRAULIC CYLINDER,K 301549
11
GUIDEWEBER,TO 001 553 45 05
14
GASKET KIT HYDRAULIC CYLINDER POWER PACKER
17
BUSHING HYDRAULIC CYLINDER TO BEARING BRACKET
20
WASHER HYDRAULIC CYLINDER TO CAB
23
PIN CYLINDER TO LEVER
26
SPACER TUBE CYLINDER TO LEVER
999
SEAL CONE
999
HOSE FROM HAND PUMP TO HYDRAULIC CYLINDER
999
PIPE LINE HYDRAULIC SYSTEM USED FOR CAB TILTING, LENGTH AVAILABLE: 3000 MM
999
SPACER TUBE SHOCK ABSORBER TO CONSOLE
999
BASE BEARING BRACKET TO CONSOLE
999
HOSE , Replaced By: A6555530582
999
HOSE FROM HAND PUMP TO HYDRAULIC CYLINDER
999
HOSE CAB LOCKING MECHANISM
999
SHIM PEDESTAL
999
SHIM PEDESTAL
999
BRACKET HYDRAULIC PUMP
999
GLAND , Replaced By: A0019901667
999
UNION NUT
