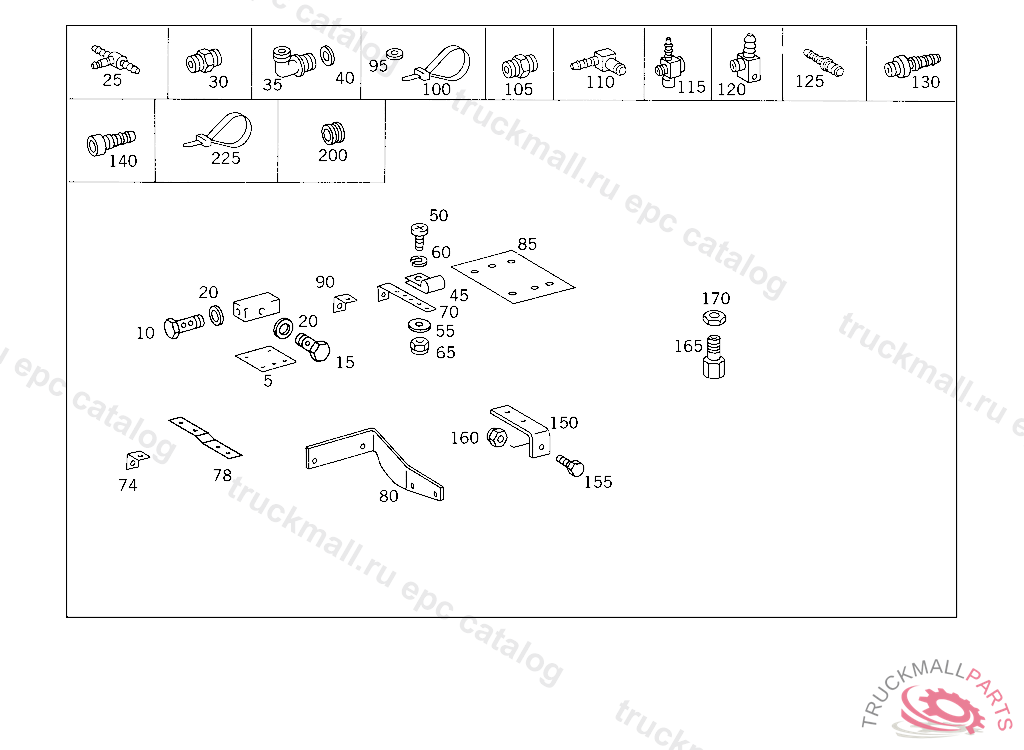

Поз.
Артикул
Описание
5
BRACKET 3/2-WAY SOLENOID VALVE
5
BRACKET SHUTTLE VALVE,CONNECTIONS: "11,12,20"
10
HOLLOW SCREW TWO-WAY VALVE,CONNECTIONS: "11,12"
15
HOLLOW SCREW FUEL LINE TO FEED PUMP
15
HOLLOW SCREW , Replaced By: N915036010108
20
SEAL RING FUEL LINE TO FEED PUMP
25
T-FITTING EXHAUST BRAKE LINE CONNECTION
25
T-FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
30
CONNECTION FITTING ENGINE AIR COMPRESSOR,CONNECTION: "15"
35
ELBOW FITTING , Replaced By: A0039901671
35
ELBOW FITTING ENGINE AIR COMPRESSOR,CONNECTION: "20", Replaced By: A6209900071
40
THRUST RING SUCTION LINE TO OIL PUMP
45
CLAMP LINE MOUNTING
45
CLAMP LINE MOUNTING
45
CLAMP DELIVERY AND SUCTION LINES TO STEERING
45
CLAMP 3/2-WAY SOLENOID VALVE
50
SCREW , Replaced By: N000000001146
50
SCREW CLAMP MOUNTING M 6X16
55
WASHER COMPRESSED AIR LINE TO BRACKET
55
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
60
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
65
NUT PUMP TO BRACKET
65
NUT , Replaced By: N913004006001
70
BRACKET LINE MOUNTING
70
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
74
BRACKET BRACKET TO CROSS MEMBER
78
BRACKET COMPRESSED AIR LINES,K 168169
80
BRACKET PRESSURE REGULATOR
85
BRACKET , Replaced By: A6504312840
85
BRACKET CONNECTOR TO FRAME
90
ANGLE LINE MOUNTING
95
WASHER BRACKET TO LEFT SIDE MEMBER
100
LOOM TIE BRAKE LINE MOUNTING
105
FITTING FROM 3/2-WAY VALVE TO PRESSURE CONTROL VALVE
110
ELBOW FITTING HOSE WIDTH, 6 MM,TO M22
110
ELBOW FITTING , Replaced By: A0039901671
110
ELBOW FITTING , Replaced By: A0049905371
110
ELBOW FITTING ENGINE AIR COMPRESSOR,CONNECTION: "20", Replaced By: A6209900071
115
CONNECTOR DISTRIBUTOR TO CAB
115
CONNECTOR DISTRIBUTOR TO CAB
120
CONNECTOR HOSE WIDTH, 9 MM,TO M22
125
CONNECTOR HOSE WIDTH, 9 MM,TO M 22
130
CONNECTOR DISTRIBUTOR TO CAB
130
CONNECTOR DISTRIBUTOR TO CAB
130
CONNECTOR DISTRIBUTOR TO CAB
140
CONNECTOR DISTRIBUTOR TO FRAME
140
CONNECTOR HOSE WIDTH, / I.D., 6 MM
150
BRACKET OIL LINE MOUNTING
155
SCREW BRACKET TO CAB MOUNTING CONSOLE
160
NUT , Replaced By: N910113014000
160
NUT STEERING SUPPORT TO FRAME
165
BULKHEAD FITTING THROUGH SIDE MEMBER
170
NUT SUCTION LINE TO OIL PUMP
170
NUT CHECK VALVE TO AIR RESERVOIR
200
SEAL RING LINE CONNECTION
225
LOOM TIE LINE MOUNTING
225
LOOM TIE LINE MOUNTING 280 MM
999
ADAPTER FITTING LINE CONNECTION TO ENGINE
999
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
999
SCREW. UNION SCREW LINE CONNECTION
999
CLAMP , Replaced By: A6739950001
999
SUPPORT TWO-CIRCUIT BRAKE LINE COUPLING
999
BRACKET LEFT SIDE MEMBER,FRONT
999
BRACKET BRACKET TO BRACKET,K 012508
999
BRACKET BRACKET TO BRACKET,K 012508
999
ANGLE SUPPORT,LEFT
999
ANGLE SUPPORT,RIGHT
999
COVERING EXHAUST PIPE
999
BRACKET TWIN OIL FILTER FLANGE,FRONT
999
BRACKET HEAT SHIELD MOUNTING
999
BRACKET (T-FITTING) EXHAUST BRAKE LINE CONNECTION,5 908244K 012508
999
REPAIR KIT. TS SEALING RING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22
999
SCREW , Replaced By: N304017008021
999
NUT BRACKET TO SIDE MEMBER
999
SCREW PIPE CLAMP
