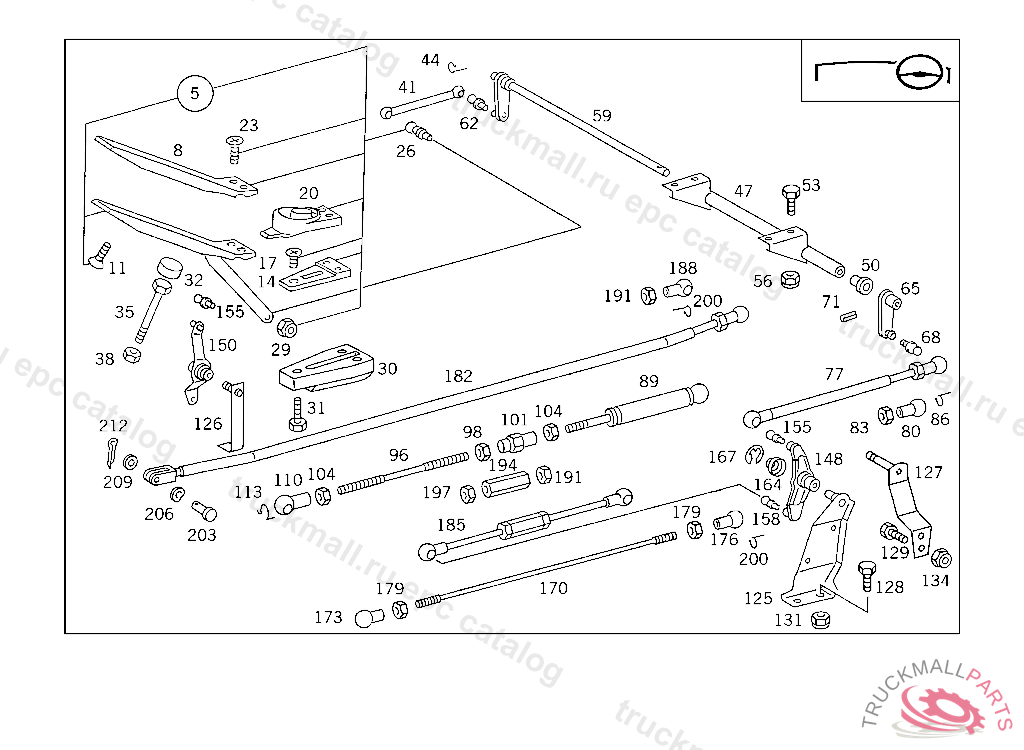

Поз.
Артикул
Описание
5
ACCELERATOR PEDAL (PARTS KIT), RANGE OF DELIVERY INCLUDES: 1X 655 301 00 93, 3X 000965 006077
8
PAD ACCELERATOR PEDAL
11
SCREW ACCELERATOR PEDAL
14
SHIM ACCELERATOR PEDAL
17
SCREW ACCELERATOR PEDAL TO CAB M 6X20
20
BOOT ACCELERATOR PEDAL
23
SCREW ACCELERATOR PEDAL TO CAB M 6X25
26
BALL PIVOT LOAD SENSOR
29
NUT , Replaced By: N913004006001
29
NUT PUMP TO BRACKET
30
GUIDE RAIL ACCELERATOR PEDAL TO FLOOR PLATE
31
SCREW GUIDE RAIL RETROFIT M 6X35, BORE THREADED HOLES IN CAB FLOOR TO 6.5MM
32
STOP ACCELERATOR PEDAL
35
SCREW VALVE TO BRACKET, Replaced By: N304014008002
35
SCREW VALVE TO BRACKET
38
NUT
38
NUT BATTERY MOUNTING
41
BALL SOCKET ROD TO ACCELERATOR PEDAL
44
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
47
BEARING TUBE CONTROL SHAFT
50
BUSHING INTERMEDIATE LEVER TO BEARING BRACKET,5 943507
53
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
53
SCREW , Replaced By: N304017008016
56
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
56
NUT , Replaced By: N913004008001
56
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
59
SHAFT (CONTROL SHAFT)
62
BALL PIVOT
65
LEVER (CONTROL LEVER)
68
BALL PIVOT
71
CLAMPING PIN CONTROL LEVER TO CONTROL SHAFT, TO BE ADAPTED DURING ASSEMBLY
71
CLAMPING SLEEVE , Replaced By: N308752004001
80
BALL SOCKET PULL ROD TO LEVER
83
NUT BALL PIVOT TO LEVER
86
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
89
ROD FROM ACCELERATOR PEDAL TO CONTROL SHAFT BEARING
89
ROD , Replaced By: A6583001715
96
PULL ROD FROM CONTROL SHAFT BEARING TO INTERMEDIATE LEVER 400 MM, TO BE ADAPTED DURING ASSEMBLY
98
NUT L.H. THREAD
101
TURNBUCKLE TURNBUCKLE
104
NUT BALL PIVOT TO LEVER
110
BALL SOCKET PULL ROD TO INTERMEDIATE LEVER
113
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
126
BEARING BRACKET INTERMEDIATE LEVER
128
SCREW END PIECE TO EXHAUST PIPE M 10X25
131
NUT STRAP TO BRACKET
150
LEVER (INTERMEDIATE LEVER)
155
BALL STUD. BALL PIVOT TOP B10X4,5 MM
158
BALL PIVOT BOTTOM B13X5 MM
164
COVERING INTERMEDIATE BEARING
167
LOCK PLATE INTERMEDIATE BEARING
170
PULL ROD FROM INTERMEDIATE LEVER TO ENGINE CONTROL SHAFT, TO BE ADAPTED DURING ASSEMBLY
173
BALL SOCKET ROD TO BALL PIVOT
176
BALL SOCKET ROD TO BALL PIVOT
179
NUT
182
ROD FROM INTERMEDIATE LEVER TO ENGINE
188
BALL SOCKET ROD TO BALL PIVOT
191
NUT
200
SECURING CLIP. CIRCLIP
203
PIN ROD TO LEVER
206
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
206
SPRING WASHER , Replaced By: N000137008212
209
WASHER BRACKET TO CROSS MEMBER
212
COTTER PIN CONNECTOR TO BRAKE PRESSURE REGULATOR LEVER
