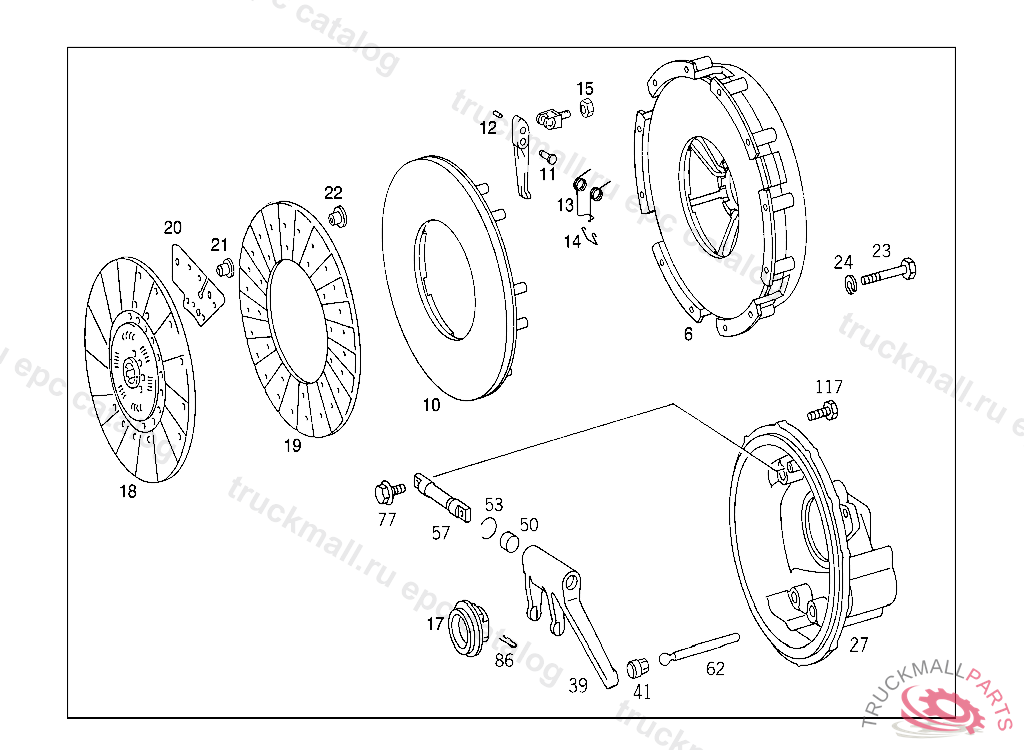

Поз.
Артикул
Описание
6
CLUTCH PRESSURE PLATE , COMPONENT PARTS NOT AVAILABLE
6
CLUTCH PRESSURE PLATE , PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
10
PRESSURE PLATE
11
SPINDLE THIGH SPRING SUSPENDED IN CLUTCH PRESSURE PLATE HOUSING,K 062600
12
ROLLER FOR BEDDING THE LEVERS IN BRACKETS
13
SPRING SUSPENDED BELOW LEAF SPRING
13
SPRING SUSPENDED IN CLUTCH PRESSURE PLATE HOUSING
13
SPRING SUSPENDED IN CLUTCH PRESSURE PLATE HOUSING
13
SPRING SUSPENDED BELOW LEAF SPRING
14
CLAMP RELEASE FLANGE TO RELEASE LEVER
15
NUT FOR BRACKETS
17
RELEASE BEARING
17
RELEASE BEARING
18
CLUTCH DISC ASBESTOS-FREE LINING, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
18
CLUTCH DISC ASBESTOS-FREE LINING, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
18
CLUTCH DISC ASBESTOS-FREE LINING
18
CLUTCH DISC , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART, Replaced By: A0082500803
19
CLUTCH LINING ASBESTOS-FREE
19
CLUTCH LINING ASBESTOS-FREE
20
LEAF SPRING
20
LEAF SPRING
21
RIVET LEAF SPRING TO CLUTCH DISC
22
RIVET LINING WITH INTERMEDIATE SPRING,5 563495
22
RIVET LINING WITH CLUTCH DISC,5 563495
23
SCREW , Replaced By: N304017008053
23
HEXAGON HEAD BOLT. SCREW CLUTCH TO FLYWHEEL
23
SCREW CLUTCH TO FLYWHEEL
24
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
27
BELL HOUSING ,K 062276
39
RELEASE LEVER
41
BEARING TOP
50
BUSHING FRONT AND REAR
53
SNAP RING FRONT AND REAR
57
SPINDLE RELEASE LEVER
62
PIN RELEASE LEVER,K 062276
62
PIN RELEASE LEVER
77
SCREW RELEASE LEVER TO BELL HOUSING
86
SPRING RELEASE LEVER TO RELEASE BEARING
117
SCREW REAR EXHAUST PIPE TO MUFFLER
999
LOCK WASHER BRACKET TO STEERING COLUMN END
999
SCREW BATTERY CABLE MOUNTING AND MAIN CABLE HARNESS MOUNTING
999
LOCK PLATE RELEASE LEVER TO SHAFT
999
COTTER PIN
999
RELEASE LEVER CLUTCH ACTUATION
999
PRESSURE SPRING SPRING STEEL WIRE DIA., 4.00 MM
999
PRESSURE SPRING SPRING STEEL WIRE DIA., 3.75 MM
999
LEAF SPRING THIGH SPRING SUSPENDED BELOW LEAF SPRING
999
SPINDLE FOR BEDDING THE LEVERS IN BRACKETS
999
FLANGE
999
LOCK FOR BRACKETS
999
SPINDLE FOR BEDDING THE LEVERS IN CLUTCH PRESSURE PLATE
999
BRACKET RELEASE LEVER
