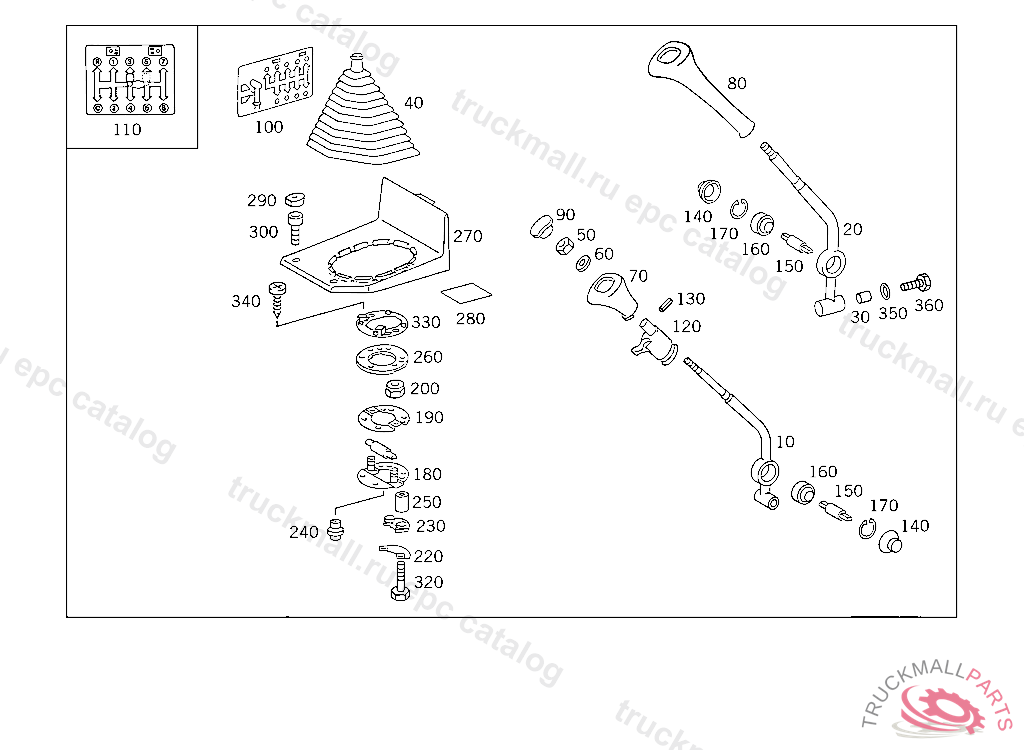

Поз.
Артикул
Описание
10
SHIFT LEVER
10
SHIFT LEVER ,K 131522
10
SHIFT LEVER
10
SHIFT LEVER ,K 131522K 142857
20
SHIFT LEVER ,K 131522
20
SHIFT LEVER
20
SHIFT LEVER
30
BUSHING PAWL TO ROD END,5 443047
40
BOOT SHIFT LEVER
40
BOOT SHIFT LEVER
50
NUT , Replaced By: N308673010000
50
NUT SHIFT LEVER HANDLE TO SHIFT LEVER
60
WASHER RADIATOR TO RUBBER MOUNTING
60
WASHER , Replaced By: N000125010532
70
HANDLE (SHIFT LEVER HANDLE)
80
KNOB (SHIFT LEVER HANDLE), TO BE ADAPTED DURING ASSEMBLY
90
COVER SHIFT LEVER KNOB LESS GEARSHIFT DIAGRAM
100
GUMMED LABEL , Replaced By: A9415842238
100
GUMMED LABEL EIGHT-SPEED,ASHTRAY
110
GUMMED LABEL NINE-SPEED,ASHTRAY,5 032516
120
VALVE GEARSHIFT LEVER LOWER PART WABCO
120
VALVE SHIFT LEVER HERION
130
CLAMPING SLEEVE (SHIFT LEVER VALVE)
140
BOOT SHIFT LEVER BEARING
150
PIN SHIFT LEVER BEARING,K040603
160
JOINT BEARING SHIFT LEVER BEARING,K040603
160
JOINT BEARING SHIFT LEVER BEARING,K040603
170
LOCK RING SHIFT LEVER BEARING
180
BRACKET SHIFT LEVER LOWER PART,K040603
190
BRACKET SHIFT LEVER UPPER PART,K040603
200
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
200
NUT , Replaced By: N913004008001
220
BRACKET SHIFT LEVER BEARING TO CAB FLOOR
230
RUBBER PAD SHIFT LEVER BEARING TO CAB FLOOR
240
BUSHING SHIFT LEVER BEARING TO CAB FLOOR
250
TUBE. BUSHING CAB FLOOR COVERING
260
RUBBER PAD SHIFT LEVER TO CAB FLOOR,K040603
270
COVERING BOOT TO CAB
270
COVERING BOOT TO CAB
280
INSULATION CAB/TRANSMISSION COMPRESSED-AIR-LINE SEPARATION POINT
290
COVER COVERING TO CAB
300
SCREWM 6X16
300
SCREW , Replaced By: A1249900520
320
SCREW , Replaced By: N304017006018
320
SCREW COVER PLATE TO COVER PLATE M 6 X 12
330
BRACKET SHIFT LEVER BEARING TO CAB FLOOR
340
SHEET METAL SCREW BRACKET TO CAB
350
SEAL RING LEVER BEARING
360
SCREW SHIFTING ROD TO SHIFT LEVER
999
SHIFT MECHANISM ELECTROPNEUMATIC POWER SHIFT, 625.101,652-654 5 954065 625.120,655-659 5 957780
999
HANDLE TRANSFER CASE ACTUATION
999
SHIFTING ROD (TELESCOPIC SHIFTING ROD)
999
SHIFTING ROD (TELESCOPIC TUBE)
999
PULL ROD SHIFTING TRANSFER,K 131522
999
PULL ROD SHIFTING TRANSFER,K 131522
999
LEVER SHIFTING TRANSFER
999
LEVER AT BRACKET
999
LEVER , Replaced By: A6522602537
999
SHIFTING ROD
999
SHIFTING ROD , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A6522606633
999
BRACKET LEVER,K 131522
999
BRACKET SHIFT MECHANISM
999
COVER COVERING
999
COVERING SHIFT LEVER, TO BE ADAPTED DURING ASSEMBLY
999
SPRING RETAINER EMERGENCY SWITCH ACTUATION, 625.101,652-654 5 954065 625.120,655-659 5 957780
999
COVERING SHIFT LEVER, TO BE ADAPTED DURING ASSEMBLY
999
SHIM SHIFT MECHANISM AND BRACKET TO CAB FLOOR
999
SPRING RETAINER EMERGENCY SWITCH ACTUATION, 625.101,652-654 5 954065 625.120,655-659 5 957780
999
BRACKET SHIFT LEVER BEARING TO CAB FLOOR
999
SPRING EMERGENCY SWITCH ACTUATION, 625.101,652-654 5 954065 625.120,655-659 5 957780
999
SCREW FRONT SHIFTING ROD TO REAR SHIFTING ROD
